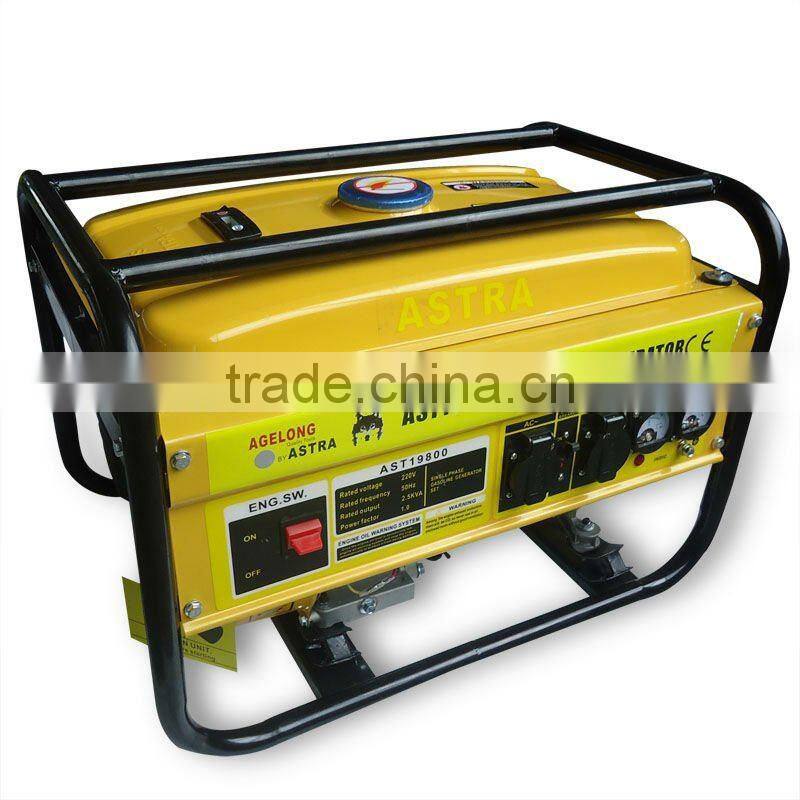

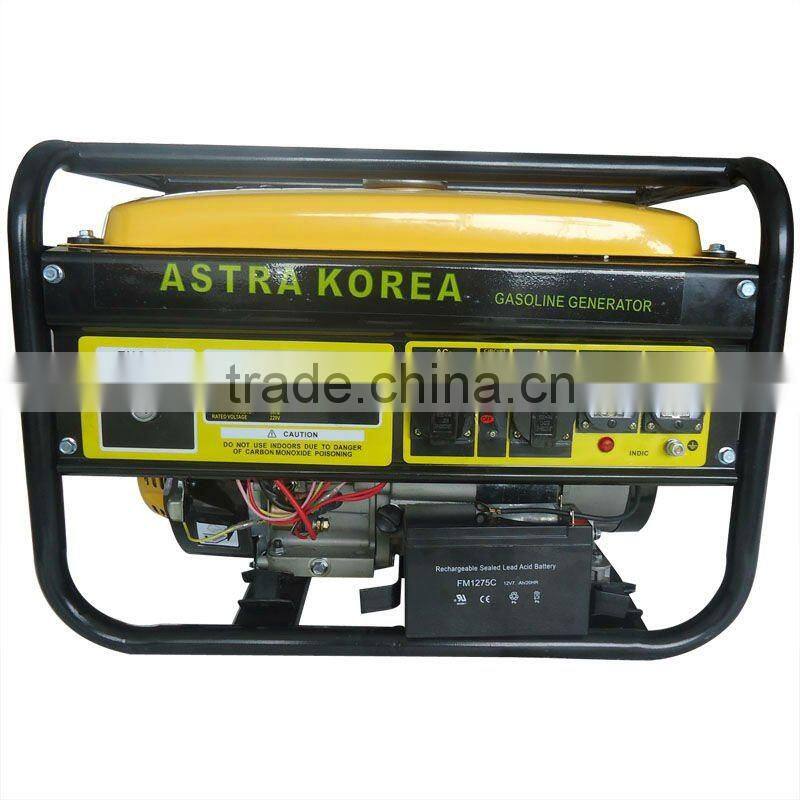

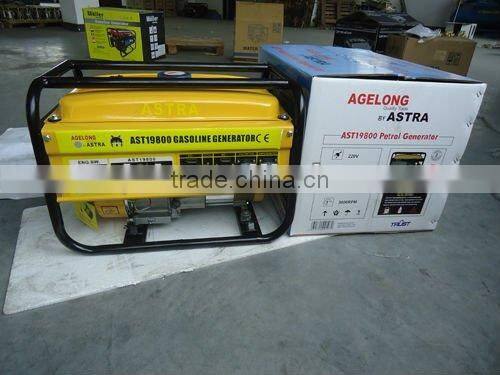

Astra Korea Gasoline Generator /Honda Generator
Specifications
Gasoline generator (ASTRA KOREA)AST19800 WINPLUS HIGH QUALITY BY ASTRA KOREA
Features Benefits
Air-cooled Four Stroke OHV

AST19800 WINPLUS HIGH QUALITY BY ASTRA KOREA
Features Benefits
Air-cooled Four Stroke OHV Gasoline Engine
generators adopt advanced technology in design. Adopt brushless, capacitance adjusting the voltage device. Provide stable voltage, avoid the job of boring maintain and change the carbon brush. DC output and double voltage output will be supported on request.
| Generator | Rating frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 | |
| Rating Voltage(V) | 110/120/220/230/240 | |||||||
| Rating power(KVA) | 2.0 | 2.2 | 2.3 | 2.5 | 2.5 | 2.7 | ||
| The Max.power(KVA) | 2.2 | 2.5 | 2.5 | 2.7 | 2.7 | 2.9 | ||
| Power factor(cos) | 1.0 | |||||||
| Engine | Type | 168F | 168F-1 | 168F-1 | ||||
| Category | Single crock,Force air-cooled four-stroke,top-installed gasoline engine | |||||||
| Exclusion of cylinder(cm3) | 163 | 196 | 196 | |||||
| The Max.output power(KW/rpm) | 4.8/3600 | 5.7/3600 | 5.7/3600 | |||||
| Ignition system | Transistorized magneto | |||||||
| Start system | Recoil/E-start | |||||||
| Capacity of fuel tank(L) | 15 | 15 | 15 | |||||
| Consumption of fuel(L/h) | 1.13 | 1.32 | 1.32 | |||||
| Consecutive Working(h) | 13 | 11 | 11 | |||||
| Noise(at7m)(dB) | 65 | 65 | 65 | |||||
| Capacity of engine oil | 0.6 | 0.6 | 0.6 | |||||
| Dimension | Set dimension(mm3) | 610*435*450 | ||||||
| Net weight(kg) | 39 | 40 | 41 | |||||
| Standard Equipment | Large capacity fuel tank,large capacity muffler,fuel gauge,voltmeter,AVR,oil alert,Ac circuit breaker | |||||||
Honda engine drawing and CE certificated
