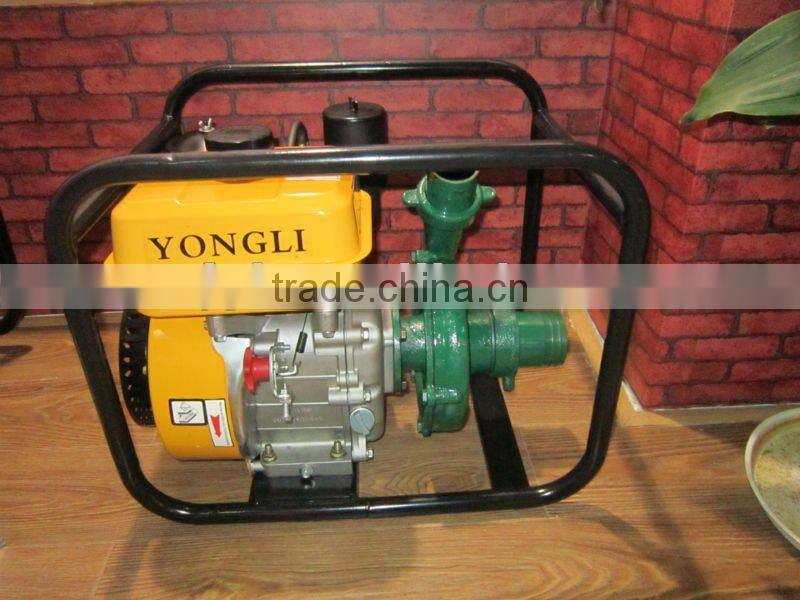

Cast Iron Water Pump

Zhejiang Yongli Machinery Co., Ltd.
Cast Iron Water Pump thumbnail-1
Cast Iron Water Pump photo-1
US$ 50 - 200 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YOLEE
Model Number:
YL-DWP80B
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name YOLEE
Model Number YL-DWP80B
Theory Centrifugal Pump
Structure Gear Pump
Usage Water
Power Other, power
Standard or Nonstandard Nonstandard
Fuel Diesel
Pressure High Pressure
Application Fire

 Powered by air cooled 4-stroke Diesel engine

* IRON  pump  body design
* High quality and mechanical sealed equipment
* Compact structure ,light weight,easy operation
* Easy maintenance








Diesel  Engine
1) Type: 1-cylinder, 4-stroke, air-cooled  swirl chamber diesel  engine
2) Work capacity: 196cm³
3) Max. Output: 3.5horsepower/3000rpm
4) Ignition system: Non-contact transistor
5) Starting system: Recoil

6) Fuel tank capacity: 3L
7) Continuous operating time: 3hours
8) Engine oil system capacity: 0.7L

Diesel engine advantage:

1.Competivite  price

2.New design and good market

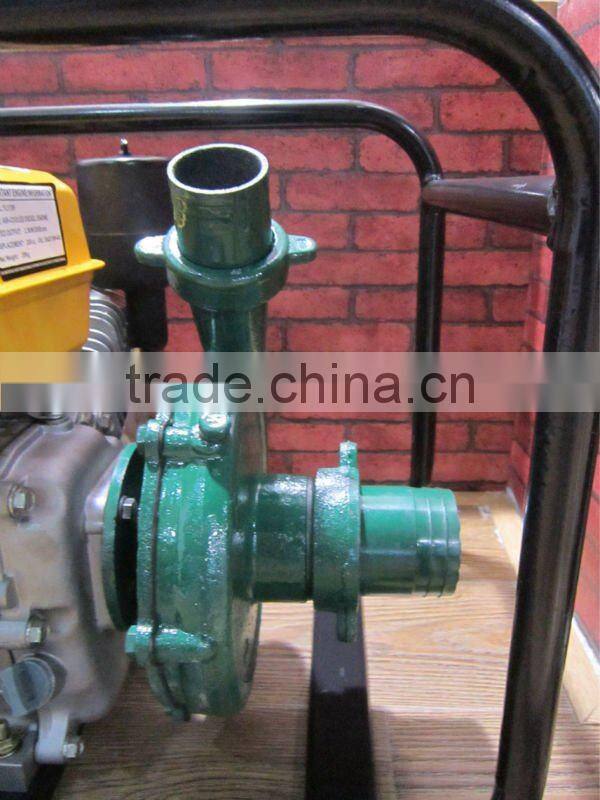

Water Pump:
1) Diameter of outlet/inlet: 3inch /2.5inch
2) Max. Delivery lift:25

2) Rated power:2.5kw

3) Max. Water displacement: 500L /MIN
Size and weight:
1) Over dimension(L*W*H): 535*400*420mm
2) Dry weight:34kg









ModelYL-DWP50BYL-DWP80BYL-DWP65B

Suction port diameter(2")(3")(2.5")
Discharge port diamter(2")(2.5")(2")
Total head30m25m40m
flow rate335L/min500L/min420L/min
Fuel tank capacity3.6L3.6L3.6L
Net weight30KG34KG30KG
Dimensions535*400*420535*400*420535*400*420
Engine modelYL170FAYL170FAYL170FA
TypeSingle-cylinder,4-stroke,air-cooled,swirl chamber
Engine speed3000rpm
Engine outpurt2.5kw
Bore*stroke70*54mm
Displacement208cc
Lube-oil capacity0.7L

 Cast Iron water pumpCast Iron water pumpCast Iron water pump
