Home > Products > Diesel Generator > Italy type diesel generator 5KW

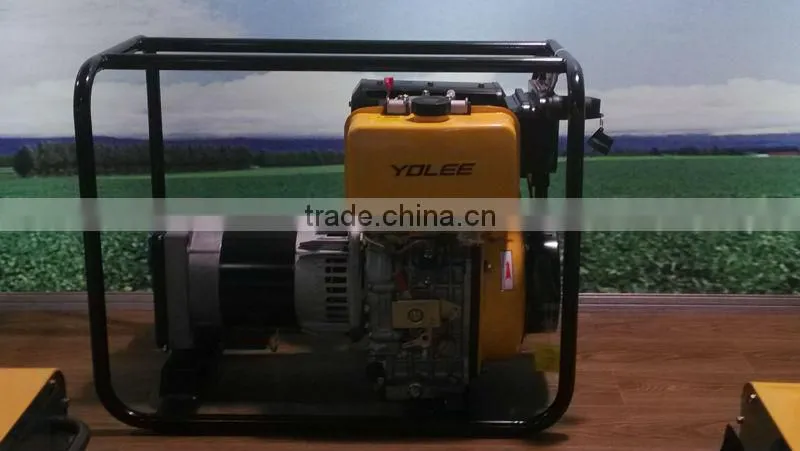

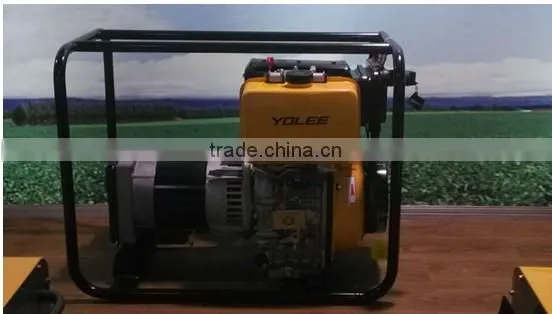

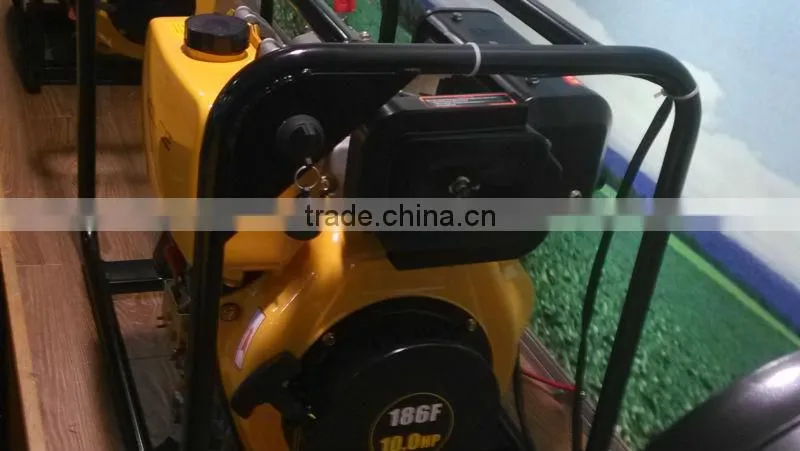

Italy type diesel generator 5KW
- 1000 Set / Sets per Month
- NINGBO /SHANGHAI
- T/T
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | YOLEE | Model Number: | YL-D6500E |
Output Type: | AC Single Phase | Speed: | 3600rpm/mon | Frequency: | 50HZ |
Rated Power: | 5KW | Rated Voltage: | 220V | Rated Current: | 23A |
Product Description
Specifications
Italy type Diesel Generator1. open frame type.
2. best quality competivite price
3.Service for long time.one year warrantl
Air-Cooled Diesel Generator
1.5KW diesel generator set, open frame type.
2. With electrical start,

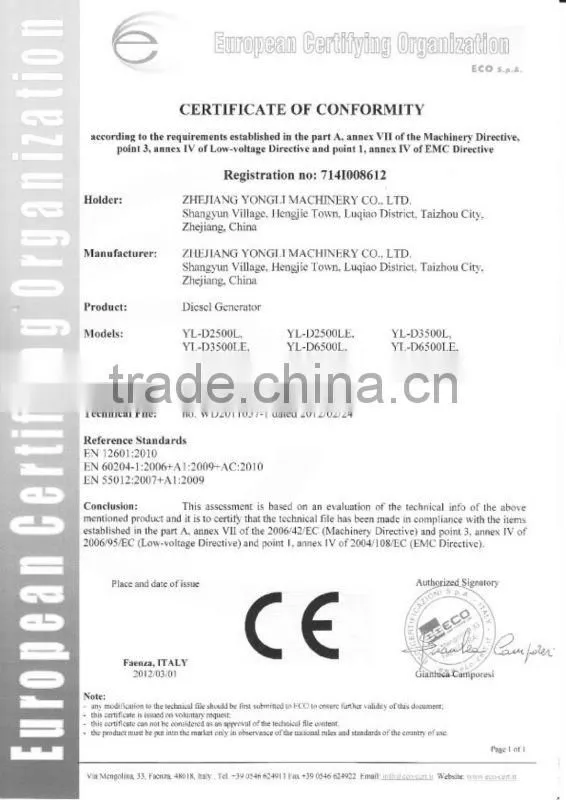

3. With CE certification.
4. Manufacturer's price
5. We produce engine more the 10 years
6. Our AVRs are more steady
7. Our productions range from 2KW to 6KW
8. Our dynamotors are 100% copper
9. We can Design and increase ATS, digital panel, three phase, type output and any other equipment you need.
10. Our guarantee is 1 years.
8. Our engine passed the continual500 hours running test
Diesel Generator advantage
1. CE approved, powered by advanced air-cooled diesel engine.
2. Noise-reducing enclosure, made of high-efficient noise-proof material.
3. Ideal for home emergency use or as standby power supply.
4. Large fuel tank, ensuring hours of continuous output.
5. Advanced direct fuel injection system.
6. Large silent muffler & air-cleaner, reducing exhaust and intake noise.
7. A variety of specially-designed control panels available for different markets.
OPITION:
DIGITAL display:display voltage,frequency,power,amp,etc
ATS : With the city electric grid, the generators automatically switch to automatic control box to start generating and with the normal power supply when net power off. City electricity to be restored, the automatic switch box automatically switch to the city and the normal electric power supply, standby generator in the state
Model | YL-D6500ALE | | |
Rated frequency (Hz) | 50 | 60 | |
Rated voltage (V) | 220, 230, 240, 220/110, 230/115, 240/120 | ||
Rated output power (KVA) | 4.5 | 5 | |
Rated rotation speed (rpm) | 3000 | 3600 | |
DC output | 12V, 7A | | |
Power factor cosφ | 1 | | |
Phase number | Single phase | | |
Excitation mode | Self-excitation Brushless | ||
Noise level dB(A)@ 7m (zero load - full load) | 77 | ||
Overall dimension [mm(in)](L× W× H) | 720× 520× 620 | | |
| |||
Net weight kg | 105 | | |
Structure model | open type | | |
Connection mode | Single bearing, rotor drive shaft, rigid coupling | | |
Engine model | 186FA(10HP) | | |
Engine type | 1-cylinder, 4-stroke, air-cooled, direct injection, diesel engine | | |
Displacement | 418CC | | |
Compression ratio | 19: 01 | | |
Rated power [KW(Hp)/rpm] | 6.8(7.6)/3600 | | |
Starting system | Electric starting | | |
Rotation direction (view from flywheel) | Clockwise | | |
Fuel type | 0 (sumber), 10 (winter) diesel oil | | |
Lube | SAE10W30 (above CC grade) | | |
Low oil pressure alarm system | With |
