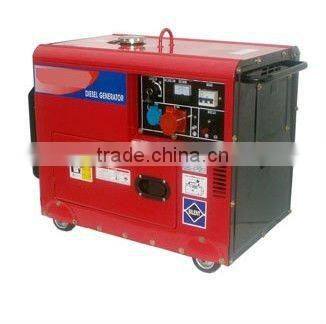

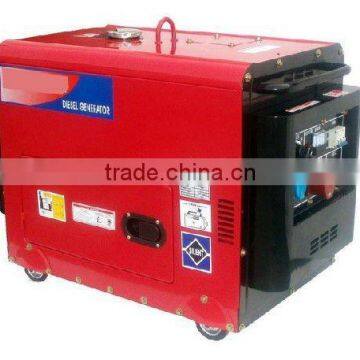

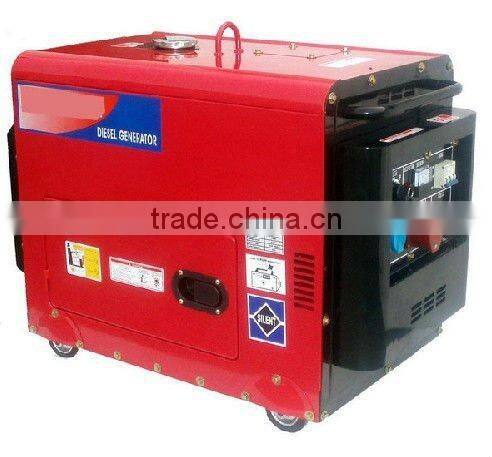

5kw Silent Diesel Generator With Kama Engine

Name: 5kw Silent Diesel Generator With Kama Engine
Brand: YOLEE
SKU: 140880542
Availability: InStock

Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

YOLEE

Model Number:

YL-D6500LES

Zhejiang Yongli Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name YOLEE

Model Number YL-D6500LES

Output Type AC Three Phase

Speed 3000rpm/min

Frequency 50HZ

Rated Power 5KW

Rated Voltage 220V

Rated Current 22A

Specifications

Air-Coolder Diesel Generator
1.5KW diesel generator set, silent type.
2. With electrical start.
3. With CE certification.

Model	YL-DW6500LES
Rated frequency (Hz)	50
Rated voltage (V)	220, 230, 240, 110/220, 115/230, 120/240
Rated output power (KVA)	4.5
Max output power (KVA)	5
Rated rotation speed (rpm)	3600
Power factor cosφ	1
Phase number	Single
Pole number	2
Excitation transistorized	Self-excitation, brushless
ATS type	Without ATS, optional
Structure type	Open-frame
Fuel consumption (g/KW. h)	340
Fuel tank capacity (L)	12.5
Continuous running time (hr)(at rated power)	8
			Noise level (dBA@7m) (zero load ~ full load)	75-79
Net weight (kg)	X: 95	XE: 100
Overall dimension (mm)(L× W× H)	735× 485× 670
			Starting system	X: recoil starter; XE: electric starter
Fuel type	0 (summer), -10 (winter), -35 (chill cold) diesel oil
Lube	CD or better than CD
Engine model	X: KD186F
	XE: KD186FE
Engine type	1-cylinder, 4-stroke, air-cooled, verical, diesel engine
Bore× stroke (mm)	86× 72
Displacement (cm³ )	0.418
Compression ratio	19: 1
Rated power (KW/rpm)	6.3/3600
Rotation direction (view from the flywheel)	Clockwise
