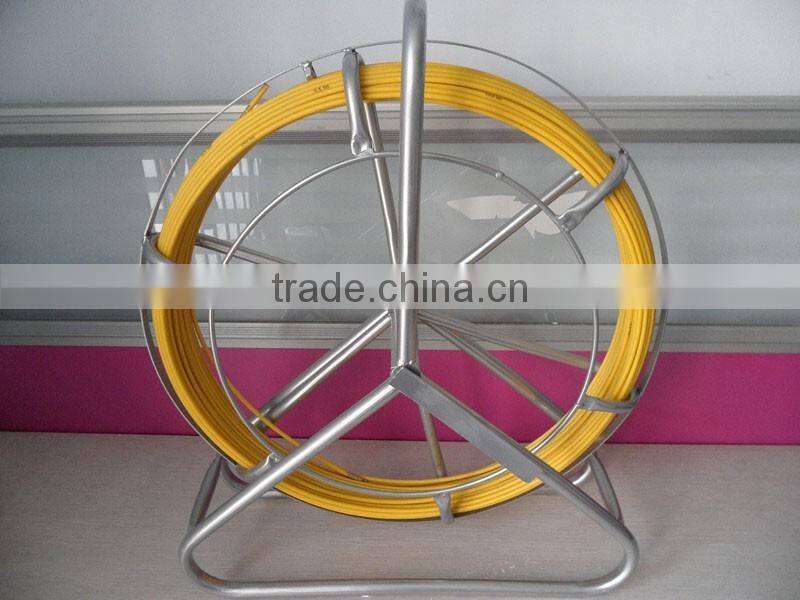

Drainage duct rodder
Introduction:
♦ Duct rodders are composed of fiber glass rod which was extruded by fiber glass and high
strength resin at high temperature.
♦ It was covered by a high density polyethylene engineering plastic as its protect layer,
which make duct rodder cover sliding on surface, durable, corrosion resistant
♦ It also has good insulation performance, which make them safe for use in cable occupied duct.
Features:
♦ Strong non-conductive fiberglass rod construction
♦ Stainless steel drawing head
♦ For longer conduit runs and underground duct
♦ Rugged tubular steel reel with adjustable position.
♦ Feed device allows rod to feed out or be wound back onto reel with easy push or pull of rod.
♦ Duct rods/duct rodders have many applications which is not only pulling the cable but also
pulling electric tools and its repair is very easy and available.
Applications:
♦ This kind of products can be used for telecom cables, cable pipe and cleaning and plastic pipe of cloths to put.
♦ When using draws out the FPR pole by the pulley, then with a corresponding metal joint, penetrates in the pipeline.
♦ When cleaning, guide head will drive cleaning tools to clean the pipe;
♦ When arranges the cable, you may first leads the steel wire or the iron wire, then enters the pipe
with the steel wire or the iron wire hauling cable.
Specifications:
Technical Date of Fiberglass Duct Rodder | |||
Specification | Rod Diameter (mm) | Φ4.5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 |
|
Rod Length (m) | 50m~350m |
| |
Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700,420x180x400 |
| |
Material: | Fiber glass rod inner, | Extruded by fiber glass and high strength resin at high temperature |
|
Fiber glass rod outer | High Density polyethylene coating |
| |
Metal Frame | Steel with high-temperature sprayed plastic or hot dip galvanized |
| |
Physical Property | Fiber glass content | 75-80% |
|
Density | >1.9gr/cm3 |
| |
Working environment | -40°C to +80°C |
| |
Minimum Pulling strength | 4000N +/-5% |
| |
Consistency of rod | 137gr/m |
| |
Flexural Modulus | >46.500Mpa |
| |
Elongation at break | 2.5-3% |
| |
Min Bending Radius | 388mm | ||

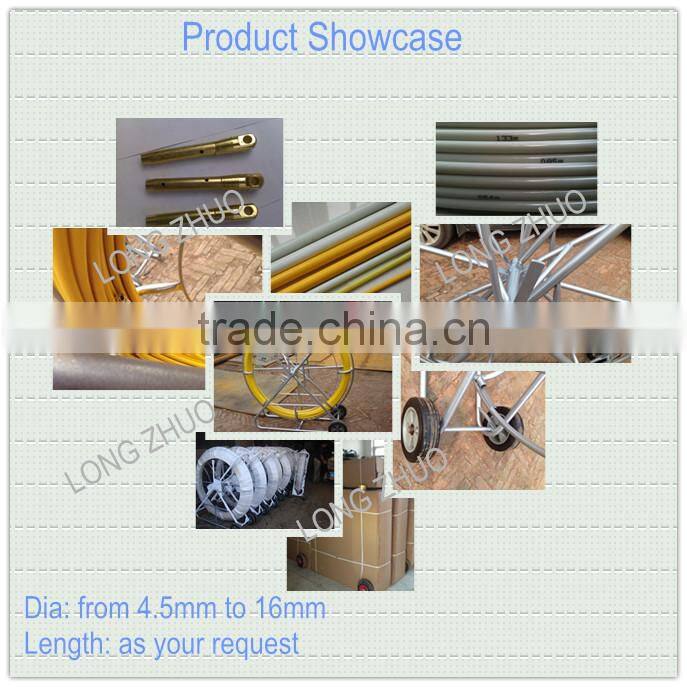

Product show:
Packaging Detail: duct rodder can be packaged in plastic woven, pallet or as your request
Delivery Detail: duct rodder can be ship within 15days after recieve your deposit
Why Choose Long Zhuo ?
1. Highest Quality
We are the manufacture who adopts import raw materials. It is amazing,and with cheap price andguaranteed quality.
2. Most Competitive Price
We can adjustment the price according to your market demand’s changes,and also can launch a series of promotional activities in a bad economic environment
3. Professional
We are special in producing and sells, as development, methods, and handling.
4. Best Service
Answering emails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business.
All the listed price is reference ,for latest price please contact directly
