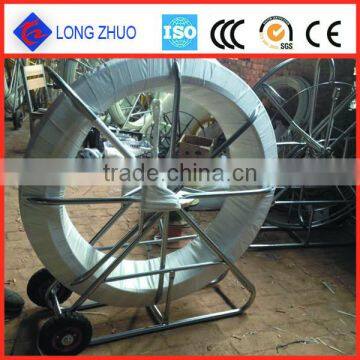

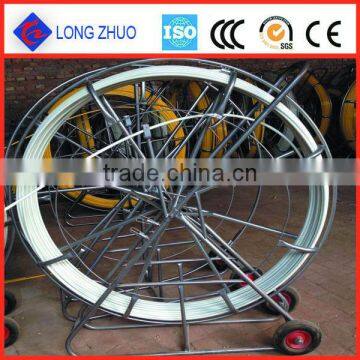

Fiberglass snake duct rodder/Fiberglass cable conduit rod/ fiberglass snake rod
- 5000 Set / Sets per Month
- Xingang
Product Details
Place of Origin: | Hebei, China | Brand Name: | Long Zhuo | Model Number: | FDR |
Application: | Traction guide line in the pipeline, as well as the protection communi | Surface Treatment: | High pressure low density polyethylene protective layer | Technique: | pultrusion |
Dimensions: | 50-300m |
Product Description

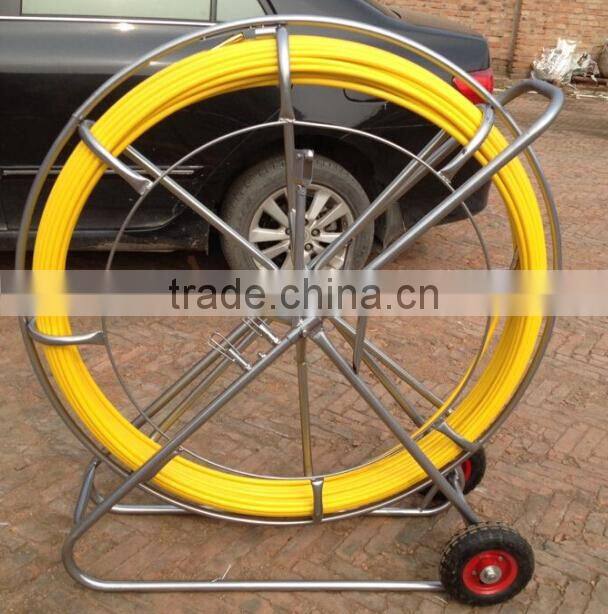

Fiberglass snake duct rodder/Fiberglass cable conduit rod/ fiberglass snake rod
Fiberglass duct rodder in the pipeline traction guide rope is a good auxiliary tool. Smooth and full of elasticity surface can make the fiberglass duct rodder easily through the narrow passage.

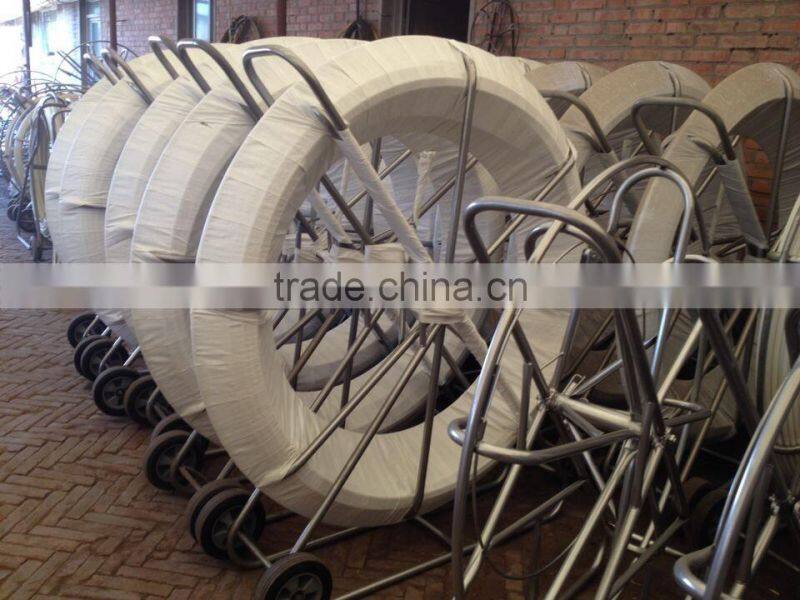

Beautiful Appearance

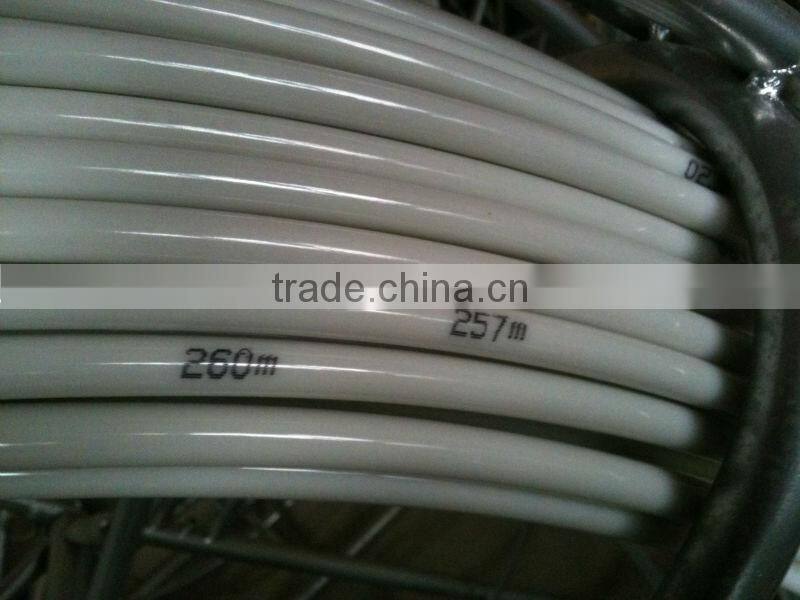

Good quality Fiberglass Rods

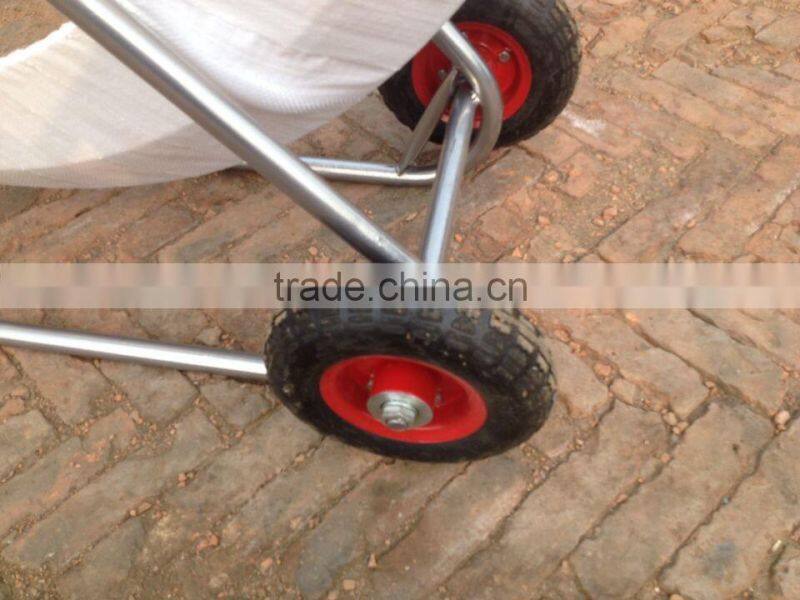

No rust leader Rubber wheels

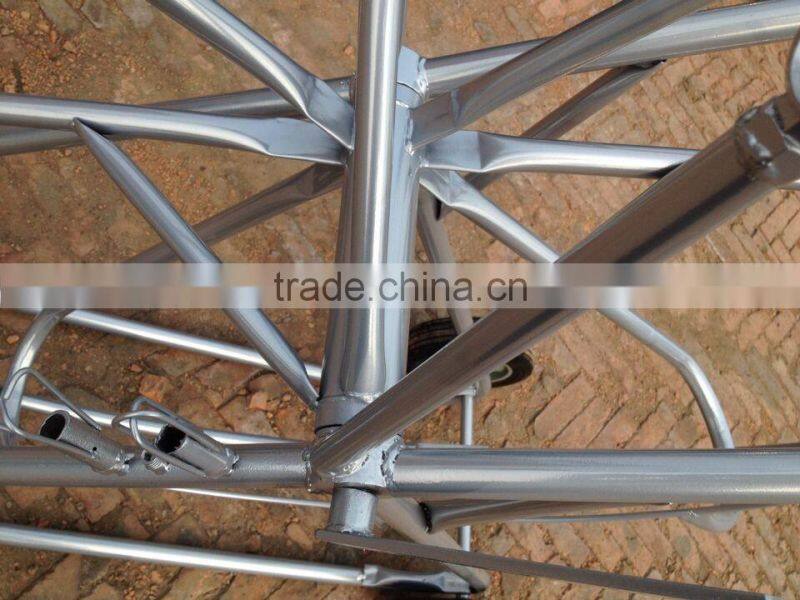

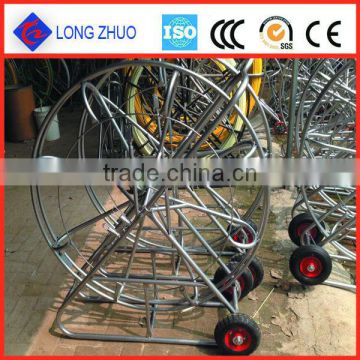

Reinforced Frame
Advantages
High Density polyethylene (Grade: For the insulating and jacketing of Telecommunication Cables) is used in the outer diameter coating. Duct Rodders will equipped with different size reel according to the length of rod. There are wheels on the reel, which
make it convenient for moving. Light weight, durable, resistance to acid, alkali, aging resistant, corrosion resistant.
High tensile strength and bending properties, which make it to go through narrow pipes easily. Good temperature adaptability,
the product will not soften in hot weather / nor become brittle in cold weather. Its usability will not be affected by temperature.
Outer protect layer are made of high density polyethylene engineering plastic, which has good anti-UV capability. Cover was
coated with long-term UV-resistant polyethylene. Its surface has the advantage of smooth, wear-resistant and long service life.
Mechanical properties
Fiberglass reinforced composited core | |
keinforcement | E-glassfiber |
Fiberglass content of inner part | 75-80% |
Material of the pulling rod | Fiberglass(inner) high density polyethylene(outer) |
density | > 1.9g/cm3 |
Working temperature | -40°C to + 80°C |
Minimum pulling strength | 4000 N±5% |
Tensile modulus | >46.50Mpa |
Consistency of rod | 137g/m |
Flexural modulus | >46.50Mpa |
Elongation at break | 2.5-3% |
Min.bending radius | 380mm |
Polyethylene cover | |
Tensile strength | >15N/mm2 |
Environmental stress & crack resistance | >1000 hr. |
Heat stability | ok |
Carbon black | ok |
Specifications | |
rod diameter(mm) | 4.5,6,8,10,11,12,13,14,15,16,18 |
rod length (meter) | 30-500 |
reel size (mm) | 1300x450x1330, 1200x420x1220, 980x350x1000, 680x240x700,420x180x400 |

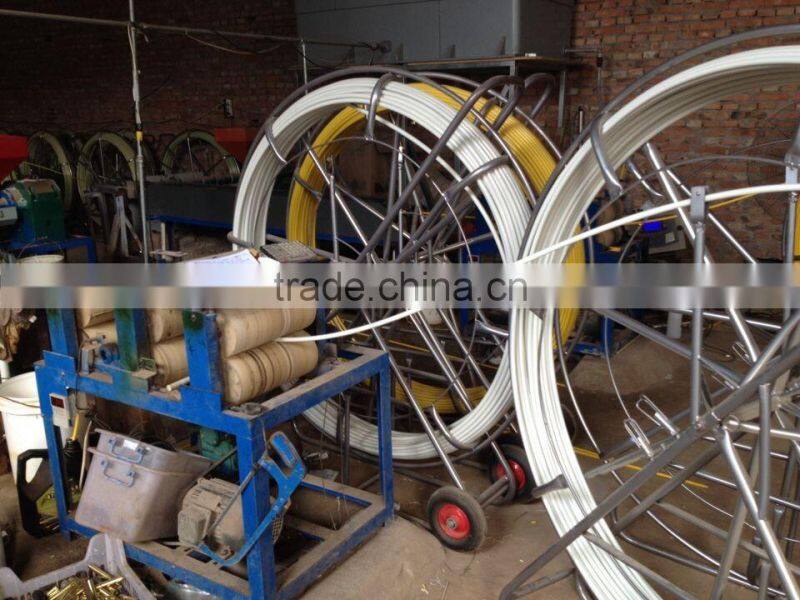

Production Process

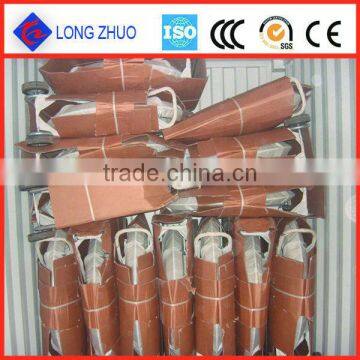

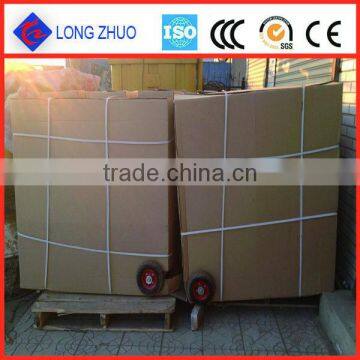

Packaging & Shipping
1,Our usual packing material is carton or plastic.While if your order quantity quit considerable,we will adjust according your need.
2,Usually we will delivery the produc 15 days later after your payment.But considering your practical situation,we will make our best to satisfy your request.
