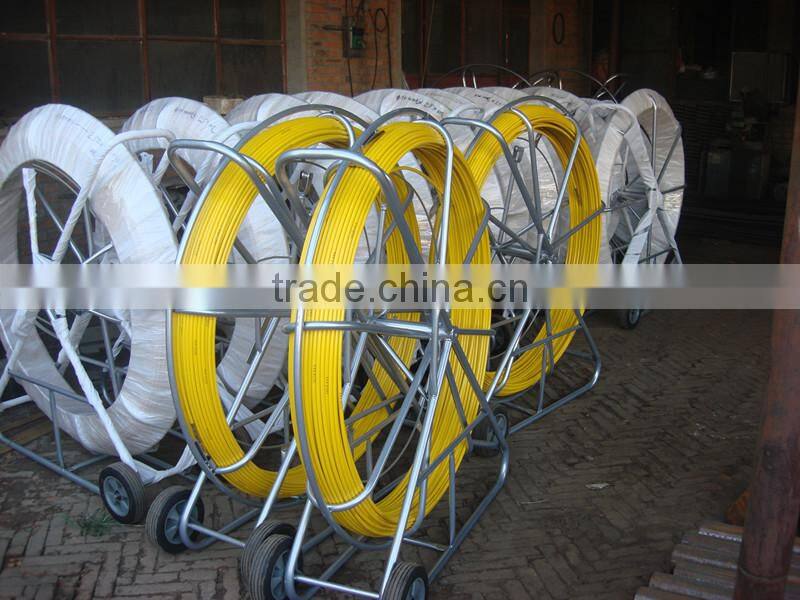

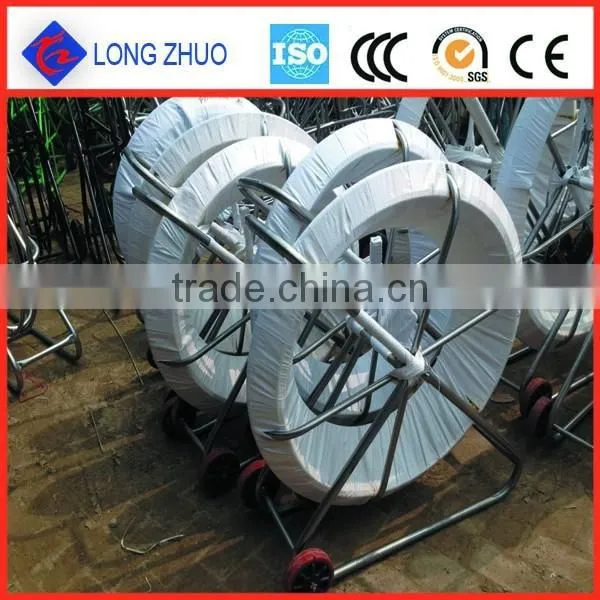

Fiberglass Duct Rodder/FRP Conduit Snake Duct Rod/Cable Duct Rod/Cable jockey rod
Fiberglass duct rodder applies in tow lead-rope through a pipe,it is auxiliary means. Surface smooth and high resilience,so the FRP perforator with ease passes the narrow channel.
High Density polyethylene (Grade: for the insulating and jacketing of Telecommunication Cables) is used in the outer diameter coating.
Duct Rodders will equipped with different size reel according to the length of rod. There are wheels on the reel, which make it convenient for moving.Light weight, durable, resistance to acid, alkali, aging resistant, corrosion resistant.High tensile strength and bending properties, which make it to go through narrow pipes easily.Good temperature adaptability, the product will not soften in hot weather / nor become brittle in cold weather. Its usability will not be affected by temperature.
Outer protect layer are made of high density polyethylene engineering plastic, which has good anti-UV capability. Cover was coated with long-term UV-resistant polyethylene.
Its surface has the advantage of smooth, wear-resistant and long service life.
There are meter marks on the protect layer of duct rodder, which can be used for measuring distance. Marks are printed by professional printing machine, which has the advantage of strong adhesion, clear writing, waterproof, anti-ultraviolet, it can be still clear even after using many times.
Fiberglass Duct Rodder Structure and Feauture :
Constructed of fiberglass reinforced in the center and consists of a rugged plastic layer that would ensure the lifetime of the flexible rod.

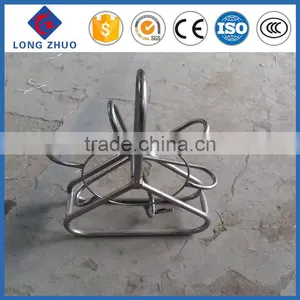

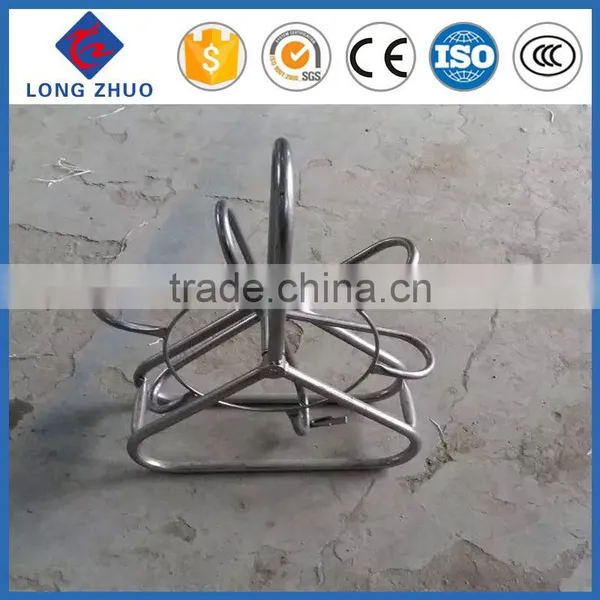

Assembly: metal frame and rubber wheels, Wheel assembly for easy transportation; Guide rollers and the right parts for rotary coupling; parking brake for the flexible rod.
There is copper wire inside for tracing easily.
Polyethylene cover: Medium density polyethylene resin for the insulating and jacketing of cables.
Fiberglass Duct Rodder Specifications:
Technical Date of Fiberglass Duct Rodder | ||
Specification | Rod Diameter (mm) | Φ 4,Φ 5,Φ 6,Φ 8,Φ 10, Φ 11, Φ 12, Φ 13, Φ 14, Φ 15, Φ 16 |
Rod Length (m) | 30m~350m | |
Frame Spec. (mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700,420x180x400 | |
Material: | Fiber glass rod inner, | Extruded by fiber glass and high strength resin at high temperature |
Fiber glass rod outer | High Density polyethylene coating | |
Metal Frame | Steel with high-temperature sprayed plastic or hot dip galvanized | |
Physical Property | Fiber glass content | 75-80% |
Density | > 1.9gr/cm3 | |
Working environment | -40° C to +80° C | |
Minimum Pulling strength | 4000N +/-5% | |
Consistency of rod | 137gr/m | |
Flexural Modulus | > 46.500Mpa | |
Elongation at break | 2.5-3% | |
Min Bending Radius | 388mm | |
Fiberglass Duct Rodder Packaging:
Plastic woven bag and carton box or as your require.
Fiberglass Duct Rodder Applications:
Fiberglass duct rodders are used ifor commincation and drain cleaner and electric power pull.
Why choose Long Zhuo?
1. Highest quality
We are the manufacture who adopts import raw materials. It is amazing, and with cheap price and guaranteed quality.
2. Most competitive price
We can adjustment the price according to your market demand’s changes,and also can launch a
series of promotional activities in a bad economic environment
3. Professional
We are special in producing and sells, as development, methods, and handling.
4. Best service
Answering emails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business.
