Specifications
Plastic Random Packing1.Low pressure drop,
2.Big flux,high efficiency
3.Used for seperation and absorption

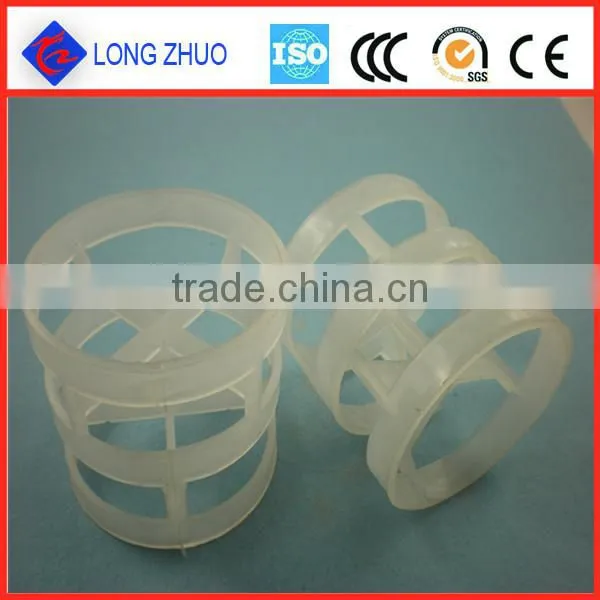

Superior quality tower packing plastic pall ring/ Plastic Random Packing
Plastic Random Packing is most suited in low pressure drop, high capacity applications, lpw mass-transfer unit height ,high flooding point ,uniform gas-liquid contact ,small specific gravity,high mass transfer efficiency and so on .
Performance of Plastic Random Packing :
Good Capacity and Low Pressure Drop
- Higher capacity and lower pressure drop than ceramic packing.
- Multiple sizes provide ability to optimize capacity and efficiency based on application requirements.
Higher Liquid Hold-up and Residence Time
- Relatively high liquid hold-up allows good absorption efficiency with slow chemical reaction.
Versatile Standard Packing
- Lower sensitivity to liquid and vapor distribution quality allows use with conventional liquid distributors.
High Mechanical Strength
- Ring and spoke construction provides high mechanical strength, which allows use in deep beds.
Material: polypropylene, strengthens polypropylene, strengthen nylon6, strengthen PBT
D×H×δ |
Specific area m2/m3 |
Void rate ε % |
Bulk number
g/m3
|
Package density
(kg/m3)
|
F factor m-1 |
16×16×1 |
188 |
0.91 |
170000 |
85 |
275 |
25×25×1.2 |
175 |
0.90 |
53500 |
69 |
239 |
38×38×1.4 |
115 |
0.89 |
15800 |
63 |
220 |
50×50×1.5 |
93 |
0.90 |
6500 |
52 |
127 |
76×76×2.6 |
73.2 |
0.92 |
1927 |
41 |
94 |
100×100×3 |
52.8 |
0.94 |
1000 |
32 |
82 |
Physical & chemical properties
Performance / Material |
PE |
PP |
RPP |
PVC |
CPVC |
PVDF |
Density (g/cm3) |
0.94-0.96 |
0.89-0.91 |
0.93-0.94 |
1.32-1.44 |
1.50-1.54 |
1.75-1.78 |
Operation Temp.(ºC) |
90 |
>100 |
>120 |
>60 |
>90 |
>150 |
Chemical corrosion resistance |
Good |
Good |
Good |
Good |
Good |
Good |
Compression Strength(Mpa) |
>6.0 |
>6.5 |
>7.0 |
>6.0 |
>8.0 |
>10.0 |
Package Type |
Container Load Capacity |
Delivery time |
Quality Insurance |
Payment Terms |
||
20 GP |
40 GP |
40 HQ |
||||
Ton bag |
20-24 m3 |
40 m3 |
48 m3 |
Within 3-10 days |
Chinese National Standard; Offer quality assurance as request. |
T/T, West Union |
Plastic bag |
25 m3 |
54 m3 |
68 m3 |
|||
Paper box |
20 m3 |
40 m3 |
40 m3 |
|||
