Plastic Pall Ring Packing Used in the Packing Towers in Petroleum Industry/ Plastic Random Packing

FOB Price

US$ 200 - 500 / Cubic Meter

1 Cubic Meter(Min. Order)

Port Tianjin port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	Long Zhuo
Model Number	PR		Plastic Modling Type	Blow Molding

Product Description

Specifications

Plastic Random Packing
1.Low pressure drop,
2.Big flux,high efficiency
3.Used for seperation and absorption

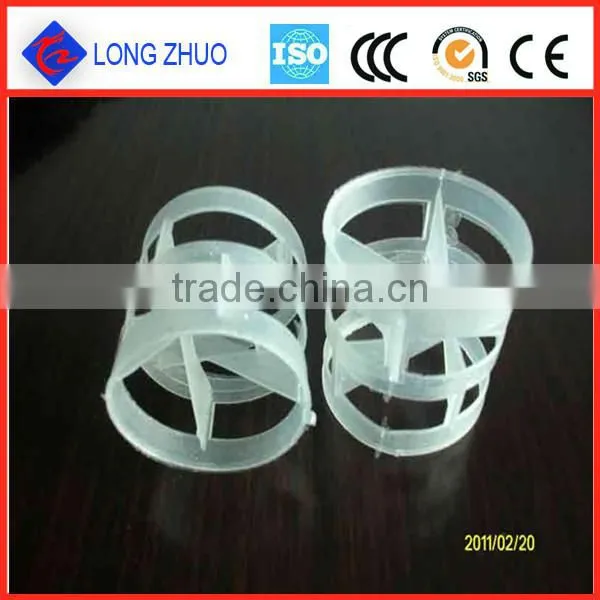

Plastic pall ring packing used in the packing towers in petroleum industry/ Plastic Random Packing

Plastic Random Packing is most suited in low pressure drop, high capacity applications, lpw mass-transfer unit height ,high flooding point ,uniform gas-liquid contact ,small specific gravity,high mass transfer efficiency and so on .

Performance of Plastic Random Packing :

Good Capacity and Low Pressure Drop

Higher capacity and lower pressure drop than ceramic packing.
Multiple sizes provide ability to optimize capacity and efficiency based on application requirements.

Higher Liquid Hold-up and Residence Time

Relatively high liquid hold-up allows good absorption efficiency with slow chemical reaction.

Versatile Standard Packing

Lower sensitivity to liquid and vapor distribution quality allows use with conventional liquid distributors.

High Mechanical Strength

Ring and spoke construction provides high mechanical strength, which allows use in deep beds.

Material: polypropylene, strengthens polypropylene, strengthen nylon6, strengthen PBT

Geometric Parameters

D×H×δ	Specific area m²/m³	Void rate ε %	Bulk number g/m³	Package density (kg/m³)	F factor m^-1
16×16×1	188	0.91	170000	85	275
25×25×1.2	175	0.90	53500	69	239
38×38×1.4	115	0.89	15800	63	220
50×50×1.5	93	0.90	6500	52	127
76×76×2.6	73.2	0.92	1927	41	94
100×100×3	52.8	0.94	1000	32	82

Physical & chemical properties

Performance / Material	PE	PP	RPP	PVC	CPVC	PVDF
Density (g/cm3)	0.94-0.96	0.89-0.91	0.93-0.94	1.32-1.44	1.50-1.54	1.75-1.78
Operation Temp.(ºC)	90	>100	>120	>60	>90	>150
Chemical corrosion resistance	Good	Good	Good	Good	Good	Good
Compression Strength(Mpa)	>6.0	>6.5	>7.0	>6.0	>8.0	>10.0

Plastic Random Packing Package:

Package Type	Container Load Capacity			Delivery time	Quality Insurance	Payment Terms
	20 GP	40 GP	40 HQ
Ton bag	20-24 m3	40 m3	48 m3	Within 3-10 days	Chinese National Standard; Offer quality assurance as request.	T/T, West Union
Plastic bag	25 m3	54 m3	68 m3
Paper box	20 m3	40 m3	40 m3

Production Line of Plastic Random Packing :
