Disposable Chopsticks Round Equipment (bamboo)

Disposable chopsticks round equipment (bamboo)

process:

Original bamboo—sawn—Cutting bamboo—Set a wide open the slice machine make double festival —Bamboo filament molding—bleaching—drying—sawn—polished—Engraved designs— arrangement —packaging—complete

Above for a channel 9 production lines,8 hours production 120000 double,Need  staff 4, 5 people
.The industrial power 380 v,Usually every 100 kg fresh (wet) can produce the bamboo, diameter 4.5-5.0, 190 mm length of about 4000 pairs or so.

The above price for factory price, not including taxes, shipping and packing. Customers for our packing and shipping agents, fees.

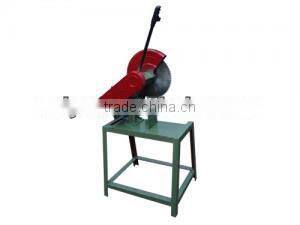

 1.Original bamboo sawn machine

Feature:

The machine USES for small bamboo, wood material is mechanical special equipment of fixed length is cut off.

It's the safety of the structure is reasonable, simple, practical, and convenient operation.

2.Bamboo article open machine

Article USES features:

This machine is mainly used for bamboo, bamboo processing production of billet. According to need to be replaced by the number of different pieces of the knife dish, the different sizes of bamboo tube into the same width of bamboo, bamboo uniform width, speed is quick and efficient. This machine is configured with multiple, the cutting tool with extremely stable work performance meet the requirement of different products processing, improve the production efficiency.

3.Set a wide open the slice machine make double festival

Motor power:3.7kW
Shape dimension:1460*660*1000
weight:450kg
Working parameters:Transportation speed60-80M/min

Characteristics:

This machine is mainly used for purposes of bamboo piece fixed width trimming, a quarter thick, dividing a time for completion.
Cutting system consists of planer knives composition, ensure the incoming navigation structure of flow,
Make sure the surface quality of processed products have.

4.Bamboo filament molding machine

Motor power:8.1kw
Shape dimension:1050*650*990
weight:450kg
Working parameters:Transportation speed60-80M/min

Feature:

The machine mainly USES the function is processed into the bamboo filament bamboo piece. Can change through the different specifications
Cutting tools, produce various specifications of the chopsticks silk, toothpick wire, wire, curtain silk to mat
And all kinds of meat such as string round wire, and so on.

5.Bamboo filament molding machine

Motor power:0.75kw
Shape dimension:1500*650*990
weight:85kg
Working parameters:Scale length60-450mm

Feature:

The machine USES for the bamboo filament, wood silk of fixed length cut off special equipment. Mainly used for round wire type product scale, has the production efficiency is high, the advantages of simple operation.

6.Reciprocating polishing machine

Motor power:2.2kw
Shape dimension:2400*1000*990
weight:230kg
Working parameters:volume0.3Cubic meters

Application characteristics:

This machine is used for round bamboo sticks, wood wool polishing wax. The third molding products in this machine after repeated back and forth vibration and friction, made the product surface is bright and clean. Mainly used in the production of bamboo round chopsticks, bamboo sticks, etc.

7.Round chopsticks engraved machine

Motor power:1.84kw
Shape dimension:1450*880*1050
weight:300kg
Working parameters:production14Double/class

Use features:

Can choose different specifications of the machine to different specifications of bamboo round rods sharpening, engraved one time. Mainly used in the single round chopsticks, toothpicks and sharpening the shape.

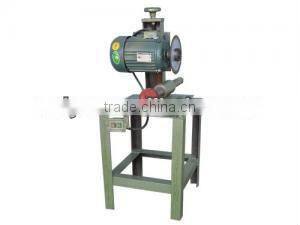

8.Sharpening machine

Motor power:0.37kw
Shape dimension:370*330*720
weight:50kg
Working parameters:speed2800RPM

Feature:

The machine USES for bamboo and log mechanical tool grinding of the special equipment. Mainly used for drawing machine, open Slice machine, to trigger the machinery of the grinding tool.

9.Chopsticks packaging machine

Motor power:0.45kw
Shape dimension:1500*600*1300
weight:240kg
Working parameters:Stepless speed adjustment160Double/points

Use:

 this machine is mainly used for various characteristics of the chopsticks packaging. But stepless speed adjustment, automatic counting, through the feeding, sealing, cutting out of plastic packaging products chopsticks.
