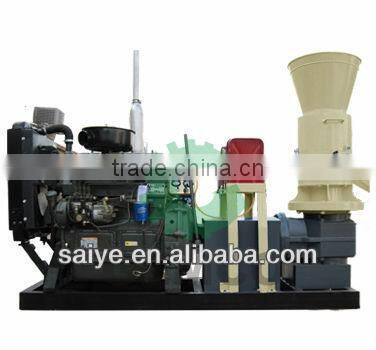

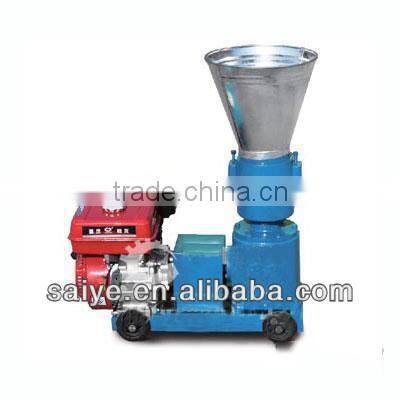

Sawdust moving roller pellet machine
Equipment introduction:
Diesel engine design, strong appearance, simple and convenient movement, high output, low energy consumption.The operation is simple, safe and reliable.Whole body casting, the structure is strong beautiful appearance, long service life, strong adaptability to the work.To meet the needs of the customers for commercialization of granulating
Features:
1, the machine gearbox the introduction of foreign professional design, advanced craft, smooth transmission, low noise, large carrying capacity, low temperature, long service life.
2, the spindle is equipped with overload thrust bearing, bear axial force, long service life.
3, using large diameter roller, high yield, high granulating rate, uniform particle, particle high intensity.
4, press roller die peace through wear-resisting processing, can use both sides flat die, long service life.
5, all bearing adopts sealing structure, effectively prevent dirt to enter, improve the bearing work environment, extend the life of the bearing.
6, suitable for all kinds of biomass fuel particles of preparing, granulating process does not need to add any glue.
7, particle diameter can select from 6-12 mm, grain length is adjustable.
8, the machine matching diesel engine power, can meet the needs of the production of the mobile.At the same time, conditions are not convenient for the three-phase power users to use.
The parameters:
Model |
Matched power (kw) |
Wood chip production(kg/h) |
Weight (kg) |
Packing size (mm) |
SY- R 200A |
15 |
80-120 |
320/350 |
1460*950*1100 |
SY- R 300A |
36 |
250-350 |
850/890 |
1100*700*2480 |
SY- R 400A |
55 |
350-450 |
1010/1050 |
1300*800*2600 |
