Muffle Furnace

Muffle Furnace thumbnail-1
Muffle Furnace photo-1
US$ 1 - 10 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Blast Furnace
Usage:
Heat Treatment Furnace
Contact Supplier Request Quote Chat Now
Zhengzhou Saiye Machinery Equipment Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao/ningbo/gungzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Blast Furnace
Usage Heat Treatment Furnace
Place of Origin Henan, China
Brand Name SAIYE
Model Number SY-1200N
Voltage 220V 50HZ, single phase, 220V 50HZ, single phase
Power(W) 4000
Dimension(L*W*H) 200*200*200mm
Certification ISO9001
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

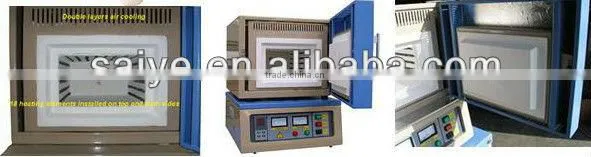

                                              SY-1200N Muffle Furnace



muffle furnacemuffle furnace

Model:  SY-1200N



 Sample size: 200x200x200mm (WxHxD)



Detailed Description:



Chamber size

200*200*200mm(WxHxD)

Max.Temperature

1200°C

Working temperature

1100°C

Temperature  accuracy

+ 1°C

Temperature controller

30 segments programmable and auto control

Heating elements

 Ni-Cr wire

Voltage

220V 50HZ, single phase

Power

4kw



Product Description:

  * Operation Temperature:  1100°C ( 1200°C Max for short time).

 * Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.

  * Three sides resistance wire coil for fast and uniform heating.

  * Heavy duty double layer structure with cooling fan.  Lower teperature in outside case.

  * 0.5" diameter observation window made of quartz galss allow user to see insider chamber during heating operation.

  * K type thermocouple installed for immediate use.

  * Temperature controll unit can be separated from furnace , and make moving at easy.

  * PID automatic control via current limiting phase angle fired the resistor , e.g. SCR ( Silicon Controlled Rectifier)

 * Power control with 30 segments programmable.

 * Vent port installed on the top for gas flow. ( gas outlet)



Applications

   * Gravimetric analysis

  * Sintering

  * Quantitative analysis

  * Heat treating

  * Glass preparation
