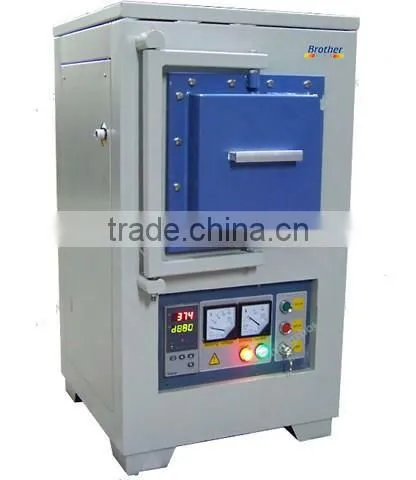

SYXD-1600A Atmosphere Muffle Furnace

Name: SYXD-1600A Atmosphere Muffle Furnace
Brand: SAIYE
SKU: 140876728
Availability: InStock

Zhengzhou Saiye Machinery Equipment Limited

SYXD-1600A Atmosphere Muffle Furnace thumbnail-1

SYXD-1600A Atmosphere Muffle Furnace photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Resistance Furnace

Usage:

Muffle Furnace

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao/ningbo/guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Resistance Furnace

Usage Muffle Furnace

Place of Origin Henan, China

Brand Name SAIYE

Model Number SYXD-1600A

Voltage 220V

Power(W) 10 KW

Dimension(L*W*H) 650 * 700 *1000 mm

Weight 230 Kg

Certification CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Atmosphere Muffle Furnace
1.Inside Chamber Size:200* 200 *200 mm (8"*8"*8", 8 Liter)
2. Working Temperature:1500.C

SYXD-1600A Atmosphere Muffle Furnace

SYXD1600A furnace can be working under Vacuum, Nitrogen and other inert gases atmosphere situation, which consists of high quality alumina fiber brick and MoSi2 heating elements with chamber of 8"x8"x8", and temperature is controlled by high precision SCR ( Silicon Controlled Rectifier) digital controller with accuracy +/-1oC and 30 segments programmable up to 1500oC. It is an ideal tool for materials annealing and sintering in your research laboratory.

Techncial parameter:

Inside Chamber Size	200 x 200 x 200 mm (8"x8"x8", 8 Liter)
Standard Working Temperature	1500.C ( continuous )
Maximum Working Temperature	1600.C ( < 3 hrs)
Furnace Atmosphere	Nitrogen, Argon and other inert gases
Temperature Control	30 steps programmable and PID automatic control
Heating Rate	0~10.C / min (suggestion: < 10.C)
Temperature Accuracy	+/- 1.C
Heating Element	MoSi2 heating elements
Working Voltage	AC 220V Single Phase 60/50 Hz (or according to your requirement)
Max. Power	10 KW
Outside Size	650 x 700 x 1000 mm
Net Weight	230 Kg

Standard Sizes:

Model	Chamber size(WxHxDmm)	Max. Temperature
XD-1600A	150x150x150mm (6"x6"x6")	1600.C
XD-1600A	150x150x200mm (6"x6"x8")	1600.C
XD-1600A	200x200x200mm (8"x8"x8")	1600.C
XD-1600A	200x200x300mm (8"x8"x12")	1600.C
XD-1600A	250x250x300mm (10"x10"x12")	1600.C
XD-1600A	300x300x400mm (12"x12"x16")	1600.C
