Specifications
wooden pellet mill1.motor:7.5kw
2.Capacity :80-150kg/h
3.Length of the pellet:10mm-120mm

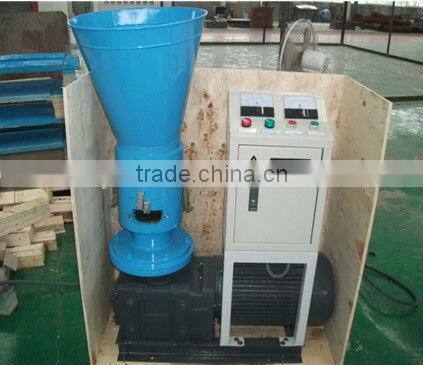

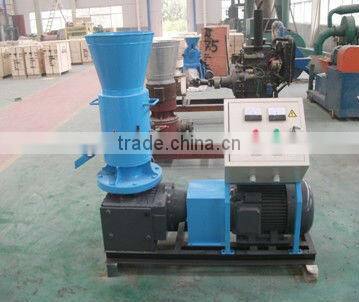

moving roller SYL230B wooden pellet making machine
Technical parameter:
Model | SYL230B |
motor | 7.5kw |
The material of the roller | Alloy steel |
Capacity | 80-150kg/h |
weight | 245kg |
Packing dimension | 1050*480*1120mm |
Diameter of the pellet | 6mm, 8mm,10mm |
Length of the pellet | 10mm-120mm |
Moisture of the material | 8%-18% |
The machine has the following characters:
1. The machine is cover small area , easy to operation , safe usage , low energy and high output .
2. Processing wide range: miscellaneous wood , pine , bamboo shavings , peanut shell , rice husk , straw and other agriculture waste . They can be made of pellet and do not need to add any additive.
3. Using big diameter roller , big capacity , high granulating rate , uniform particle and high particle intensity .
4. Transmission adopts the multistage gear transmission . The gear is made of high quality alloy steel with carburizing and quenching treatment and fine grinding processing, which make the machine is smooth transmission , low noise , large carrying capacity , slow temperature rise and long term service life .
5. The machine is made of steel material , which enhance the mechanical strength and toughness , and never appear rupture phenomenon .
The advantages :
6. The gear box is made of high quality grey cast iron material , low noise and good shock absorption .
7. Adopting gear drive , which is more efficiency than belt transmission and worm gear , and also can come over the disadvantage of the belt creep , short usage of the belt transmission .
8. Mold plate and the roller are made of the high quality alloy steel , the hardness can reach 55-60HRC
9. The machine is most suitable for wood processing with the best best die compression ratio.
10. Safe electric controlling system is full meet with the CE standard operating system . And also you can press the emergency stop button quickly to make the machine stop working .
11. We ensure the coherence and interchangeability between the machine and each components because of the strict and standardized production ans technology management , which make customer choose our machine assuredly
The details of our machine

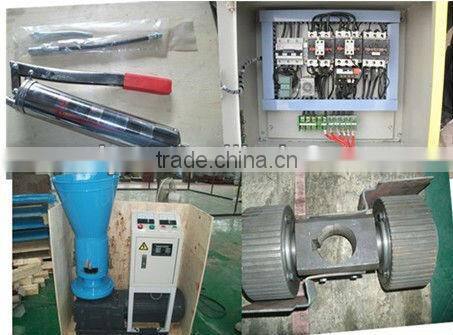

Roller and die plate , detailed part of the mold plate , motor , electric cabinet , spindle box and accessories .
