Specifications
mold temperature controllerPipeline explosion-proof device
Blow water
return water temperature display table
SUS material

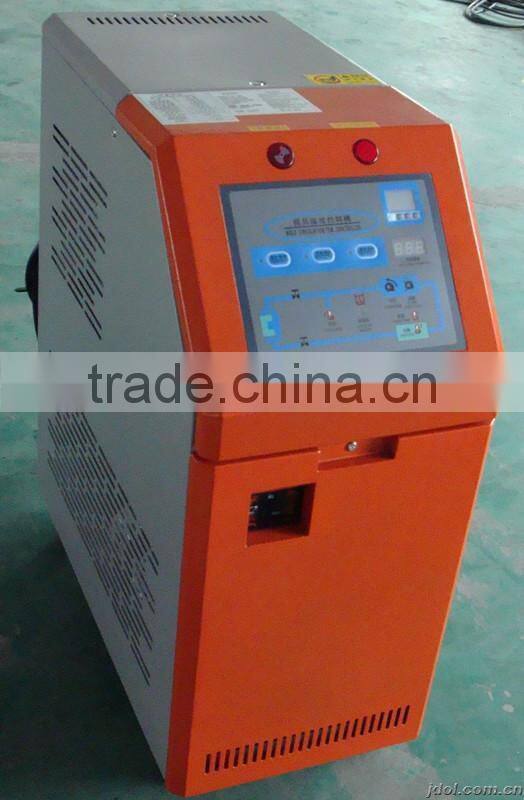

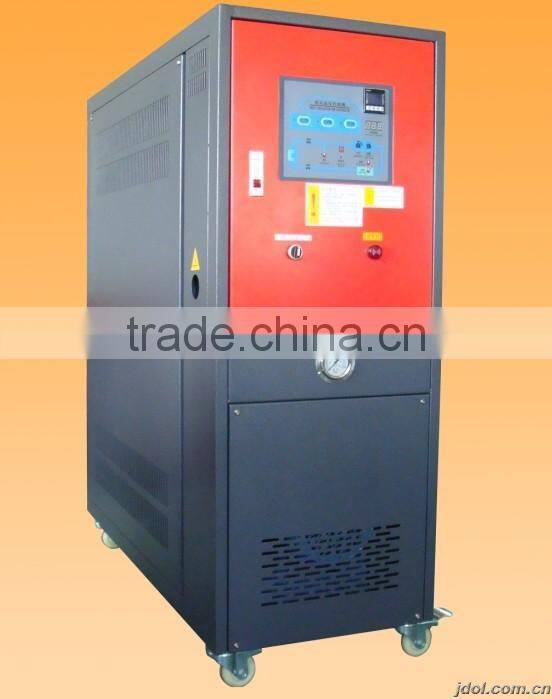

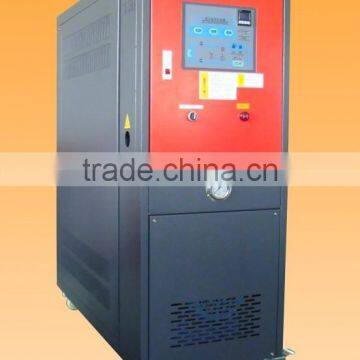

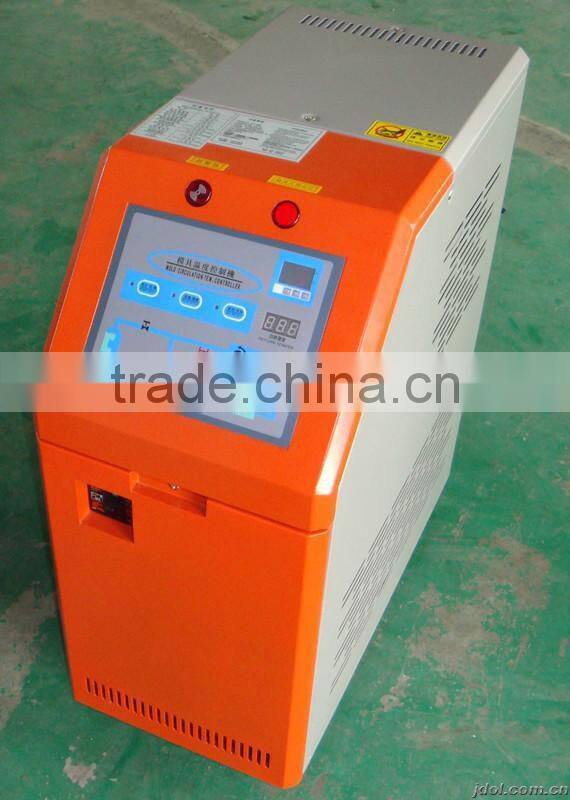

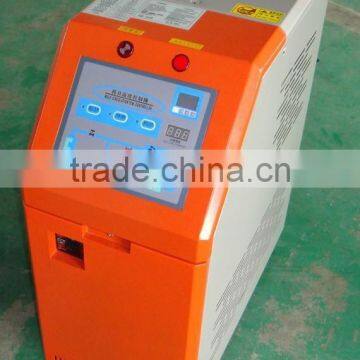

water circulating mold temperature machine
Product features:
Pipeline explosion-proof device
Blow water
The return water temperature display table
Boot automatically exhaust function, heating power switching function
Instant cooling boot function
The hot water BY - PASS pressure loop
Multi-point temperature control unit can be customized
Water Pump power and heating power can be customized
The appliances using OMRON,FUJI, LG, Siemens
Temperature control range: water temperature: + 15 ℃ to 120 ℃
304 stainless steel pipe, reducing pipe rust
Isolation type electric control box, prolong use fixed number of year
RS485 communication function and realize the automation management
Control mode: imported microcomputer and PLC control
Technical parameters:
Model | Unit | SYJW-05B | SYJW-10B | SYJW-10 | SYJW-20 | SYJW-30 |
Temperature range | ℃ | 120℃ | ||||
Temperature accuracy |
| PID±1℃ | PID±0.1℃ | |||
Power | 50hz | 380v | ||||
Heat transfer media |
| water | ||||
Cooling |
| direct cooling | ||||
Heating energy | kw | 6 | 9 | 9 | 12 | 9+9 |
Pump horsepower | HP | 0.5 | 1 | 1 | 2 | 3 |
Maximum pump flow | L/min | 35 | 60 | 130 | 200 | 280 |
Maximum pump pressure | KG/CM2 | 3.5 | 4 | 6 | 4 | 4 |
Maximum power consumption | kw | 7 | 10 | 11 | 10 | 20 |
Cooling water pipe | INCH | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
Circulating water pipe | INCH | 3/8*4 | 3/8*4 | 3/8*4 | 3/8*4 | 3/8*4 |
Dimension | mm | 625*325*580 | 625*325*580 | 625*325*580 | 625*325*580 | 625*325*580 |
weight | kg | 62 | 65 | 75 | 75 | 85 |
