Specifications
cross wedge rolling machineit is divided into double stick cross wedge rolling mill and plate cross wedge rolling mill

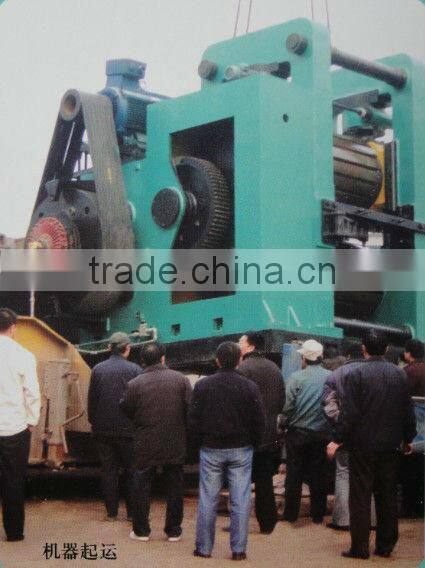

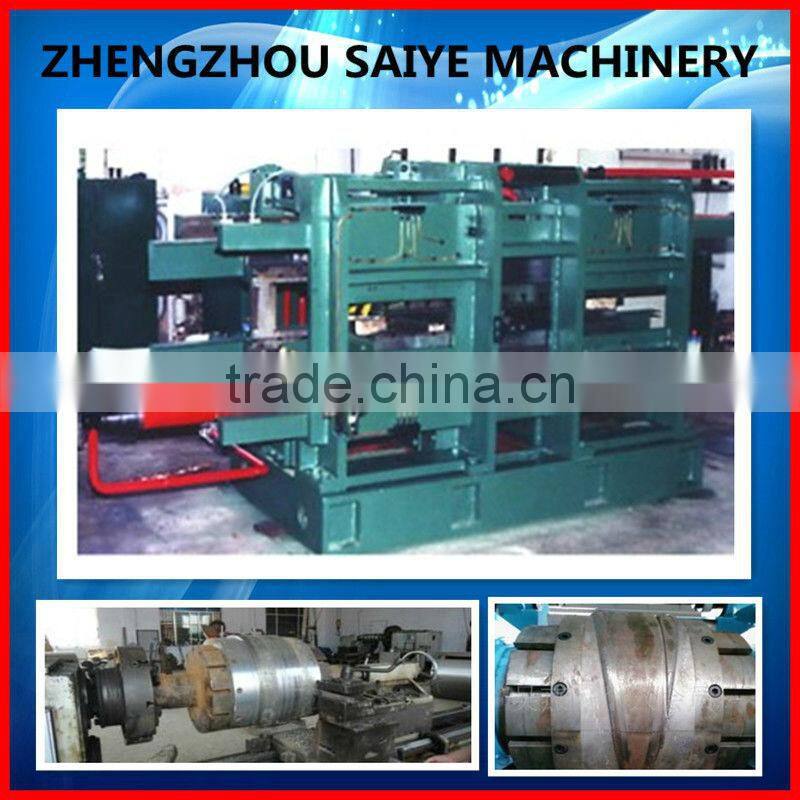

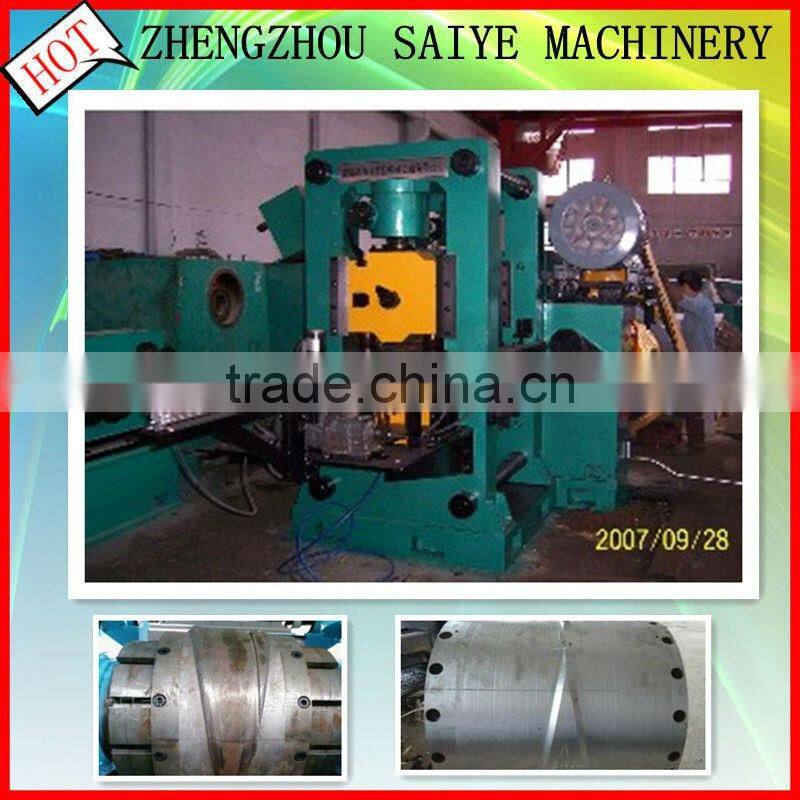

DB46 series double roller blocking cross wedge rolling mill
1. This double roller blocking cross wedge rolling mill is the one that is designed for die forging blocking specially.
2. The structure is simple, and the adjustment is easy. It has no clutches, and it is equipped with the rapid transfer feeder developed by our company.
3. It doesn’t need to stop and can be feeded continuously. So it can meet the requirements of high productivity in the forging industry, and can be used widely to die forging block for the connecting rod of automobiles and hardware tools.
4. It is the ideal equipment that takes place of the air forging hammer to blank.
technical data:
Specifications |
DB46-400 |
DB46-630 |
DB46-800 |
The distance between the rollers |
400 |
630 |
800 |
The diameter of the rollers |
320 |
500 |
630 |
The length of the rollers |
400 |
600 |
800 |
The maximum rolled diameter |
30 |
60 |
85 |
The maximum rolled length |
300 |
450 |
600 |
The speed of the rollers |
12 |
10 |
8 |
The adjustment of the distance between the rollers |
≥±10 |
≥±15 |
≥±20 |
The Power of the motor |
18 |
45 |
75 |
