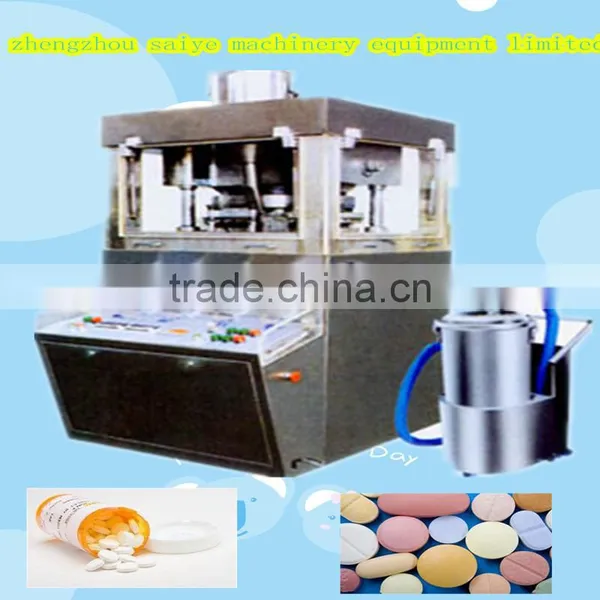

SYZP29 Tablet press
USES:
This machine is a kind of double pressure type automatic rotation, continuous tabletting machines, wafer will granular materials, lettering and abnormity, double color tablets.It is mainly used in pharmaceutical industry tablet production, at the same time, suitable for chemical, food, electron, etc., for the enterprise.(note: production double color piece only need to replace parts and increase the suction powder device, so that both authors, and gain).
Features:
1,As a whole stainless steel closed form outer cover, inside is made of stainless steel mesa material, can maintain the surface gloss and prevent cross contamination, in line with the GMP requirements.
2, equipped with organic glass perspective window, visible state of tablet, side plate can be opened entirely, and clear up and maintain within the easy to.
3.All controller and the operation of the layout is reasonable.
4, variable frequency speed regulating device is adopted to improve the electric control of motor speed, easy operation, steady running, safe and accurate.
5, equipped with overload protection device, when the pressure overload, can automatically stop.
6, the mechanical and electrical integration, use the touch key and screen display.
7, the first trial semi-automatic lubrication device and rotary table top organic dust device from work.
8, transmission system in the sealed tank at the bottom of the host, is safe to separate independent components, also won't have mutual pollution, and the transmission of infiltration in the oil pool, easy to heat and wear resistance.
9, equipped with suction powder device, can suppress indoor dust.
10, wearing parts as orbit, feeder, hopper, worm transmission, such as powder weight and ZP33 type products with general structure, conducive to the standardization, generalization and seriation.
11, punching die with SYZP19, SYZP33, SYZP35, SYZP37 tablet press.
The main technical parameters:
| Model | SYZP29 |
SYZP31 |
SYZP35 |
Number of punching die( Deputy) |
29 |
31 |
35 |
Maximum compressive stress ( Thousands of cows) |
80 |
80 |
80 |
The biggest diameter of compressor ( Mm) |
18 |
16 |
13 |
Maximum filling depth(Mm) |
15 |
15 |
15 |
The biggest tablet thickness(Mm) |
6 |
6 |
6 |
Rotary speed T(turn/Points) |
14-36 |
||
TV |
QA112M4A. 4KW |
||
Overall dimensions (long*wide*High) ( mm ) |
1230 * 950 * 1700 |
1240 * 980 * 1690 |
|
The weight of the( Kg) |
1700 |
1850 |
|
