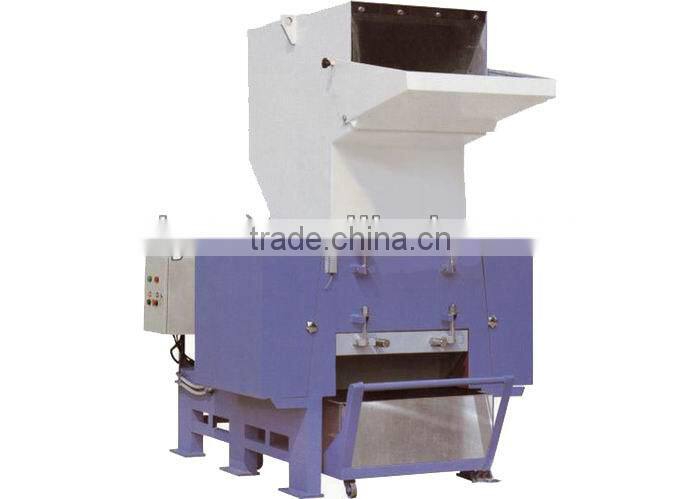

Strong plastic crusher
The product description
1.The feed hopper
Into the structure of the hopper into a handstand trustum of a pyramid body (or cylinder), inlet set wear ring, from feeding equipment of the incoming hopper into the crusher.
2.The distributor
Distributor is mounted on the vortex crushing cavity, the upper part of the role of the distributor is to shunt from hopper incoming, so part of the material through the center into the feed tube directly into the impeller were accelerated to high speed ejection out gradually, so another part of the material from the outer edge of the center into the feed tube, the bypass into the vortex crushing cavity inside the outer edge of the impeller, high speed by mass ejection from the impeller material impact crushing, no increase in power consumption, increase production capacity, improve the efficiency of crushing.
3.The vortex crushing cavity
Vortex structure of the crushing cavity shape for the upper and lower cylinder composed of two pieces of annular space, the impeller in the vortex crushing cavity high-speed rotation, vortex crushing cavity can reside within the material, form the lining material, the material of the broken process occurred in vortex broken cavity, comprises a lining material will be separated vortex crushing chamber wall, crushing effect between the crushing effect is limited to the material, have the effect of wear-resisting since the lining.Observation hole is to observe the impeller flow channel launch mouth the abrasion of wear resistant block and vortex crushing cavity at the top of the liner wear, crusher observation hole sealing must be locked at work.Distributor fixed cylindrical section in the upper portion of the vortex crushing cavity.High-speed rotating impeller generate flow in vortex crushing cavity formed by distributor, impeller internal circulation system.
4.The impeller
Impeller structure made of special material is made of a hollow cylinder, the upper shaft head installed on the spindle assembly, with taper sleeve and linkage pass button distance, high speed rotation, the impeller is a key element of HX vertical impact crusher.Material is the center of the impeller on the part of the device into the feeding tube into the center of the impeller.Fabrics by the impeller center cone materials uniform will be assigned to the impeller of the launch port, the launch port exports, equipped with wear-resistant block made of special material, can be replaced.Impeller material will speed up to 60-75 - m/s mass ejection, impact to the vortex material crushing cavity lining, with strong since shattered, between the cone hat and wear resistant block is equipped with, obscene but, protect the impeller from the wear and tear.
5.The spindle assembly
Spindle assembly is installed in the base to transfer motor through v-belt motivation and support from the impeller rotation.The spindle assembly consists of bearing seat, shaft, bearing, etc.
6.The base
Vortex crushing cavity, spindle assembly, motor, transmission device are installed on the bottom sit, base structure shape, the central space for four prism, the center of the space of four prism, used to install the main shaft assembly, on both sides of the formation of discharging channel.Double motor installed on the base with the longitudinal ends of the base can be installed on the bracket, also can be directly installed on the base.
7.Drive
Using single or double motor drive belt transmission mechanism (more than 75 kw, double motor drive), double motor drive on both sides of two electric motors are installed in the spindle assembly, the motor pulley with a belt connected to the spindle pulley, make the force balance on both sides of the spindle, and does not produce additional torque. Bracket of
8.Bracket
According to different crusher workplace - open job or indoor job, can consider to configure stents or is not configured.
9.The lubrication system
Using mobil car super concentrated lubrication, grease lubrication part of the upper and lower bearing spindle assembly in two places, in order to make oil is convenient, with the outside of tubing to the machine, used for oil pump oil on a regular basis.
Main technical parameter
Model |
SYGP-800-30HP |
Crushing chamber |
815*480MM |
Crushing capacity |
about450-600KG/H |
screen |
12MM |
String material |
SKD-11(cr12mov)stationary knife4,rotating movable knives*24 |
Dimension |
173*149*230CM |
Net weight |
2000KG |
