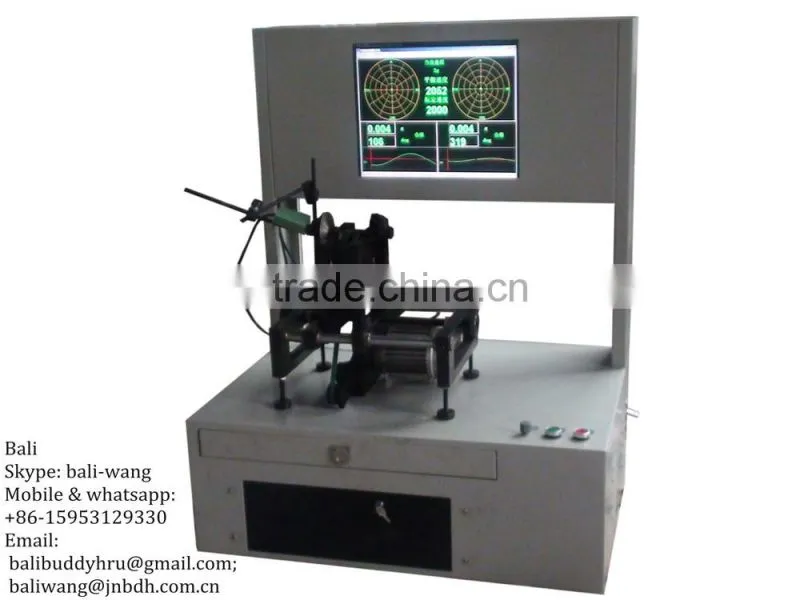

Balancing Machine for Turbocharger Dynamic Trucks Passenger Cars

Name: Balancing Machine for Turbocharger Dynamic Trucks Passenger Cars
Brand: PHOENIX
SKU: 140865604
Availability: InStock

Jinan Bodihao Mechanical Equipment Co., Ltd. Gold Verified Supplier

5Yrs

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

PHOENIX

Model Number:

RYQ-10A

Payment & Shipping

Payment Methods:

Port of Shipment:

QING DAO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name PHOENIX

Model Number RYQ-10A

Power Electronic

Usage Balancing Machine

balancing machine for turbocharger dynamic trucks passenger cars

1,high precision
2,high quality
3,high efficiency
4,low failure rate

Specifications

RYQ-10A field balancing and vibration analysis , Turbine,Compressor,Impeller,Rotor1,high precision 2,high quality3,high efficienc4,CE

Optional function

1, Balance Angle automatic tracking function
2, Parking automatic positioning function
3, Vector Angle function decomposition

4, impeller balancing machine, balancer for turbo (RYQ -10A)

Range of Application

This balancing machine is designed for balancing all kinds of turbocharger rotors and other rotors such as

kinds of good-sized and medium-sized turbocharger rotor,turbocharger impellers,turbocharger turbines,

turbocharger compressors,motors, textile machinery, crankshaft,roller,fans,shaft according to demanding of

our customers.

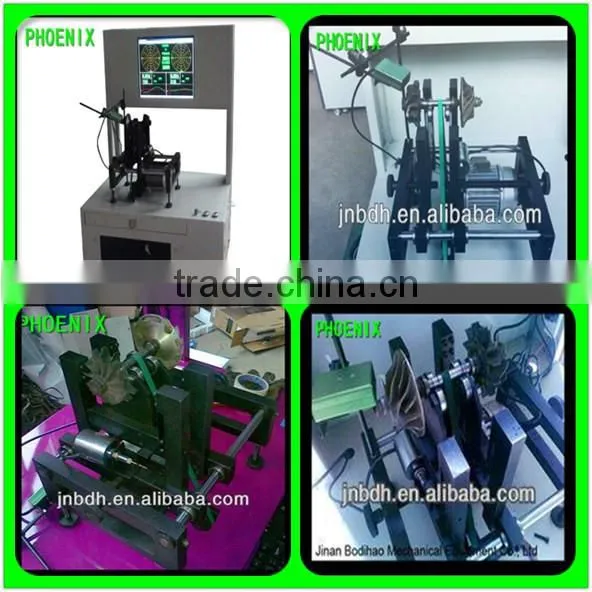

Design

Its specialty that there are two bearing pedestals selection and mostly satisfied variety rotors , etc .. Driven by

belt, it is simple to load and unload,quick to start and with high precision and low failure rate.

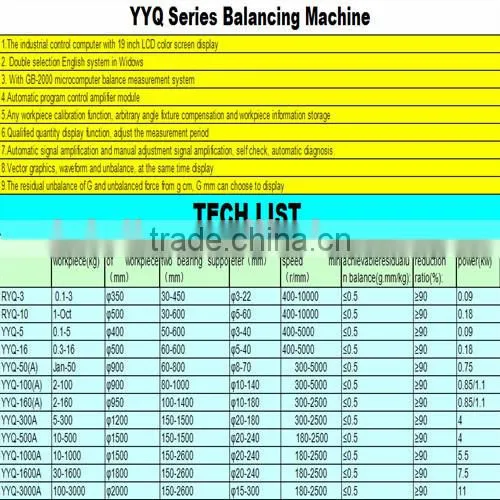

impeller balancing machine, balancer for turbo (RYQ -10A) specification

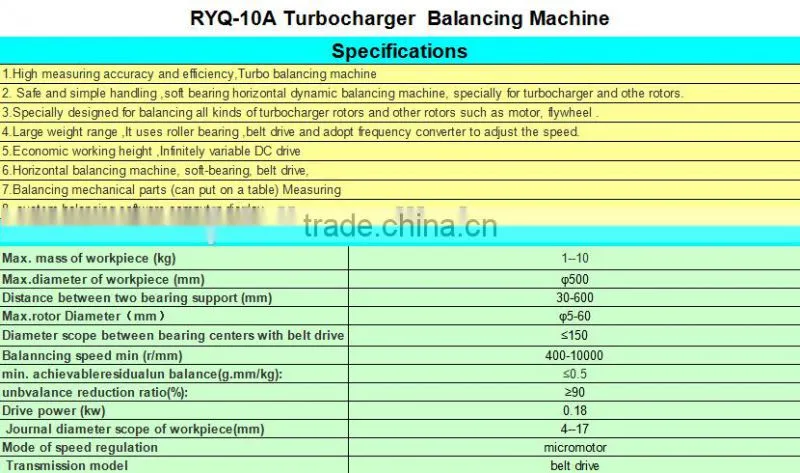

Technical data at a glance

RYQ-10A

Production Parameters

Mass scope of workpiece kg	1--10
Biggest diameter workpiece mm	φ500
Two span of supports mm	30-600
With a diameter circle in drag (mm)	φ5-60
Trunnion support mm	≤150
Balancing speed r/min	400-10000
Min achievable residual unbalance amount	≤0.5
Unbalance reduction ratio%	≥90
Motor power	0.18
mode of speed regulation	4--17
Transmission model	micromotor
