transfer pump impeller balancing apparatus
1,high precision
2,high quality
3,high efficiency
4,low failure rate
Specifications
Balancing Machine for Turbocharger, Turbine,Compressor,Impeller,Rotor
1,high precision 2,high quality 3,high efficiency 4,CE
Hard Bearing Balancing Machine
Apply for all kinds of turbocharger rotors
Electro-dynamic vibration force pickup, highly measuring precision
Range of Application

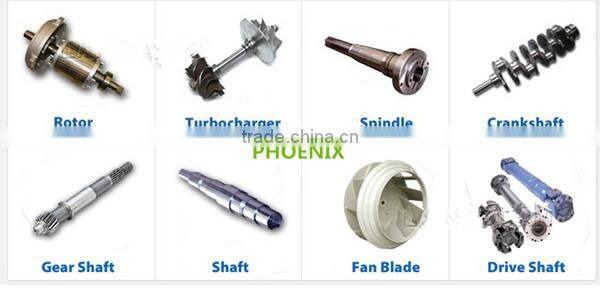

This balancing machine is designed for balancing all kinds of turbocharger rotors and other rotors such as kinds of good-sized and medium-sized turbocharger rotor,turbocharger impellers,turbocharger turbines,turbocharger compressors,motors, textile machinery, crankshaft,roller,fans,shaft according to demanding of our customers.
Design
Its specialty that there are two bearing pedestals selection and mostly satisfied variety rotors , etc .. Driven by belt,it is simple to load and unload,quick to start and with high precision and low failure rate.

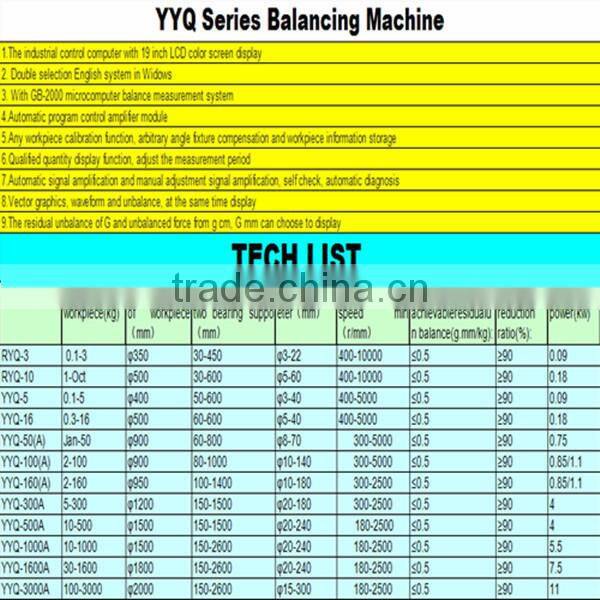

Production Parameters
| Technical data at a glance | YYQ-50A |
| Mass scope of workpiece kg | 50 |
| Biggest diameter workpiece mm | 700 |
| Two span of supports mm | 80-700 |
| With a diameter circle in drag mm | 15-200 |
| Trunnion support mm | 18-200 |
| Balancing speed r/min | 700-1050 |
| Min achievable residual unbalance amount | ≤0.5gmm/kg |
| Unbalance reduction ratio% | ≥90% |
| Motor power | 0.75KW |
| mode of speed regulation | Variable frequency speed regulation |
| Transmission model | Circle with |

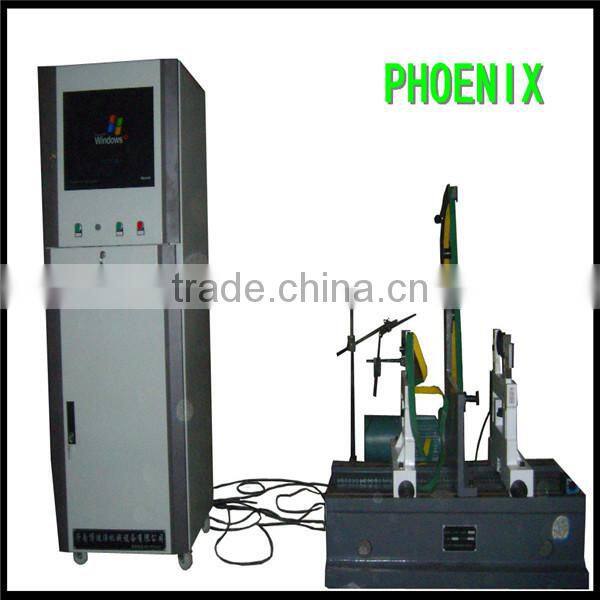

transfer pump impeller balancing apparatus picture
YYQ-50A series balancer

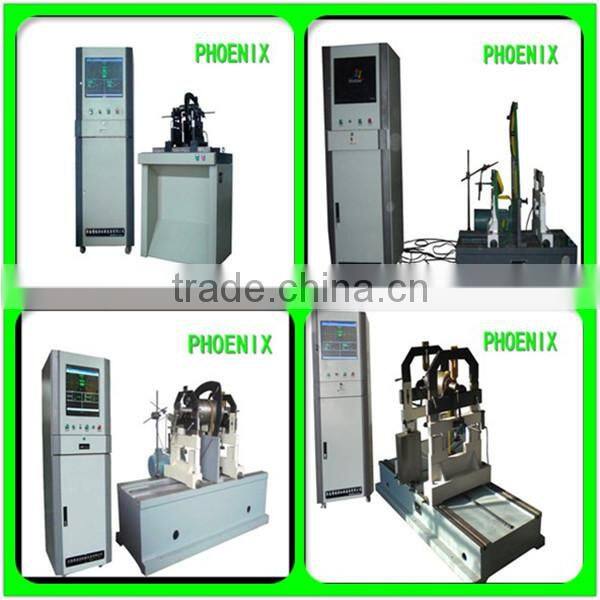

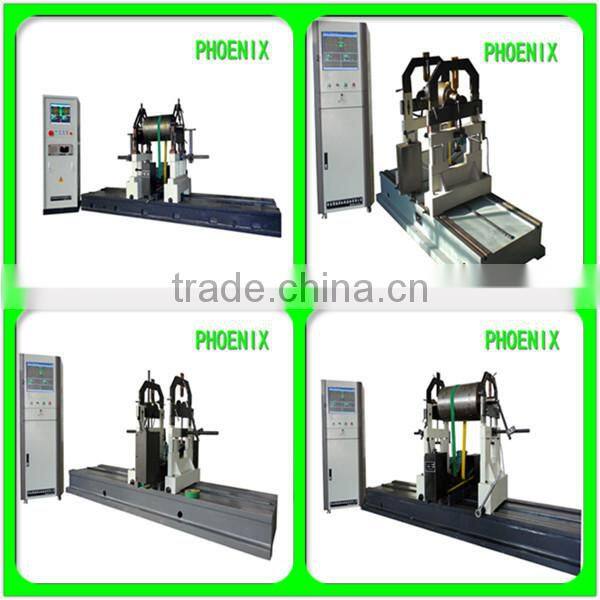

YYQ-50A Series balancer pictures
workpieces
