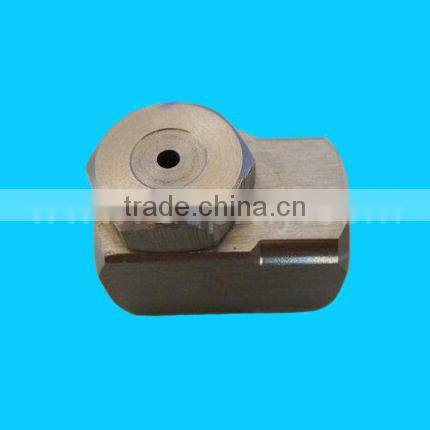

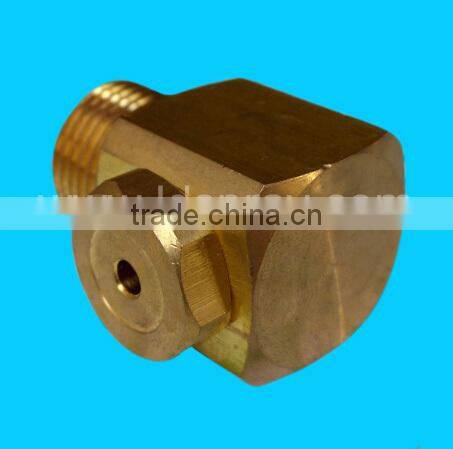

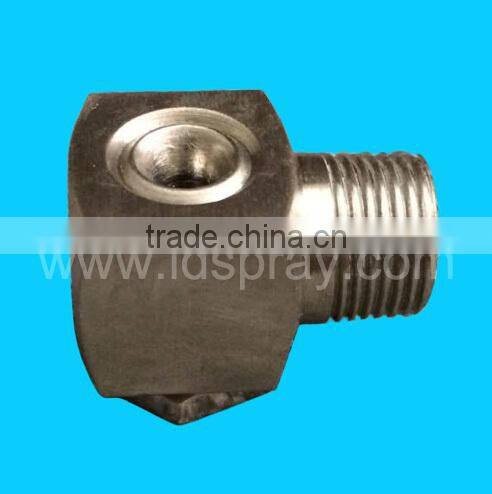

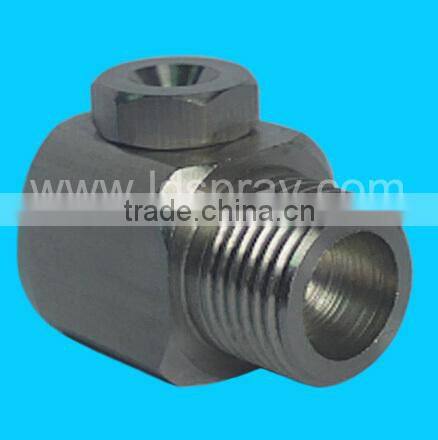

3/8 AA hollow cone spray nozzle
1.With the use of high-quality of Japan made excellent materials like 303, 304,316L and brass etc. the general metal AA/A hollow cone nozzles was precised processed and tested one by one which can be all achieved the GB country standard and coup with the customer ideal requirements.
2.Unique hollow cone spray design coped with the difficult of industrial waste gas treatment, bubble eliminate, liquid mixture and other related problems.
3.A degree of 90 was formed between the inlet axis and the spiracle cap. Design of axis and novel base of slope design can reduce the "drilling effect" of liquid rotational flow in the swirl chamber.
4.In shape it has the turning and straight two kinds which has uniform and subtle spray.
5.Generally often used for bubble eliminate in paper industry,liquid medicine mixture of chemical industry and dust removal, humidification and cooling in environmental protection industry etc.
5. A hollow cone spray will be showed when using and the spray area formed into a circle with a spray angle of from 51 to 144 degrees.
6. Evenness distribution and a range from small to medium droplet size of spray will be formed under a wide range of impact and pressure. Even in a condition of low pressure, it can also produce terrific results on the application of good atomizing with liquid.This kind of effect is particularly evident for requiring of fast heat exchange and effectively suspended droplets in the impact application.
7.Design mechanism of swirl construction: It's big and smooth passage will reduce or eliminate the phenomenon of clogging.
8.AA series metal nozzles with male thread connector and the A series metal nozzles with female thread connector
Spray Pattern:
Standard Flow rate:
Wide angle Flow Rate:

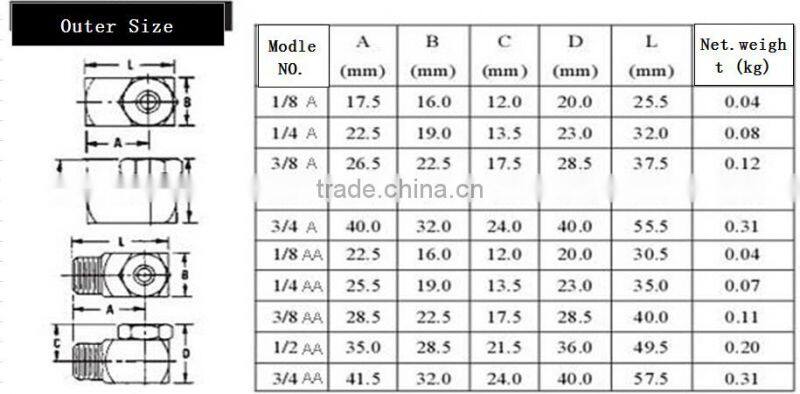

Demension:
Our Advantages:
1.You are getting 100% factory price!!
we have cooperated factory in Dongguan which have hundreds machines and 400 workers.
2.We can customize for you,and goods can be your brand as your requirements.
3. We have strong sales team,have a very quick reply within 6hours.
and our sales person have big pentence and strong responsibility to customers.
4.We accept samples order,small quantity samples we can send you for free
Your Questions:
1.How to order & How to Pay?
You contact us let me know which product you want to buy,then we make contract for you,after you comfirmed the contract , you pay it , then we arrange to send out the goods within the valid delivery time.
2.How Long & How to delivery ?
Some items if we have stock, after get your payment,1-2days we can send it out; if no stock,normally need 4-6workdays for us prepare well the goods. If by express, such as DHL/Fedex/UPS, transportation time about 3-5workdays, if by sea, transportation time about 1month.
3. Good or Money can be returned ?
Yes, if the goods be demaged or lost or not your size,, or other reasonable reasons,can be returned.
4. Do you have a quality guarantee or warranty?
Yes, all our products have a 12-month warranty basic on normal environment. if you need other guarantees,we can talk it , and reach an agreement
