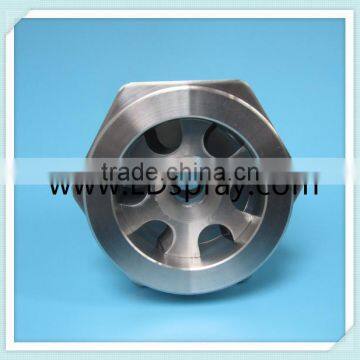

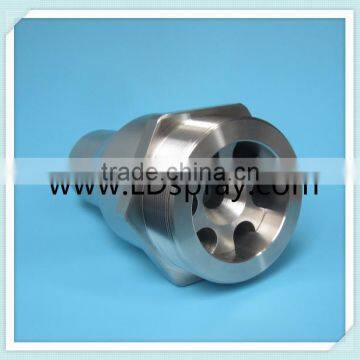

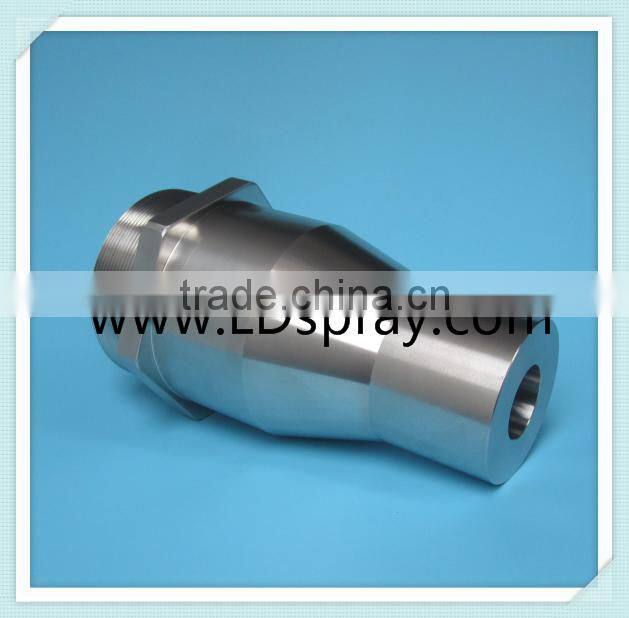

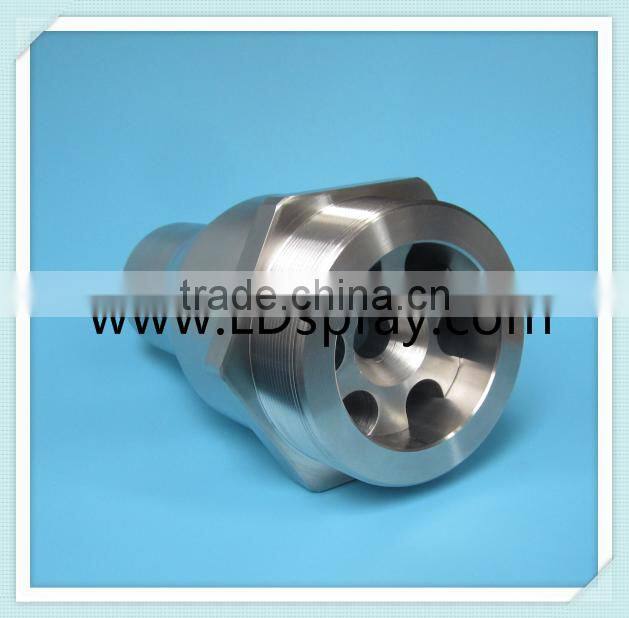

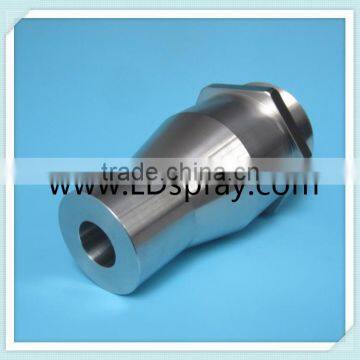

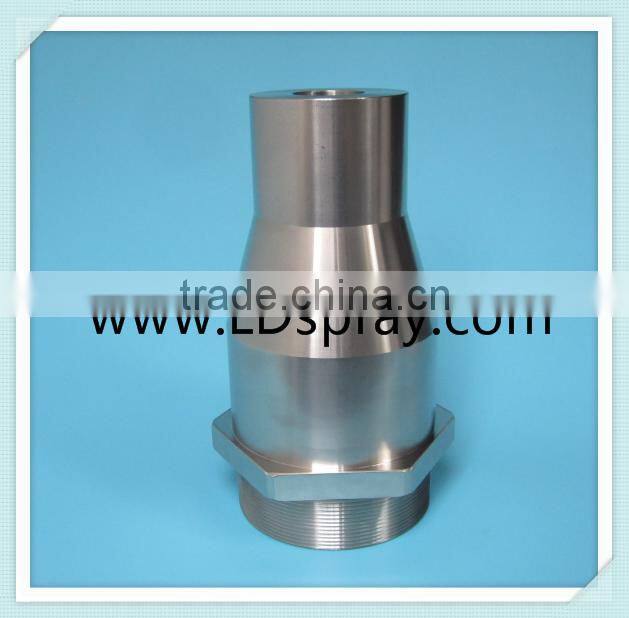

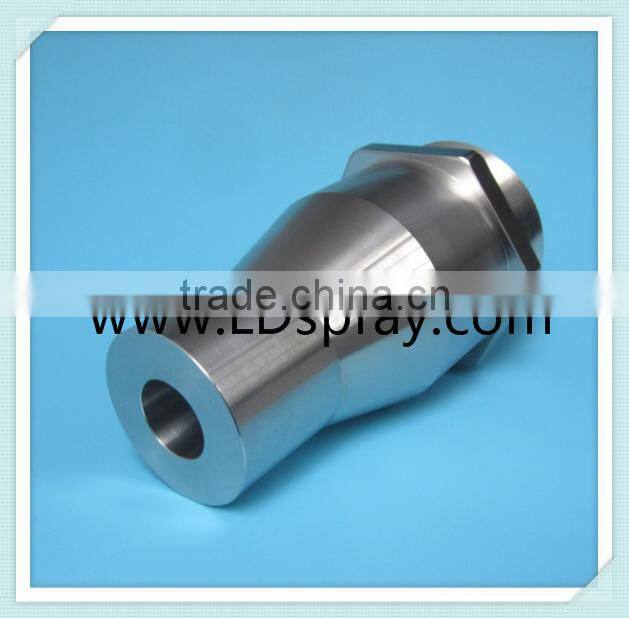

15 or 20 or 30 degree Full cone /Narrow angle injector spray nozzle
• Narrow spray angles
• High velocity
• Male and female connections
• Flanged connections available
• Coarse and extremely hard driving
spray with even distribution
Spray pattern: Full Cone
Spray angles: 15°, 20° and 30°
Flow rates: 7.1 to 1220 gpm
(Special flow rates available)

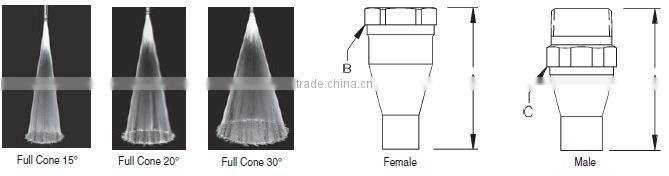

Spray pattern drawings :
Flow Rates and Dimensions
Full Cone, 15°, 20° and 30° Spray Angles, 3/4" to 6" Pipe Sizes
| Male or Female Pipe Size | K Factor | Gallons Per Minute @ PSI | Approx. Orifice Dia.(in.) | Dimensions for metal Only (in.) | Wt. (lbs.) | |||||||||
| 10 PSI | 20 PSI | 30 PSI | 40 PSI | 60 PSI | 80 PSI | 100 PSI | A | B | C | PVC | Metal | |||
| 3/4 | 2.4 | 7.1 | 9.83 | 11.9 | 13.6 | 16.5 | 18.9 | 20.9 | 0.30 | 3.25 | 1.38 | 1.12 | 0.09 | 0.75 |
| 1 | 4.81 | 14.2 | 19.7 | 23.8 | 27.2 | 32.9 | 37.7 | 41.9 | 0.41 | 3.50 | 1.75 | 1.38 | 0.12 | 1.00 |
| 1 1/4 | 7.2 | 21.3 | 29.5 | 35.7 | 40.8 | 49.4 | 56.6 | 62.8 | 0.48 | 4.00 | 2.00 | 1.75 | 0.25 | 1.25 |
| 1 1/2 | 10.4 | 30.7 | 42.6 | 51.5 | 59.0 | 71.4 | 81.7 | 90.7 | 0.60 | 5.00 | 2.50 | 2.00 | 0.44 | 2.25 |
| 2 | 19.2 | 56.8 | 78.6 | 95.1 | 109 | 132 | 151 | 168 | 0.80 | 6.00 | 3.00 | 2.50 | 0.82 | 2.5 |
| 2 1/2 | 28.8 | 85.1 | 118 | 143 | 163 | 198 | 226 | 251 | 0.97 | 7.00 | 3.25 | 3.00 | 1.37 | 5.75 |
| 3 | 42.1 | 124 | 172 | 208 | 238 | 288 | 330 | 366 | 1.16 | 8.00 | 3.84 | 3.50 | 1.87 | 6.25 |
| 4 | 76.1 | 225 | 311 | 377 | 431 | 522 | 597 | 663 | 1.60 | 10.0 | 5.00 | 4.50 | 4.50 | 15.0 |
| 6 | 140 | 414 | 573 | 694 | 794 | 961 | 1100 | 1220 | 2.13 | 13.5 | 7.19 | 6.62 | 6.12 | 35.0 |
| Flow Rate ( GPM ) = K (PSI ) 0.47 | ||||||||||||||
| Standard Materials: Brass, 316 Stainless Steel, PVC, Polypropylene and PTFE. | ||||||||||||||
Our products show:
1. Metal parts phosphate ;
2. High-pressure washing ;
3. Chemical cleaning on printed circuit boards ;
4. Cleaning waste gas of pipe and washing tower ;
5. Cooling in Steel industry ;
6. Cooling and cleaning gas ;
7. Control dust ;
8. Deal with metal ;
9. Deal with Chemical reactions ;
10. Deal with other heat exchange .
Why the customer like to choose us?
Our Advantages:
1.You are getting 100% factory price!!
2.We can customize for you,and goods can be your brand as your requirements.
3.We have strong sales team,have a very quick reply within 6hours.
4.We accept samples order,small quantity samples we can send you for free.
Your Questions:
1.How to order & How to Pay?
You contact us let me know which product you want to buy,then we make contract for you,after you comfirmed
the contract , you pay it , then we arrange to send out the goods within the valid delivery time.
2.How Long & How to delivery?
Some items if we have stock, after get your payment,1-2days we can send it out; if no stock,normally need 4-
6workdays for us prepare well the goods. If by express, such as DHL/Fedex/UPS, transportation time about 3-
5workdays, if by sea, transportation time about 1 month.
3.Goods or Money can be returned?
Yes, if the goods be demaged or lost or not your size,, or other reasonable reasons,can be returned.
4.Do you have a quality guarantee or warranty?
Yes, all our products have a 12-month warranty basic on normal environment. if you need other guarantees,we
can talk it , and reach an agreement.
100% factory price for you,and we warmly welcome you to visit us in
the future.
Kevin's contact infos:
Mob:+86-180-3832-3325;
Skype:1
Tel:+(0086)0769-8258-6032;
Fax:+(0086)0769-8300-3351;
