Specifications
high presure and low pressure mist system1. be used for cooling / humidifying
2. have stock
high presure and low pressure mist system
2. Ceramic plunger Italy seal NSK bearing stainless steel cover
1. Pump Type: Axial Pump
2. Flow Rate: 0.3L/min , 1L , 2L,,, etc
3. Power: 120W, single phase(can do different voltage and rate)
4. Motor Speed: 1400RPM
5. Tubing Size: 3/8" (9.52mm)
6. Working Pressue: 60bar
7. Droplet size: 5-40 Micron
9. Accessories List: 15m hose, 13pcs of 0.15mm nozzles, 14pcs of brass connectors

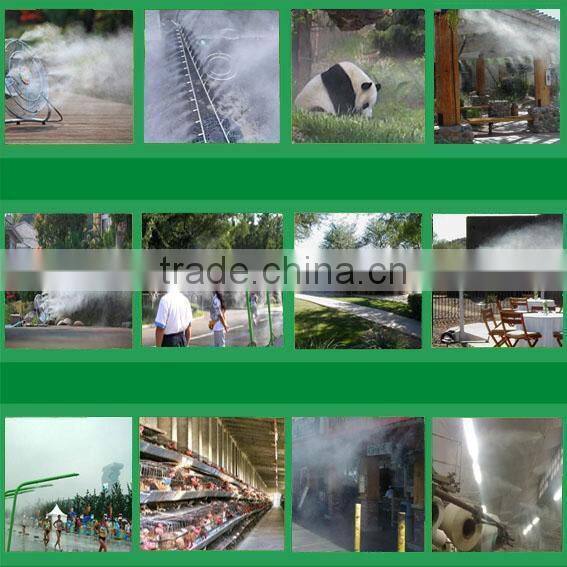

Functions:
1. Cooling
Residential cooling, outdoor cooling, commercial place cooling
2. Humidification
Industrial, agricultural and horticultural: green house, garden, livestock farming
3. Dedusting and Deodorization
Industry process, bulk powder, cement plant, foundry dust, fly ash control, waste transfer, recycling process
4. Insect Control
Please use water-soluble chemical to kill insect.
We can also supply all the accessories separately, such as nozzle, connectors, hose and hose cutter.
1. Fog Nozzle:
Orifice diameter: 0.1mm up to 0.5mm, usually we offer 0.15mm
Working pressure: 60bar
Body material: 304ss, brass and 316ss
Orifice material: ceramic
2. 3/8 Brass Connector:
Material: brass
Nozzle thread: 10/24
Tubing Size: 3/8" (9.52mm)
3. PE Hose:
Outer diameter: 3/8"
Send Inquiry to This Supplier
