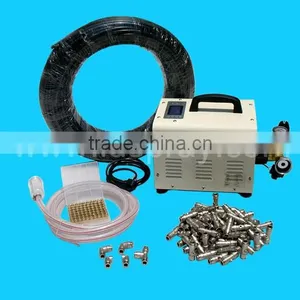

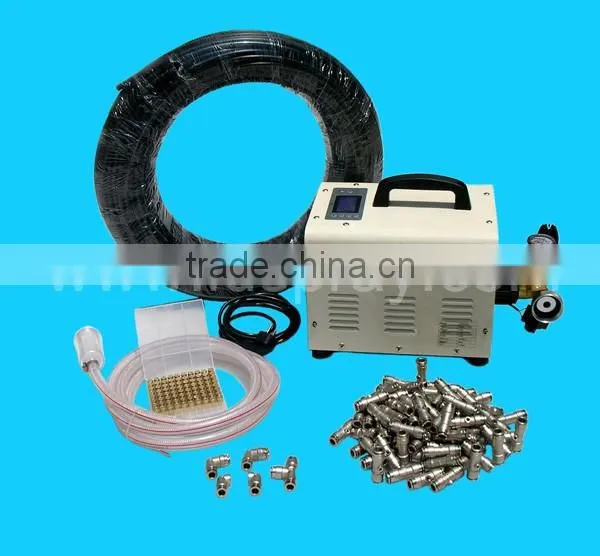

Factory directly sales outdoor spraying cooling system

Factory directly sales outdoor spraying cooling system

Feature:

1.Pump Type: Axial Pump(3plungers);
2.Flow Rate: 3L/min;
3.Power: 220V, single phase(can do different voltage and rate);
4.Pump Motor Power: 750KW;

5.Tubing Size: 3/8" (9.52mm);

6.Working Pressue: 60bar;

7.Droplet size:  < 7μm;

8.Accessories List: 50m hose, 45pcs of nozzles and 46pcs of connectors.

Our products show:

Fog pump features :
1.Different fog pump will configurated different quantity nozzles;
2.Working pressure could be adjustable ,from 0 KG to 80 KG;
3.With water protection switch , automatic power off when without water;
4.With water stop valve ,when high pressure pump stop working ,it's will prevent
water continue to spray system ;
5.With timer control , automatic control the spraying time and stop time ;
6.With fine filter , filter the impurities in water, prevent the nozzle blocking.

Warm prompt:

About engine oil

1.Before deliver the fog system , we were asked to extract the engine oil , So when you get the
   goods , please add the engine oil firstly ;
2.High quality mobil motorcycle engine oil or high quality car engine oil ;
3.Each time please don't pull too much , never let the engine oil overflow ;
4.Every 100 hours to 120 hours need to replace the oil at a time .

The way of supply water :
1.Using Tap water ;
2.Using Water tank ;

NOTE
When you using water tank :
Fog pump don't have the water absoption functions , when you need to using the water tank , please
buy a booster pump too , in order to keep the machine functions well .

Accessories for fog machine:

Meanwhile except for the Fog Pump ,we also supply all kinds of accessories, such as mist nozzles, connectors, hose and hose cutter.

Fog Pump : 0.3L , 1L, 2L , 3L, 7L , 11L, 15.4L

Fog Nozzle:
Thread size: 10/24" / 3/16" / 12/24" / 1/8"
Orifice size: 0.08mm/ 0.1mm/ 0.15mm/0.2mm/0.3mm,,,0.8mm
Material : Brass/ Brass coated with nickel / SS

Nozzle Connectors:
Threaded type material : Brass / Brass coated with nickel
Quick coupling type material: Brass coated with nickel
Thread size with fog nozzle: 10/24" / 3/16" / 12/24" / 1/8"

High pressure misting / fog pipe:
Pipe Size: 3/8" (9.52mm)
Material: PE or Nylon

How choose the fog nozzles ?

If nozzles orifice =0.10mm ; Spraying capacity is 10~30cc/min ;

If nozzles orifice =0.15mm ; Spraying capacity is 20~46cc/min ;

If nozzles orifice =0.20mm ; Spraying capacity is 49~89cc/min ;

If nozzles orifice =0.30mm ; Spraying capacity is 80~145cc/min ;

If nozzles orifice =0.40mm ; Spraying capacity is 95~178cc/min ;

If nozzles orifice =0.50mm ; Spraying capacity is 130~243cc/min .

1.Cooling

Residential cooling, outdoor cooling, commercial place cooling;

2.Humidification

Industrial, agricultural and horticultural: green house, garden, livestock farming;

3.Dedusting and Deodorization

Industry process, bulk powder, cement plant, foundry dust, fly ash control, waste transfer, recycling process;

4.Insect Control

Using water-soluble chemical to kill insect.

Why the customer like to choose us?
Our Advantages:

1.You are getting 100% factory price!!
   we have cooperated factory in Dongguan which have hundreds machines and 400 workers,100% OEM.

2.We can customize for you,and goods can be your brand as your requirements.

3.We have strong sales team,have a very quick reply within 6hours.
   and our sales person have big pentence and strong responsibility to customers.

4.We accept samples order,small quantity samples we can send you for free.

Your Questions:

1.How to order & How to Pay?
You contact us let me know which product you want to buy,then we make contract for you,after you comfirmed the contract , you pay it , then we arrange to send out the goods within the valid delivery time.

2.How Long & How to delivery?
Some items if we have stock, after get your payment,1-2days we can send it out; if no stock,normally need 4-6workdays for us prepare well the goods. If by express, such as DHL/Fedex/UPS, transportation time about 3-5workdays, if by sea, transportation time about 1month.

3.Good or Money can be returned?
Yes, if the goods be demaged or lost or not your size,, or other reasonable reasons,can be returned.

4.Do you have a quality guarantee or warranty?
Yes, all our products have a 12-month warranty basic on normal environment. if you need other guarantees,we can talk it , and reach an agreement.

100% factory price for you,and we warmly welcome you to visit us in the future.
