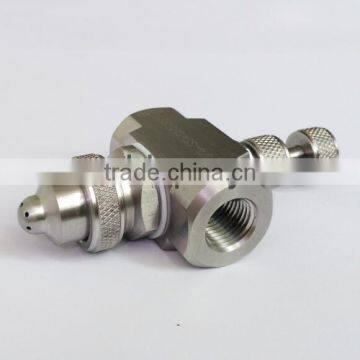

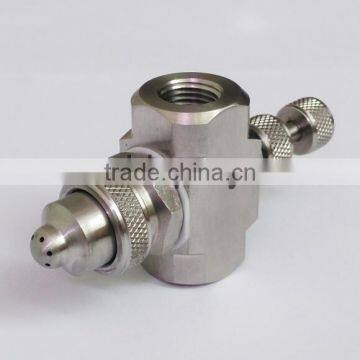

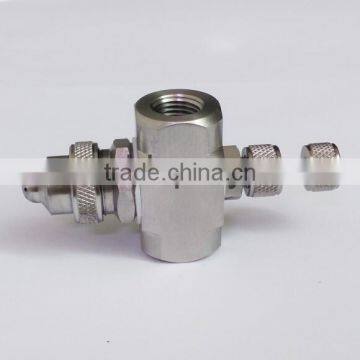

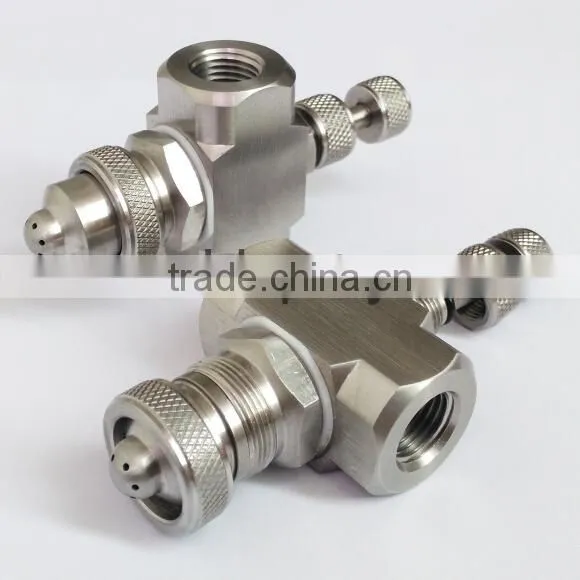

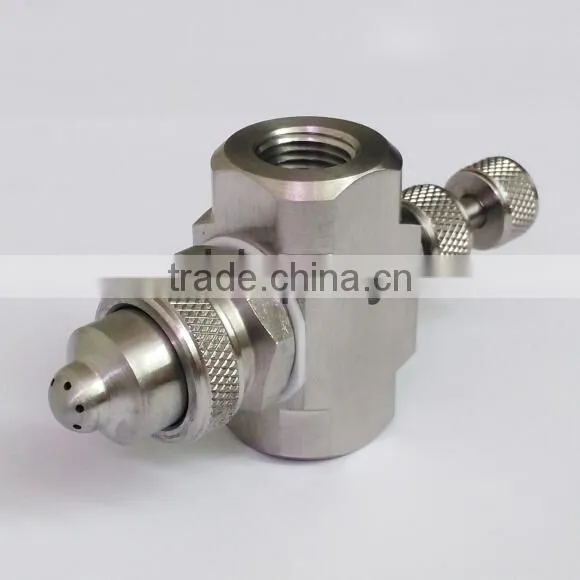

Stainless Steel Round Spraying Air Atomized Nozzles
Air atomizing nozzle principle:
Through compressed air and water (other liquid) mixed to produce the atomized particles.
Method of use:

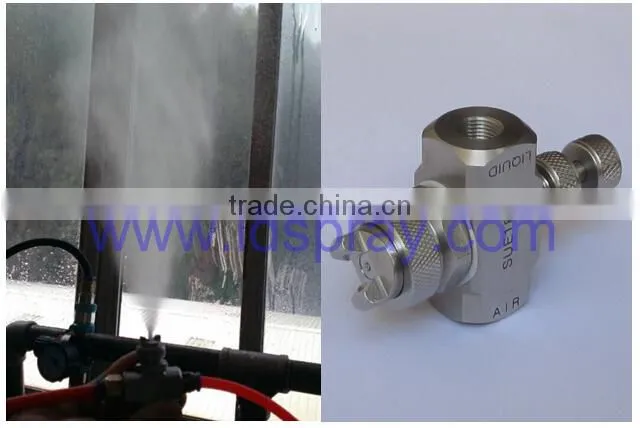

1. One side be marked with " LIQUID " be connected with water ; and the another side
marked with " AIR " be connected with compressed air ;
2.Generally the compressed air pressure at 1 bar to 5 bar , and water pressure at 1 bar to 5 bar ;
3.If the the compressed air pressure is greater than the water pressure about 0.5 bar to 1 bar , it's
will create a perfect spraying effection ;
4.The needle valve can adjust the size of the spraying flow rate .

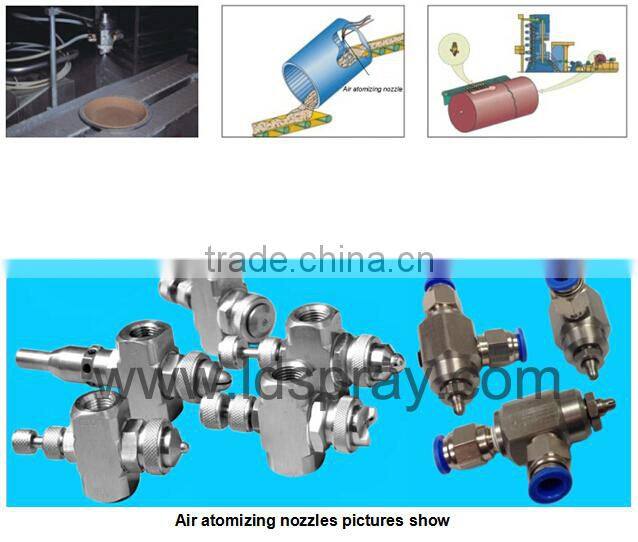

Applications of the two pattern

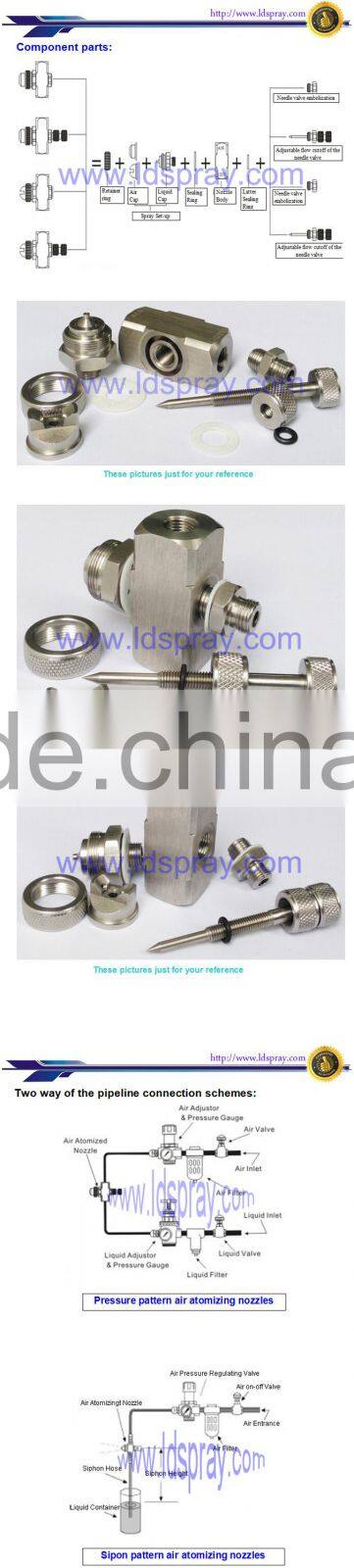

1.Sipon pattern air atomizing nozzles :
No need the water pressure , just need 2 KG compressed air pressure could create a perfect effection ;
Often the Sipon nozzle has a smaller flow rate than pressure one ;
At present , just the flat fan air atomizing nozzles and the round air atomizing nozzles using the Sipon pattern .

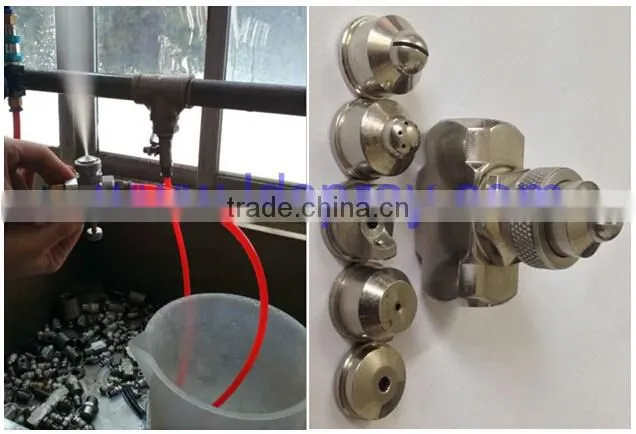

2.Pressure pattern air atomizing nozzles :

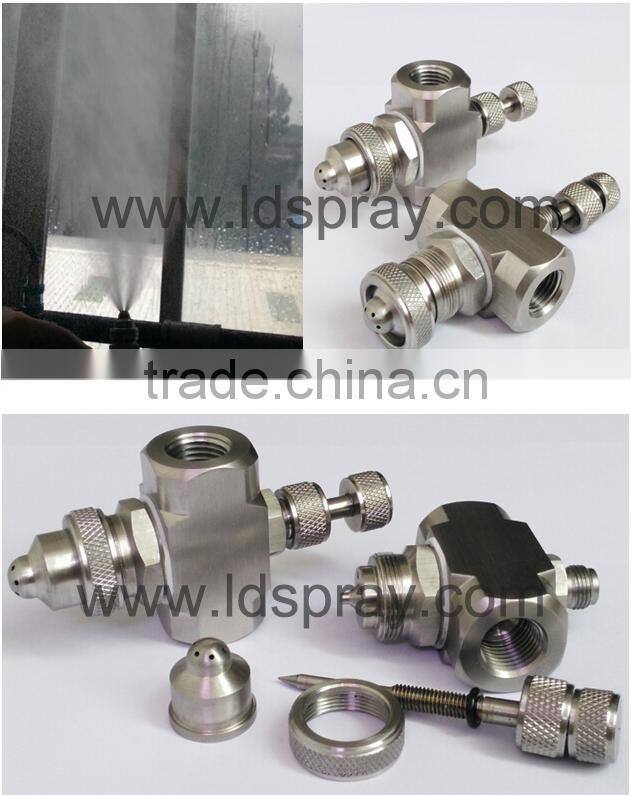

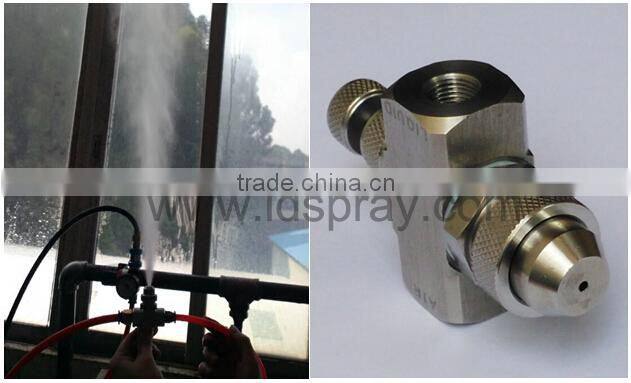

a.Air atomizing nozzles with single round hole ,
Can creating aprox 30 degree circle spraying pattern , spraying distance can reach 4-6 metre , be very suitable for the long distance and narrow angle conditions ;
When reduce the spraying distance via the needle valve , you can using it for spraying
Lubricants and Anti-rust agent ;
b.Flat fan air atomizing nozzles ,
Spraying the finest fog particles from all type of the air atomizing nozzles ;
It's a good way to keep the removable paper plat moisturizing, and be widely used in the additive field ;
c. Wide angle air atomizing nozzles six holes ,
Spraying angle could reach to 80 degree , one nozzle could covering 6 -10 square area;
Often be used in the large space Removing dust , Cooling, Humidification , or removing the peculiar smell .
d.External mixed flat fan air atomizing nozzles ,
Be used for the liquid easy caused clogging or for the liquid with viscosity .
1. Moistening and derusting ;
2. Air moistening ;
3. Chemical treatment ;
4. Dust suppression ;
5. Spray liquid5. Spray liquid ;
6. Humidify tobacco leaf ;
7. Tablets coating ;
8. Cooling gas ;
9. Sterilization ;
10. Cooling compenert ;
11. Spraying candle on fruit .
We just listed the Common Air Atomizing Nozzles , if you don't find the right type you want , please let us know !
Why the customer like to choose us?
Our Advantages:
1.You are getting 100% factory price!!
we have cooperated factory in Dongguan which have hundreds machines and 400 workers,100% OEM.
2.We can customize for you,and goods can be your brand as your requirements.
3.We have strong sales team,have a very quick reply within 6hours.
and our sales person have big pentence and strong responsibility to customers.
4.We accept samples order,small quantity samples we can send you for free.
Your Questions:
1.How to order & How to Pay?
You contact us let me know which product you want to buy,then we make contract for you,after you comfirmed the contract , you pay it , then we arrange to send out the goods within the valid delivery time.
2.How Long & How to delivery?
Some items if we have stock, after get your payment,1-2days we can send it out; if no stock,normally need 4-6workdays for us prepare well the goods. If by express, such as DHL/Fedex/UPS, transportation time about 3-5workdays, if by sea, transportation time about 1month.
3.Good or Money can be returned?
Yes, if the goods be demaged or lost or not your size,, or other reasonable reasons,can be returned.
4.Do you have a quality guarantee or warranty?
Yes, all our products have a 12-month warranty basic on normal environment. if you need other guarantees,we can talk it , and reach an agreement
100% factory price for you,and we warmly welcome you to visit us in the future.
