Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WD
Model Number:
micro liquid pumps
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
WD
Model Number
micro liquid pumps
Theory
Centrifugal Pump
Structure
Single-stage Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, Electricity
Pressure
High Pressure
Application
Fire
Specifications
micro liquid pumpsFlow:6.3-400m3/h
Head:5-132m
Rotary speed:1450.,2900r/min
Power0.55-110kw
micro liquid pumps

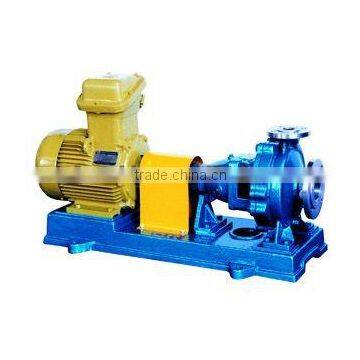

IH Single Stage Chemical Centrifugal Pump
Product Introduction
IH the chemical pump is the single stage single suction (axial inspiration) the cantilever centrifugal pump, does not have corrosive, the viscosity similar water liquid for the transportation including the solid particle. Its mark, the rated performance and the size equivalent use international standard ISO2858, has the performance range to be broad, the efficiency high, “three the level is high and characteristics and so on service convenience, its efficiency ratio F pump enhances 5% equally, is the national promotion energy conservation product. IH chemical industry pump delivery medium temperature for - 20°C~105 °C . when need uses the double-end surface seal cooling system, may transport the medium temperature for 300 below. Is suitable to professions and so on chemical industry, petroleum, metallurgy, electric power, papermaking, food, drugs manufacture, environmental protection, wastewater disposal and synthetic fiber uses in transporting each kind of corrosion or does not permit the pollution being similar in the water medium.
Range of Application:
Widely applicable for petrochemical metallurgy , synthetic fiber, pharmacy, foodstuff, brewage and other industrial areas to handle various chemical mediums and others similar to water.
Type Designation
IH 80-65-160 A
IH - International standard chemical industry centrifugal pump
80 - Inlet diameter(mm)
65 - Outlet diameter(mm)
160 -Nominal diameter of impeller(mm)
A - Primary cutting of the impeller
65 - Outlet diameter(mm)
160 -Nominal diameter of impeller(mm)
A - Primary cutting of the impeller
Technology Parameters:
Flow:6.3-400m3/h
Head:5-132m
Rotary speed:1450.,2900r/min
Power0.55-110kw
Diameter of the pump inlet:50-200mm
