Home > Products > New Products > Magnetic Drive Circulation Pump

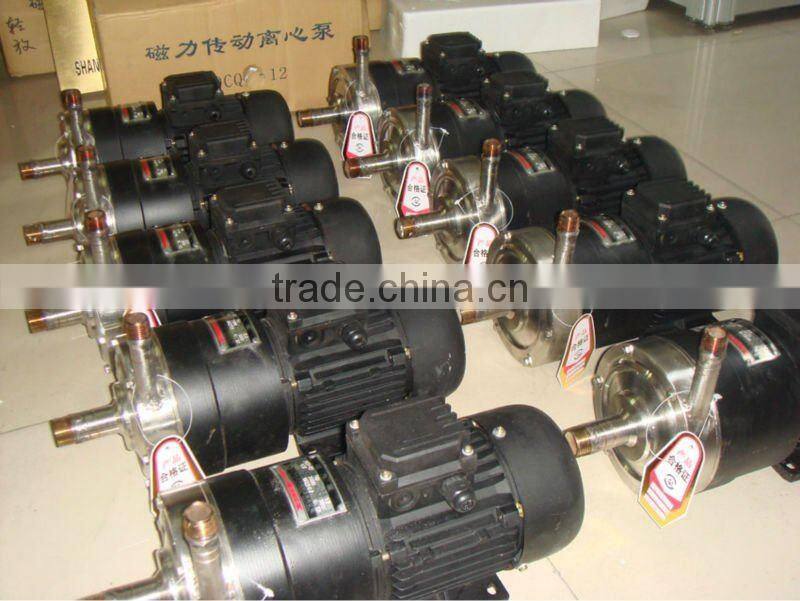

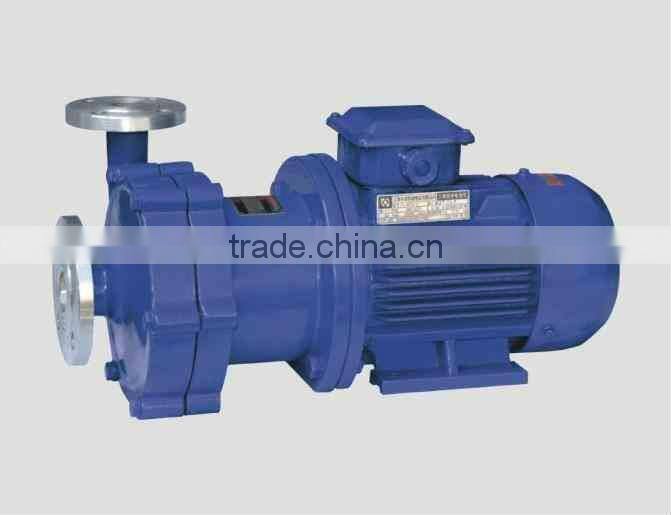

Magnetic Drive Circulation Pump
- NINGBO
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | WD | |
| Model Number | magnetic drive circulation pump | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Electricity | Pressure | Low Pressure | |
| Application | Maritime |
Product Description
Specifications
magnetic drive circulation pumpFlow:0.4-200m3/h Head:5-80m
Rotary speed:1450,2900r/min
Power:0.12-90kw
Caliber:10-100mm
magnetic drive circulation pump
1.Magnetic drive centrifugal pumps
2.Advanced process
3.Full seal,
4.Zero leakage
5.Corrosion resistance.
The following performance parameter is only for reference
Type | Lift head (m) | Flow (L/min) | Motor power (kw) | Rotation speed (r/min) | Voltage (v) | Material |
8CQ-1.2 | 1.2 | 16 | 0.025 | 2800 | 220 | Reinforced polypropylene |
10CQ-3 | 3 | 19 | 0.025 | 2800 | 220 | Reinforced polypropylene |
16CQ-8 | 8 | 25 | 0.12 | 2800 | 380/220 | Reinforced polypropylene |
20CQ-12 | 12 | 50 | 0.37 | 2800 | 380/220 | Reinforced polypropylene |
25CQ-15 | 15 | 110 | 1.1 | 2800 | 380 | Reinforced polypropylene |
32CQ-15 | 15 | 110 | 1.1 | 2800 | 380 | Reinforced polypropylene |
32CQ-25 | 25 | 110 | 1.5 | 2800 | 380 | Reinforced polypropylene |
40CQ-20 | 20 | 180 | 2.2 | 2800 | 380 | Reinforced polypropylene |
50CQ-25 | 25 | 240 | 4 | 2800 | 380 | Reinforced polypropylene |
16CQ-8 | 8 | 25 | 0.12 | 2800 | 380/220 | Stainless steel |
20CQ-12 | 12 | 50 | 0.37 | 2800 | 380/220 | Stainless steel |
25CQ-15 | 15 | 110 | 1.1 | 2800 | 380 | Stainless steel |
32CQ-15 | 15 | 110 | 1.1 | 2800 | 380 | Stainless steel |
32CQ-25 | 25 | 110 | 1.5 | 2800 | 380 | Stainless steel |
40CQ-20 | 20 | 180 | 2.2 | 2800 | 380 | Stainless steel |
40CQ-40 | 40 | 200 | 4 | 2800 | 380 | Stainless steel |
50CQ-25 | 25 | 240 | 4 | 2800 | 380 | Stainless steel |
50CQ-40 | 40 | 200 | 4 | 2800 | 380 | Stainless steel |
50CQ-50 | 45 | 220 | 5.5 | 2800 | 380 | Stainless steel |
65CQ-25 | 25 | 280 | 5.5 | 2800 | 380 | Stainless steel |
65CQ-35 | 35 | 450 | 7.5 | 2800 | 380 | Stainless steel |
80CQ-35 | 35 | 850 | 11 | 2800 | 380 | Stainless steel |
80CQ-50 | 50 | 850 | 15 | 2800 | 380 | Stainless steel |
100CQ-32 | 32 | 1000 | 22 | 2800 | 380 | Stainless steel |
100CQ-50 | 50 | 1500 | 37 | 2800 | 380 | Stainless steel |
