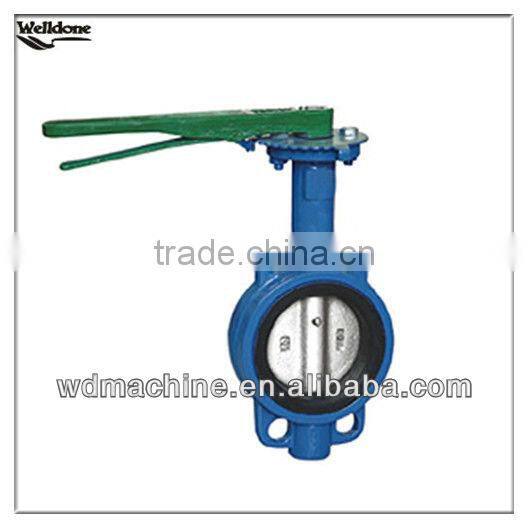

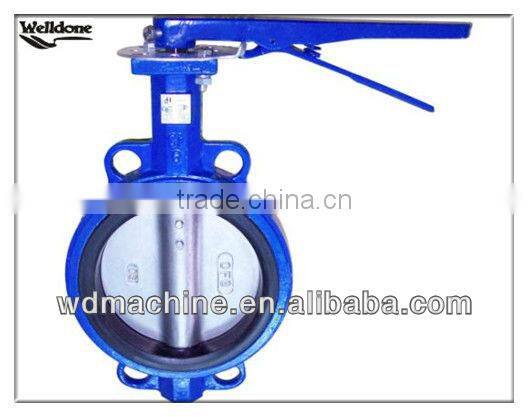

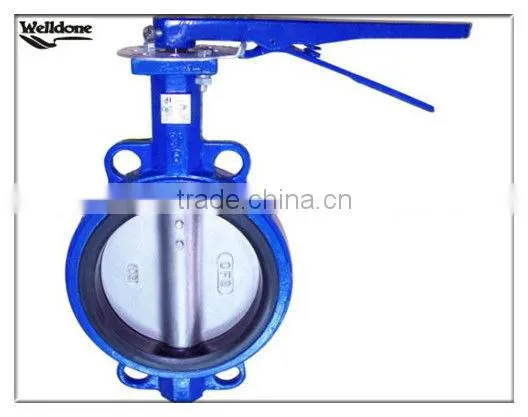

Wafer Soft Seal Butterfly Valve

Wafer Soft Seal Butterfly Valve thumbnail-1
Wafer Soft Seal Butterfly Valve photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Butterfly
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Yongjia Welldone Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Butterfly
Pressure Medium Pressure
Power Manual
Material Casting
Temperature of Media Medium Temperature
Media Water
Place of Origin Zhejiang, China

Specifications

Wafer Soft Seal Butterfly Valve

Wafer Soft Seal Butterfly Valve

Wafer Soft Seal Butterfly Valve

Size: DN40-DN1200

End Flange: ANSI B16.1

Face to face: ANSI B16.10

Normal Pressure: 1.6Mpa

Body: CI/DI/WCB/ALB/CF8/CF8M

Disc: DI/ALB/rubber lined

Stem: 416/304/316/431/17-4pH

Seat: NR/Hypalon/EPDM/PTFE

Suitable temperature: -45c-150c

Medium: Water, air, gas

Wafer Soft Seal Butterfly Valve

Main connection dimension and outline dimension
unit: mm
DN Main Connection Dimension
Main Outline Dimension 1.0MPa 1.6MPa 2.5MPa
L H H0 A B D0 n-d D0 n-d D0 n-d
50 43 63 235 270 110 110 4-14 125 4-18 125 4-18
65 46 70 250 270 110 130 4-14 145 4-18 145 4-18
80 46 83 275 270 110 150 4-18 160 8-18 160 8-18
100 52 105 316 270 110 170 4-18 180 8-18 180 8-18
125 56 115 340 310 110 200 8-18 210 8-18 210 8-18
150 56 137 376 310 110 225 8-18 240 8-22 240 8-22
200 60 164 430 353 150 280 8-18 295 8-22 295 12-22
250 68 206 499 353 150 335 12-18 350 12-22 355 12-26
300 78 230 570 380 150 395 12-22 400 12-22 410 12-26

Wafer Soft Seal Butterfly Valve
Main connection dimension and outline dimension
unit: mm
DN Main Connection Dimension
Main Outline Dimension 1.0MPa 1.6MPa 2.5MPa
L H H0 A B D0 n-d D0 n-d D0 n-d
50 43 63 306 180 200 110 4-14 125 4-18 125 4-18
65 46 70 321 180 200 130 4-14 145 4-18 145 4-18
80 46 83 346 180 200 150 4-18 160 8-18 160 8-18
100 52 105 387 180 200 170 4-18 180 8-18 180 8-18
125 56 115 411 180 200 200 8-18 210 8-18 210 8-18
150 56 137 117 270 280 225 8-18 240 8-22 240 8-22
200 60 164 572 270 280 280 8-18 295 8-22 295 12-22
250 68 206 646 270 280 335 12-18 350 12-22 355 12-26
300 78 230 738 380 420 395 12-22 400 12-22 410 12-26
350 78 248 761 380 420 445 12-22 460 16-22 470 16-26
400 102 289 877 450 470 495 16-22 515 16-26 525 16-30
450 114 320 938 480 490 550 16-22 565 20-26 585 20-30
500 127 343 993 480 490 600 20-22 620 20-26 650 20-33
600 154 413 1131 480 490 705 20-26 725 20-30 770 20-36
700 165 478 1476 640 660 810 24-26 840 24-30 840 24-36
800 190 525 1533 640 660 920 24-30 950 24-33 950 24-39
900 203 585 1655 750 860 1020 24-30 1050 28-33 1050 28-39
1000 216 640 1765 850 900 1020 28-30 1160 28-36 1170 28-42
1200 254 755 1995 850 900 1340 32-33 1380 30-39 1390
