Stainless Steel Float Valves
- NINGBO
- T/T Money Gram
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Other, ss316 ball valve | |
| Pressure | Medium Pressure | Power | Manual | |
| Material | Forged | Temperature of Media | Normal Temperature | |
| Media | Other, gas, oil, water, steam | Port Size | 1/4"--4" | |
| Place of Origin | Zhejiang, China | Model Number | stainless steel float valves | |
| Brand Name | WD |
Product Description
Specifications
stainless steel float valves1.Flange end
2.Trunnion Mounted type
3.Two pieces body
4.API certificate

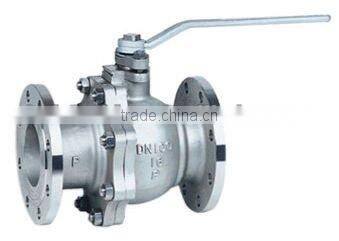

stainless steel float valves
API Stainless Steel Ball Valve

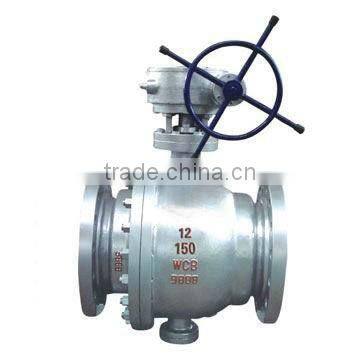

Class150 cast steel trunnion type ball valve
Characteristics of API Ball Valve
1. Design and manufacture of product according to American state standard ANSI B16.34, American petroleum institute standard API608 API6D.
2. Liquid resistance smallest of all type of valve.
3. Open quickly, only turn on 90 degree may finish open and close.
4. Seat material use teflon or R-teflon, low friction, seal reliable open and close lightly.
5. Movement of ball on the middle of valve seat has wipe function so may suit medium of suspending granule.
6. Stem use back seal and hyperbatic structure which may prevent medium to striking stem on the condition of pressure.
7. According to the need of consumer, may design for anti-static electricity, fireproof and use a locker to prevent wrong operator.
8. Body of ball can be floated or fixed accordance with the of strength of opening and closing. Seat of fixed ball valve floatable realize seal purpose depend on piston effect of medium pressure so to lighten the strength of open and close.
STD (Fire -Proof,Electricity Protect)
| Type | Desing And Manufacture | Face to face /End to end | Flange Dimension | Pressure and Temperature | lnspection and test |
| Split flange ball valve | BS5351 API6D | ASME B16.10 | ASME B16.5 | ASME B16.34 | API598 |
| Fixed flange valve | API6D |
Pressure Test
| Nominal Pressure | Shell Test | Water Seal Test | Air Seal Test | |||
| MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | |
| 150 | 3.1 | 450 | 2.2 | 315 | 0.5-0.7 | 60-100 |
| 300 | 7.8 | 1125 | 5.6 | 815 | ||
| 600 | 15.3 | 2225 | 11.2 | 1630 | ||
| 900 | 23.1 | 3350 | 16.8 | 2440 | ||
| 1500 | 38.4 | 5575 | 28.1 | 4080 | ||
