Help CenterPressure Reducing Valve
US$ 1 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Pressure Reducing
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Class 150 Carbon Steel Ball Valve -2,carbon Steel Ball ValveNegotiableMOQ: 1 Piece -
Round Flange Ball Valve( Used in Gas Station ) / Aluminium Ball ValveNegotiableMOQ: 1 Piece
-
Forged Steel Swing Check Valve / Check ValveNegotiableMOQ: 1 Piece
-
High Pressue Hastelloy Ball ValveNegotiableMOQ: 1 Piece
-
T-d Type StrainerNegotiableMOQ: 1 Piece
Standard or Nonstandard
Standard
Structure
Pressure Reducing
Pressure
Medium Pressure
Power
Pneumatic
Material
Forged
Temperature of Media
Medium Temperature
Media
Water
Port Size
DN25-200
Place of Origin
Zhejiang, China
Brand Name
WD
Specifications

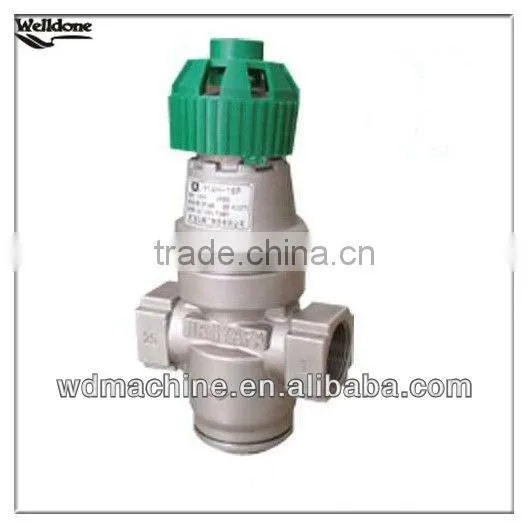

Direct Acting Bellows Pressure Reducing Valve
Direct Acting Bellows Pressure Reducing Valve Y14H/F
Structural Characteristic and Purpose
This reducing valve is direct acting bellows pressure reducing valve, mainly composed of valve seat, valve flap (steel ball), corrugated tube combined component and spring. Set the outlet pressure through adjusting spring, the opening of valve flap enlarged when the outlet pressure reduced, the opening of valve flap decreased when the outlet pressure reached to the set pressure. The valve pressure of the medium acts on the area of corrugated tube and transduce to adjusting spring, realizing the function of pressure reducing and regulating. This reducing valve is designed in meet of the need of energy saving. It has the characteristics of multi-function and light. It is widely applied on water, steam, air, oxygen, liquefied gas pipe of factory and hotel. You can adjust the pressure by rotating the plastic hand wheel, no need to use tool, the connection and installation is very convenient. The internal structure use corrugated tube, the sealing face has filtering mesh protecting device, which protect the internal parts from damage, and greatly prolong the service life.
Main Technical Parameters And Indexes Of Performance
Nominal pressure |
PN1.6Mpa |
Tested pressure of shell |
2.4Mpa |
Sealing test pressure |
1.76Mpa |
Max. inlet pressure |
1.6Mpa |
Pressure range of outlet |
0.05-1.0Mpa |
Min. differential pressure |
0.15Mpa |
Medium |
Water, steam, liquid, air, oxygen, nitrogen, etc. |
Operating temperature |
≤ 220 °C |
Material Of Main Component
Name of component |
Material of component |
Valve body, bottom cover |
CF8 |
valve cover |
casting aluminium alloy,CF8 |
valve flap Valve rod ,Valve seat |
CF8 |
bellows |
1Cr18Ni9Ti |
Membrane Handwheel |
Heat-resistant plastic |
Spring of main valve |
50CrVA |
Adjusting spring |
60Si2Mn |
