QJ Submersible Borehole Pump Deep Well Pump

QJ Submersible Borehole Pump Deep Well Pump thumbnail-1
QJ Submersible Borehole Pump Deep Well Pump photo-1
US$ 10 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
WD
Theory:
Other, Submersible pump
Structure:
Multistage Pump
Contact Supplier Request Quote Chat Now
Yongjia Welldone Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WD
Theory Other, Submersible pump
Structure Multistage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Gasoline
Pressure High Pressure
Application Submersible

Specifications

QJ submersible Borehole pump and water pump motor is integrated directly into the water to the work of the water equipment

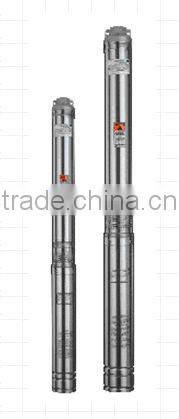

QJ submersible Borehole Pump deep well pump

Product Introduction:
QJ submersible Borehole pump and water pump motor is integrated directly into the water to the work of the water equipment, submersible pumps, diving motors, pipes, cables and activate the protection devices and other components.
It is suitable for extracting underground water from the deep well.
It can also be used for rivers, reservoirs, drains and other water projects mentioned.
It mainly used in irrigation and water for people and livestock in the mountain plateau,
Aldo for the cities, factories, railways, mines, the use of the site for drainage.
Main characteristics : 1. The electrical, water pumps integrates into the water running, simple structure, energy efficient, safe and reliable.
2.The tube wells, pipes without special requirements Yang, steel tube wells, tube, so can be used in pressure on the permit, pipe, hose, plastic pipes and other water pipes.
3.Handsome in appearance, light weight, noise and pollution-free, strong adaptability to the environment placed a substantial project cost savings will not affect the construction, the natural landscape.
4. Installation, use, maintenance-friendly simple, small footprint, do not have to build the pumping station.
Type Designation:
100 QJ 523-4
100 – Applicable minimum caliper (mm)
QJ – Borehole Pump
5 – Flow (m3/h)
23 –Head (m)
4 –motor power
Technology Parameters:
Flow:5-600m3/h;
Head:11-300m;
Rotary speed:2850r/min;
Caliber:150-400mm;
Medium temperature:≤40°C




Model
Diameter
mm
Flow
m 3 /h
Head
m
100QJ109-0.37
32/40
1
45
100QJ112-0.55
32/40
1
60
100QJ114-0.55
32/40
1
70
100QJ118-0.75
32/40
1
90
100QJ122-1.1
32/40
1
110
100QJ126-1.5
32/40
1
130
100QJ205-0.37
32/40
2
29
100QJ208-0.55
32/40
2
44
100QJ210-0.75
32/40
2
59
100QJ212-1.1
32/40
2
70
100QJ214-1.1
32/40
2
83
100QJ216-1.5
32/40
2
93
100QJ220-1.5
32/40
2
117
100QJ225-2.2
32/40
2
151
100QJ230-2.2
32/40
2
181
100QJ234-3
32/40
2
198
100QJ306-0.55
32/40
3
29
100QJ308-0.75
32/40
3
39
100QJ310-1.1
32/40
3
49
100QJ312-1.5
32/40
3
60
100QJ314-1.5
32/40
3
70
100QJ316-1.5
32/40
3
78
100QJ320-2.2
32/40
3
101
100QJ324-2.2
32/40
3
117
100QJ328-3
32/40
3
142
100QJ332-3
32/40
3
156
100QJ505-0.75
40/50
5
24
100QJ507-1.1
40/50
5
34
100QJ509-1.5
40/50
5
44
100QJ511-2.2
40/50
5
55
100QJ513-2.2
40/50
5
63
100QJ515-3
40/50
5
74
100QJ517-3
40/50
5
84
100QJ519-3
40/50
5
93
100QJ523-4
40/50
5
116
100QJ526-4
40/50
5
127
100QJ804-0.75
50
8
15
100QJ805-1.1
50
8
19
100QJ807-1.5
50
8
28
100QJ808-1.5
50
8
32
100QJ810-2.2
50
8
41
100QJ811-2.2
50
8
43
100QJ814-3
50
8
57
100QJ816-3
50
8
57
