Electric Diaphagm Pump/electric Water Pumps

Electric Diaphagm Pump/electric Water Pumps thumbnail-1
Electric Diaphagm Pump/electric Water Pumps photo-1
US$ 10 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WD
Model Number:
DBY
Contact Supplier Request Quote Chat Now
Yongjia Welldone Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name WD
Model Number DBY
Structure Diaphragm Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other
Pressure High Pressure
Application Other, oil,water, food and so on

Specifications

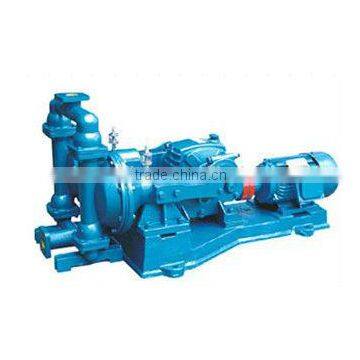

Electric Diaphragm Pump
This diaphragm pumps are the latest model at home.They are functioned to take out and suck liquid





Product Introduction:
This series of diaphragm pump is the latest type at home currently. It can be used to pump and suck up all liquids including various corrosive liquids, volatile, inflammable, explosive and virulent liquids with grains and high viscosity, ceramic glaze slurry, berry and glue or for the bottom oil recovery of oil tanker and temporary tank dump in. Its performance parameters are similar as those of German WLLDENPUMPS and America MARIOWPUMPS. The flow-through parts of the pump body adopt four kinds of material: stainless steel, fluorine rubber, neoprene and Chemgium fluorine rubber, neoprene and Chemgium fluorine lining.

Type Designation:
DBY – 40
DBY -  Diaphragm pump;
40 - Diameter of pump outlet and inlet(mm)

Technology Parameters:
Flow:0-20m3/h;
Head:30m;
Power:0.37-4kw;
Rotary speed:1450r/min;
Caliber:10-100mm;
Temperature :-15-+150°C;
Self-priming high:5-7m




Series
Type
Inlet diameter
(mm)
Capacity
(m3/h)
Head
(m)
Suction
stroke
(m)
Max diameter of granules allowed
(mm)
Motor
horse
power
(kw)
DBY
DBY-10
10
0.5
30
3
1
0.55
DBY-15
15
0.75
30
3
1
0.55
DBY-25
25
3.5
30
4
2.5
1.5
DBY-40
40
4.5
30
4
4.5
2.2
DBY-50
50
6.5
30
4.5
8
4
DBY-65
65
8
30
4.5
8
4
DBY-80
80
16
30
5
10
5.5
DBY-100
100
20
30
5
10
5.5
