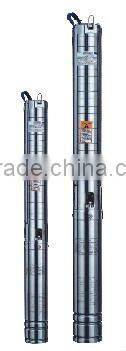

QJ Submersible Borehole Pump

QJ Submersible Borehole Pump thumbnail-1
QJ Submersible Borehole Pump photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WD
Model Number:
submersible Borehole Pump
Contact Supplier Request Quote Chat Now
Yongjia Welldone Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name WD
Model Number submersible Borehole Pump
Theory Other, submersible pump
Structure Multistage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other, Electricity
Pressure High Pressure
Application Maritime

Specifications

QJ submersible Borehole Pump
Flow:5-600m3/h,
Head:11-300m,
Rotary speed:2850r/min,
Caliber:150-400mm,

QJ  submersible Borehole Pump
QJ submersible Borehole PumpQJ submersible Borehole PumpQJ submersible Borehole PumpQJ submersible Borehole PumpQJ submersible Borehole PumpQJ submersible Borehole PumpQJ submersible Borehole Pump

and water pump motor is integrated directly into the water to the work of the water equipment, submersible pumps, diving motors, pipes, cables and activate the protection devices and other components.
It is suitable for extracting underground water from the deep well.
It can also be used for rivers, reservoirs, drains and other water projects mentioned.
It mainly used in irrigation and water for people and livestock in the mountain plateau,
Aldo for the cities, factories, railways, mines, the use of the site for drainage.
Type Designation:
100 QJ 523-4
100 – Applicable minimum caliper (mm)
QJ – Borehole Pump
5 – Flow (m3/h)
23 –Head (m)
4 –motor power
Technology Parameters:
Flow:5-600m3/h,
Head:11-300m,
Rotary speed:2850r/min,
Caliber:150-400mm,
Medium temperature:≤40°C
Model
Diameter
mm
Flow
m 3 /h
Head
m
100QJ109-0.37
32/40
1
45
100QJ112-0.55
32/40
1
60
100QJ114-0.55
32/40
1
70
100QJ118-0.75
32/40
1
90
100QJ122-1.1
32/40
1
110
100QJ126-1.5
32/40
1
130
100QJ205-0.37
32/40
2
29
100QJ208-0.55
32/40
2
44
100QJ210-0.75
32/40
2
59
100QJ212-1.1
32/40
2
70
100QJ214-1.1
32/40
2
83
100QJ216-1.5
32/40
2
93
100QJ220-1.5
32/40
2
117
100QJ225-2.2
32/40
2
151
100QJ230-2.2
32/40
2
181
100QJ234-3
32/40
2
198
100QJ306-0.55
32/40
3
29
100QJ308-0.75
32/40
3
39
100QJ310-1.1
32/40
3
49
100QJ312-1.5
32/40
3
60
100QJ314-1.5
32/40
3
70
100QJ316-1.5
32/40
3
78
100QJ320-2.2
32/40
3
101
100QJ324-2.2
32/40
3
117
100QJ328-3
32/40
3
142
