Flow Meter

Flow Meter thumbnail-1
Flow Meter photo-1
US$ 1,000 - 6,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WD
Model Number:
WDSM
Contact Supplier Request Quote Chat Now
Yongjia Welldone Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name WD
Model Number WDSM

Specifications

Stepless adjusting mechanism allow a micro adjustment of the meter.

                                                                        WDSM

Flow Meter  Flow Meter

WDSM50                    WDSM80

Flow Meter      Flow Meter    Flow Meter

WDSMA

Advantages:
Stepless adjusting mechanism allow a micro adjustment of the meter.
Special designed Manifold in line separates from measuring chamber to avoid stress coming from the installation.
Low head loss.
Simple construction : Rotor - blades for easy and low maintenance cost .
Wearing compensation :To maintain a good accuracy all along the years.
Meter also for viscous products : up to 800 Cst.

Materials:
Manifold: Steel or Aluminium
Covers: Steel
Rotor: Aluminium
Belts: Carbon
Bearings: Stainless Steel
Seals/ gaskets: Viton or Buna N

Application:
Oil company: refineries, Oil depots, gas station and Tank trucks distribution
Airports: aircraft refuelers
Army: depot reception or loading trucks
Administration (railway companies, public transport)
Ports: Boats/barges
Private oil transport companies

Technical Data:
Model
WDSM-50
WDSM-80
Size
50mm/2”
80mm/3”
Volume per Revolution
0.4L/0.08US Gallons
2.27L/0.5US Gallons
Max. Flow Rate
24m3/H,400L/min
80m3/H,1333/L/min
Min. Flow Rate
2.4 m3/H,40L/min
8 m3/H,133.3L/min

10.5US Gallons
36US Gallons
Accuracy
±0.2%
Repeatability
≤0.05%
Max. Operation Pressure
8Bar/120 PSI/8.3kg/cm3
10Bar/150PSI/10.5kg/cm3
Working Temperature range
-40°C~+60°C
Max. Viscosity
800cps/3850 SSU



Construction:

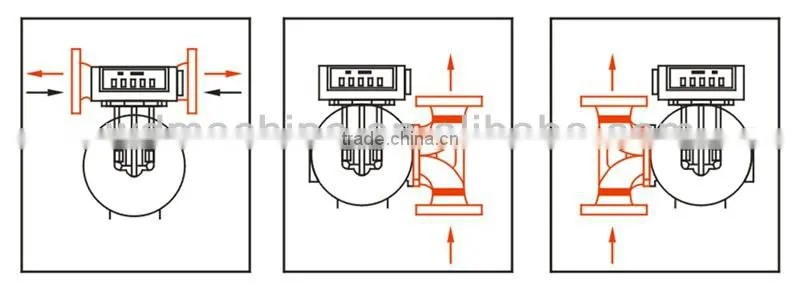

Flow MeterFlexible Installation:

Flow Meter
