Specifications
1, CNG dispenser2,Compressed Natural Gas Dispenser
CNG 112
(1flowmeter-1nozzle-2displays-1keyboard)
CNG 224
(2flowmeters-2nozzles-4displays-2keyboards)
Technical Specification:
Ambient Temperature:-40°C~+50°C
Power:AC220V±20%(50Hz)
Flow rate:2-30M3/Min (standard state)
Mass flowmeter accuracy: ±0.5%
Metering accuracy: ±1.0%
Working pressure:≤25MPa
Density preset range:0.5000-0.9999kg/m3
Unit price range:0~9999,0~999999(changeable)
Single range:1~9999.99,1~999999.99(changeable)
Accumulative range:0~9999999999.99
Electronic Calibration
Printer(option)
Fueling times limit function
Stop fueling by integer sale
Can set the decimal point for the display, so can be used in many country with different currency rate
Leaves the communication ports, so it can communicate with the gas station management system

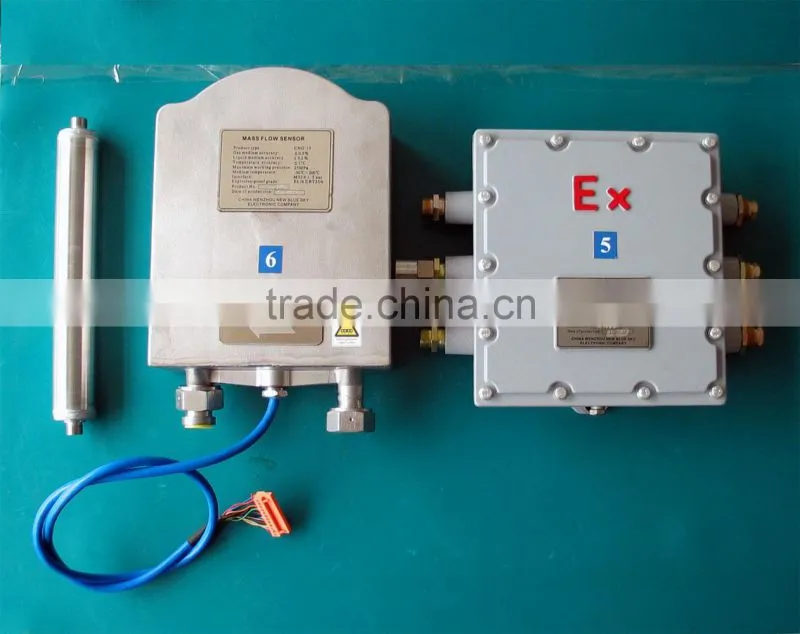

Inner parts:
with Chinese made Mass flowmeter

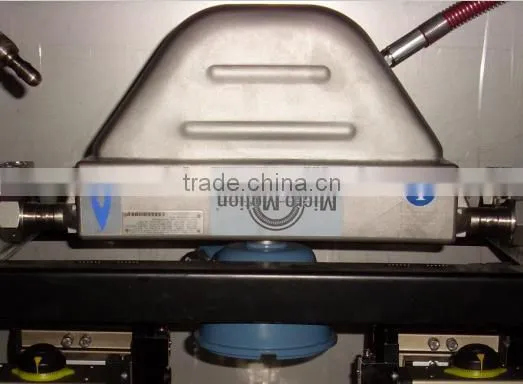

With Emerson made mass flowmeter
With Air Operated solenoid valve
With electric solenoid valve
