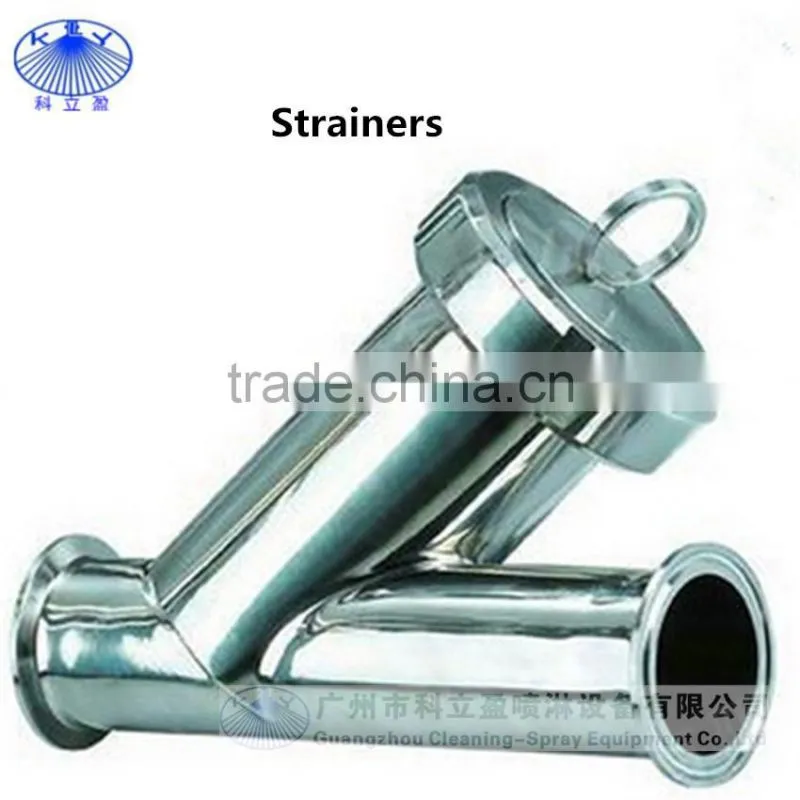

Sanitary degree 316L ss y type filter strainer
Model: 316L ss y type filter strainer
Mesh size: 100 mesh, 150 mesh; 200mesh
Application:
The product is mainly used in food processing, brewing, beverage, pharmaceutical, cosmetic, chemical industry
auxiliary Aid service, air filtration has been widely used.
Design Principles:

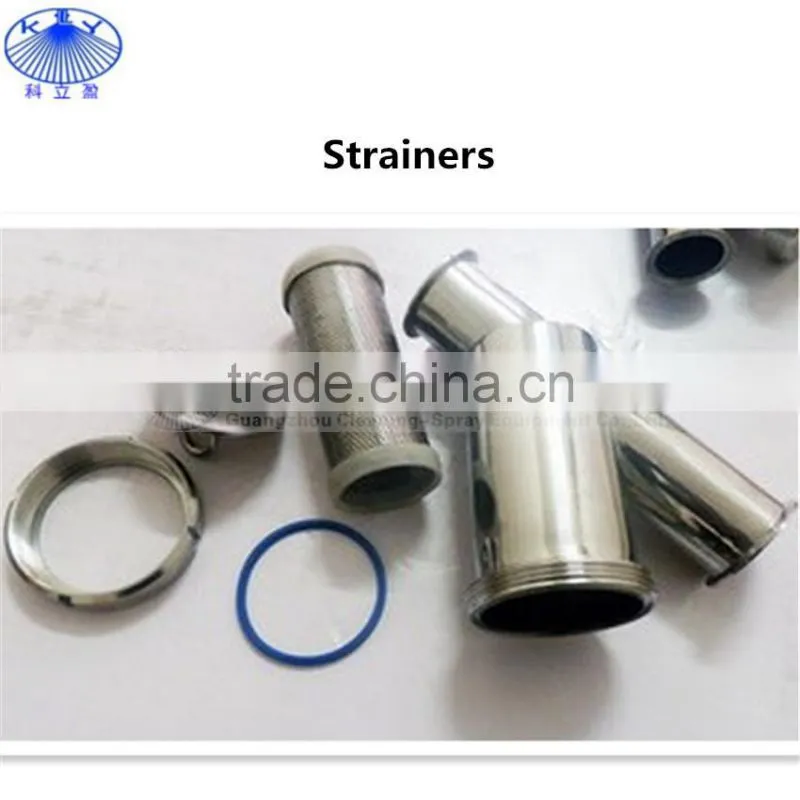

The strainer consists essentially of the filter body with inlet and outlet of the composition, screen mounted on the inside of the filter body, screen retains all equal to or greater than mesh particles.
Material:
1. the strainer body; SUS304 SUS316L
2. washers; EPDM (in line with FDA 177.2600)
Filter parameters:
Inner surface; Ra0.8um
The outer surface: mirror polishing, matt,
Structural features: The entering and exiting of material are in the same direction.
You can clean the screen without opening strainer.
Attachment options:
1, washers; EPDM MVQ FPM
2 connections; quick (clamp) Thread welding
3, the standard; DIN SMS RJT IDF 3A ISO
4, filter; mesh 0.5MM-2.0MM with 30 mesh to 300 mesh screen together. Or mesh 30 mesh to 180 mesh
purposes directly.
5, the specification; DIN Standard: DN15-DN100; ISO standard: 19 (0.75s) - 108 (4.25s)
