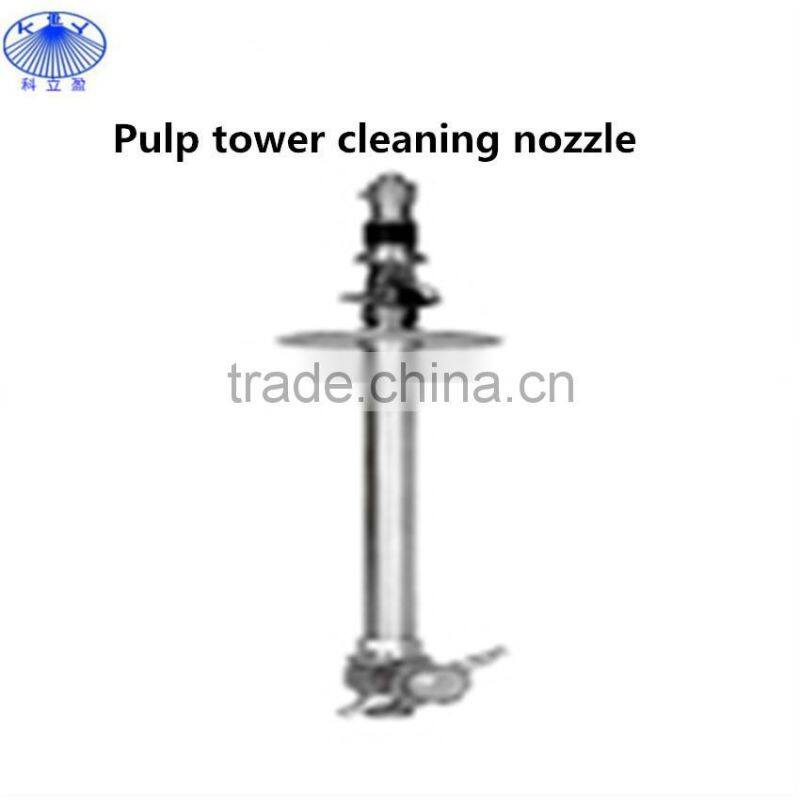

290A Motor-driven Washing Tank Cleaners

290A Motor-driven washing tank cleaners

Design feature:

The motor-driven tank washer effectively cleans tanks up to 30m in diameter. The larger tank  diameter coverage is due to an improved design of the solid stream nozzles. It can also be easily customized to accomplish specific tank cleaning requirements. For example, the flow rates can be changed through nozzle selection or by adjusting liquid inlet pressure. In addition, the turret can be fitted with four nozzles for more difficult cleaning applications instead of the standard two solid stream nozzles.

• Motor options include air, electric, and explosion-proof electric
• Corrosion-resistant materials of construction, including 316 stainless steel and teflon fluoropolymer resin seals.
• 0.9, 1.2, or 1.8 m shaft lengths
• 2" NPT OR BSPT (F) intel connection
• 250 psi (17 bar) maximum pressure
• 200°F (93°C) maximum liquid temperature
• Flow rates range for 22 to 200 gpm (85-752 l/min)
• One cycle equal s 61 revolutions
