Specifications
316SS Spiral spray nozzle , jet Nozzlesa ring- shaped impact area
design features of Wide Range of flows

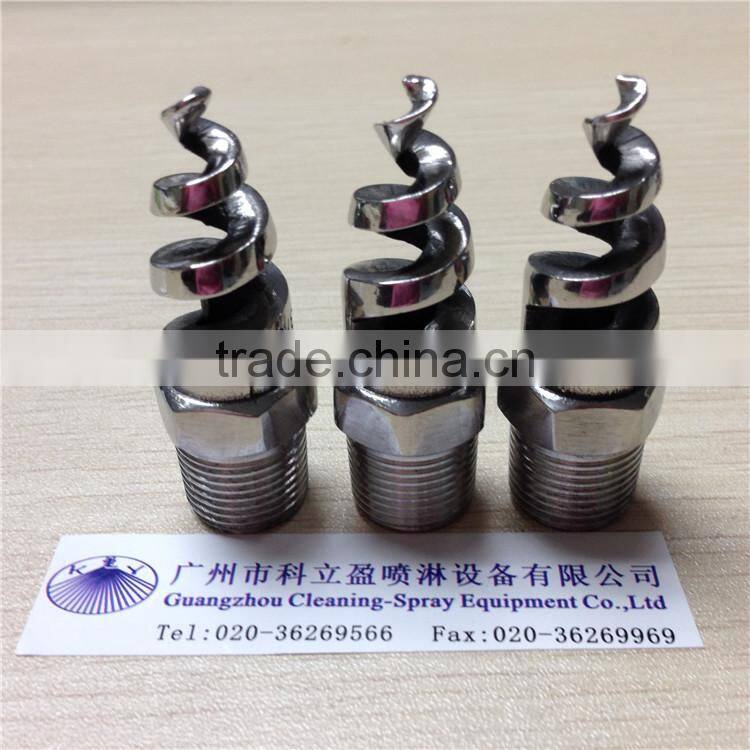

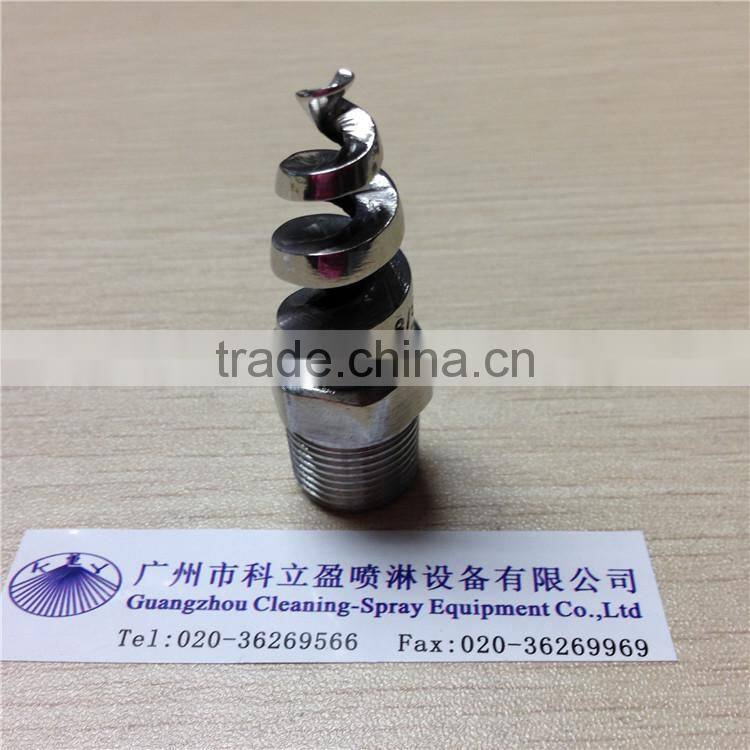

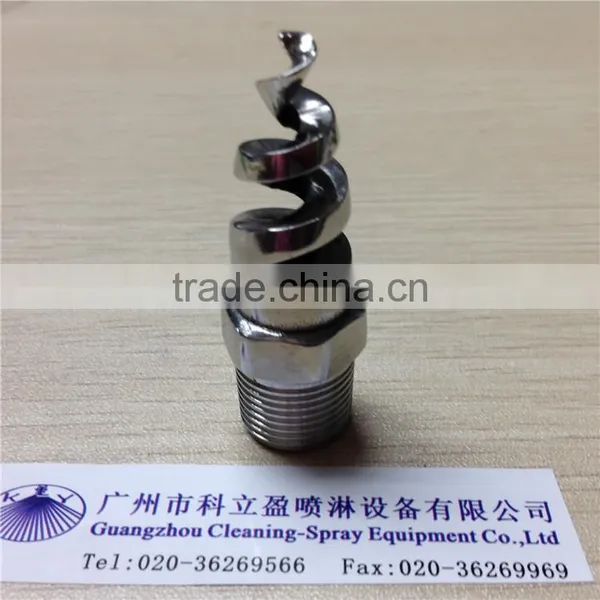

316SS Spiral spray nozzle , jet Nozzles
Products Information
Material : 316SS, 316L SS, PP
Spray Pattern : Hollow cone and full cone
Flow Rate : 0.7 to 25bar L/min
Inlet Size : 1/4, 3/8, 1/2, 3/4, 1
Application : cooling,Washing and rinsing

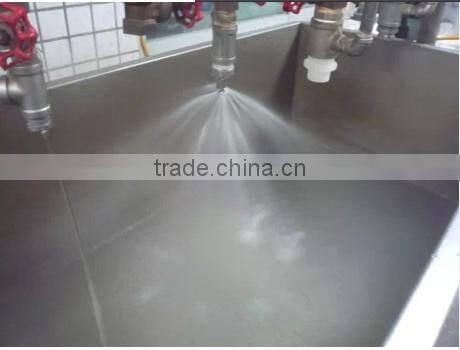

Hollow cone spray pattern with a ring-shaped impact area
Spray angles ranging from 50° to extra-wide 180° at 10 psi (0.7bar)
Free passage design minimizes clogging
Precision impact blade angles distribute drops and provide excellent coverage
Maximum liquid throughput for a given pipe size
Compact size
Brass, cast 316 Stainless Steel, PVC and PTFE materials

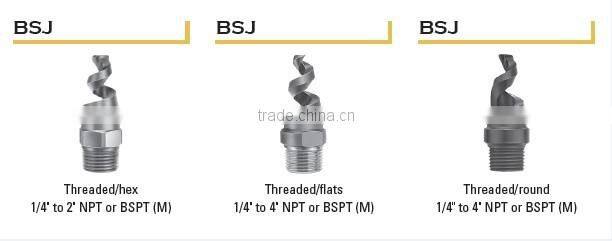

- Brass nozzles feature hex design
- Stainless steel nozzles feature hex or flat design based on capacity
- PVC and PTFE nozzles feature rounded design
BSFJ flange-type nozzles available with reaction-bonded silicon carbide tips on FRP flanges
Custom sizes and other abrasion-resistant materials available upon requst.

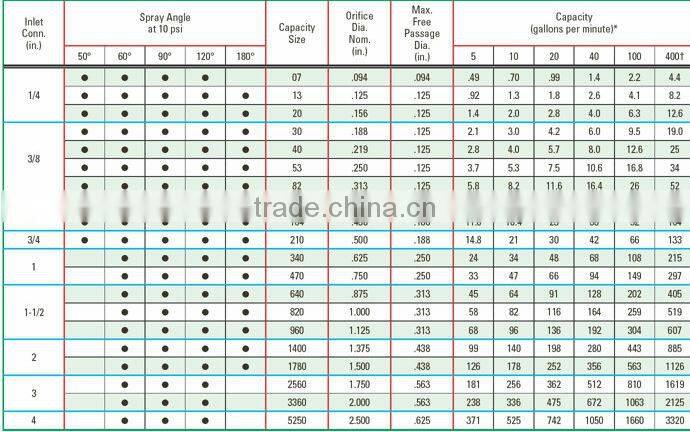

About spiral nozzles, please refer to the following parameter
