GG-W Wide Angle Spray SS Full Cone Jet Nozzle

GG-W wide angle spray SS full cone jet nozzle

Design feature:

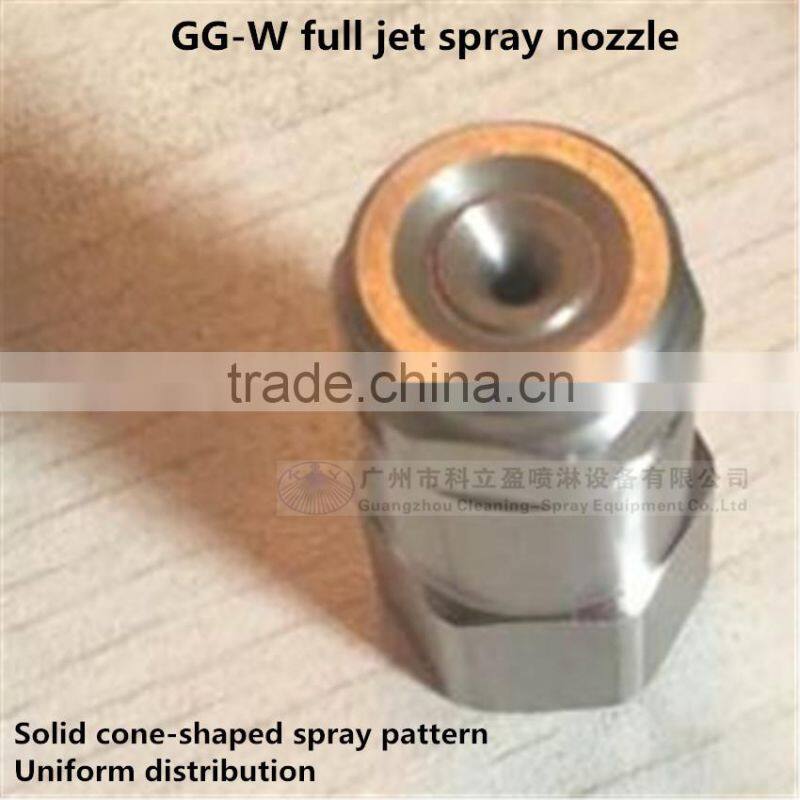

Wide angle full cone jet nozzle features a solid cone-shaped spray pattern with a round impact area and spray angles of 102° to 120° at 10 psi (0.7 bar). They produce a uniform spray of medium to coarse drops across their entire spray area. This yields excellent results in spraying applications requiring complete coverage of an area or zone. This uniform spray distribution results from a unique vane design and exacting internal proportions.

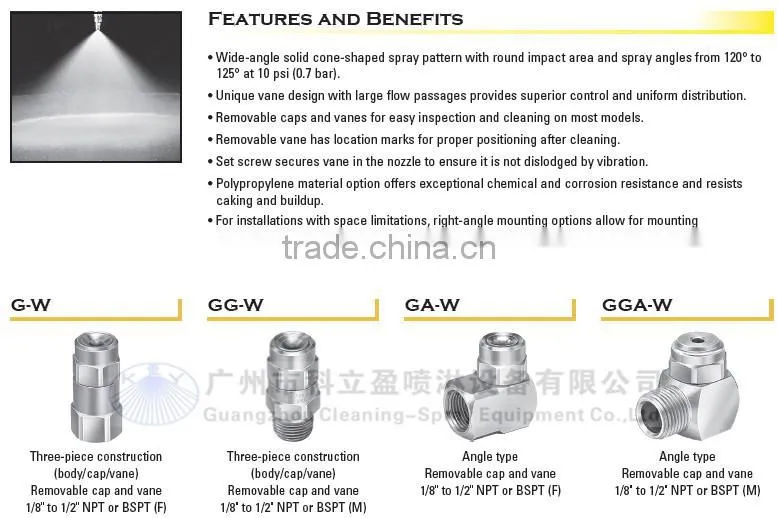

Angle type wide angle full cone jet nozzle features a spraying axis 90° from the axis of the nozzle inlet. The angle type design is useful wherever full jet spray nozzle must be installed on an extension over the center of a spray zone or mounted in a side-tapped header.

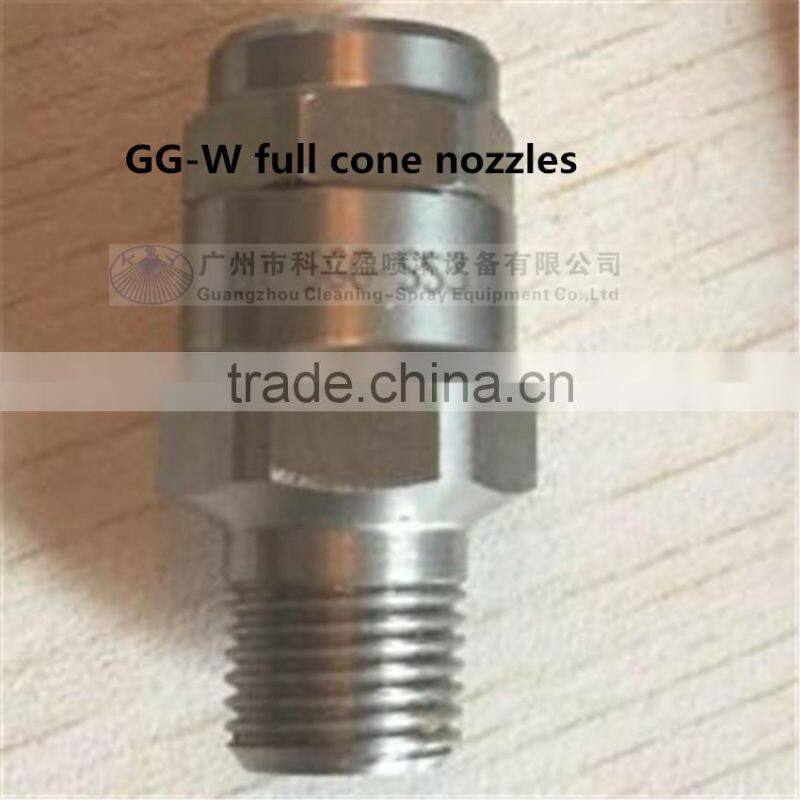

GG-W full cone jet nozzle features three-piece construction (body/cap/vane) with removable vanes.

Model:  GG-W full cone jet nozzle

Material:  stainless steel

Spray angle: 86°-120°

Operating pressure: 0.3-6 bar

Connection:1/8",1/4",3/8" ,1/2" NPT or BSPT(M)

Common application:

• Washing and rinsing processes
• Cooling of primary metals, and other material
• Suppression of fugitive dust in the processing of bulk ores, coal, limestone, sand, and gravel
• Scrubbing, washing, and cooling of flue gases to remove fly ash and other products of combustion
• Breaking up and deaerating foam
• Creating and dispersing drops in chemical reaction processing
• Deluging combustible materials and storage tanks for fire suppression and prevention
