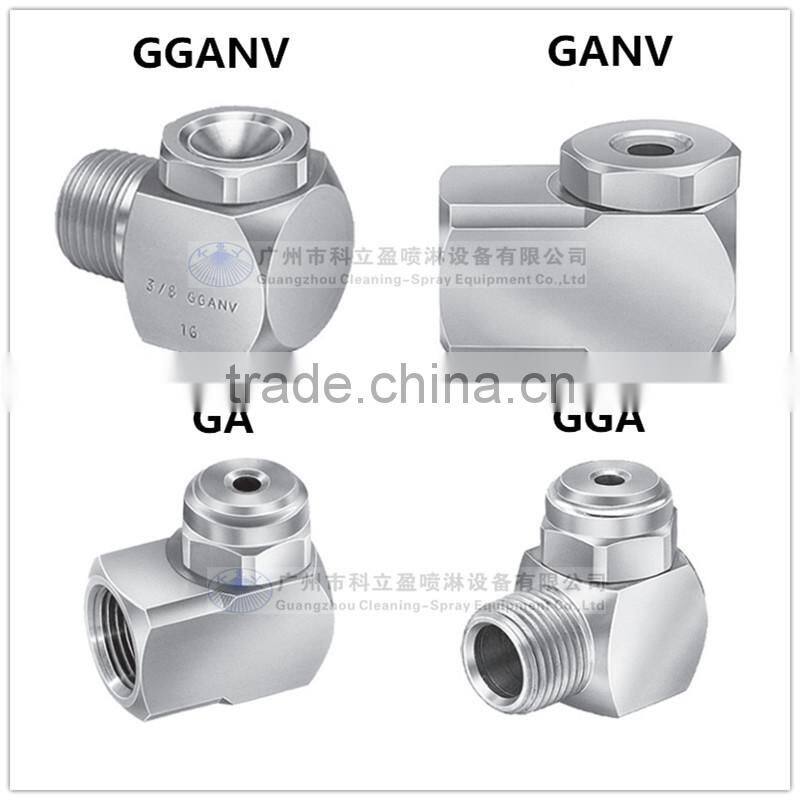

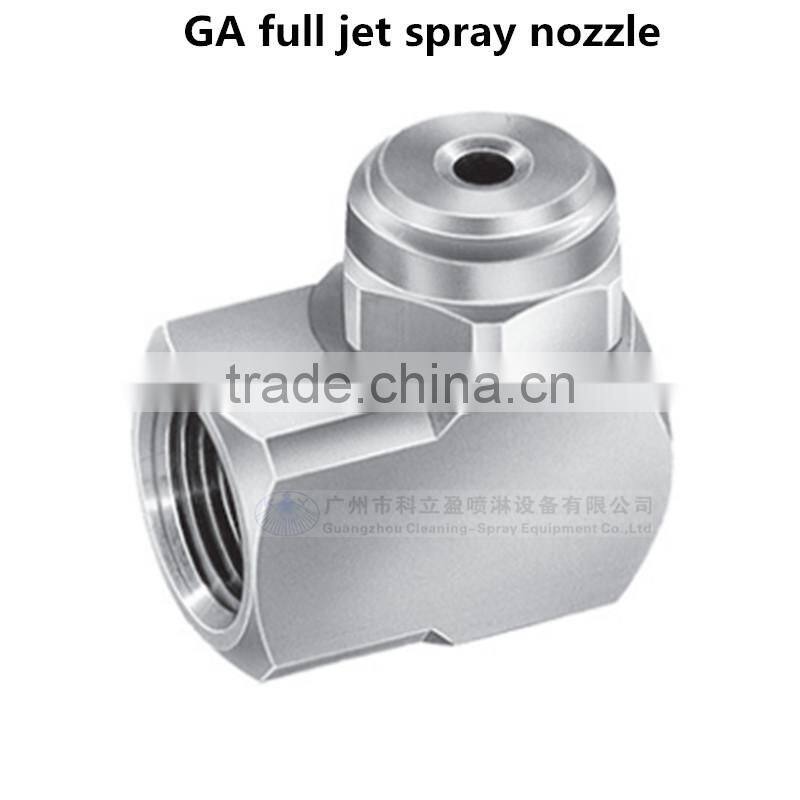

GA Stainless Steel Full Cone Nozzle

GA stainless steel full cone nozzle

Design feature:

Small capacity full cone nozzle features a solid cone-shaped spray pattern with a round impact area . Their uniform spray distribution of medium- to large-sized drops results from a unique vane design with large flow passages and superior control characteristics.

Precision-engineered and manufactured to exacting dimensions to ensure accurate and reliable performance.

Produce excellent results in spraying applications requiring complete coverage of an area or zone.

GA feature romovable caps and vanes for easy inspection and cleaning.

Model:  GA full cone nozzle

Material:  stainless steel

Spray angle: 50°-90°

Operating pressure: 0.5-10 bar

Connection:1/8",1/4",3/8" ,1/2" NPT or BSPT(R)

Common application:

• Washing
• Cooling
• Spraying
• Material spraying
• Dust pressure ash
• Washing and rinsing processes
• Quenching and cooling of coke, primary metals, and other material
• Suppression of fugitive dust in the processing of bulk ores, coal, limestone, sand, and gravel
• Scrubbing, washing, and cooling of flue gases to remove fly ash and other products of combustion
• Deluging combustible materials and storage tanks for fire suppression and prevention
• Breaking up and deaerating foam
• Creating and dispersing drops in chemical reaction processing
