QGA Full Jet Spray Nozzle With Female Body

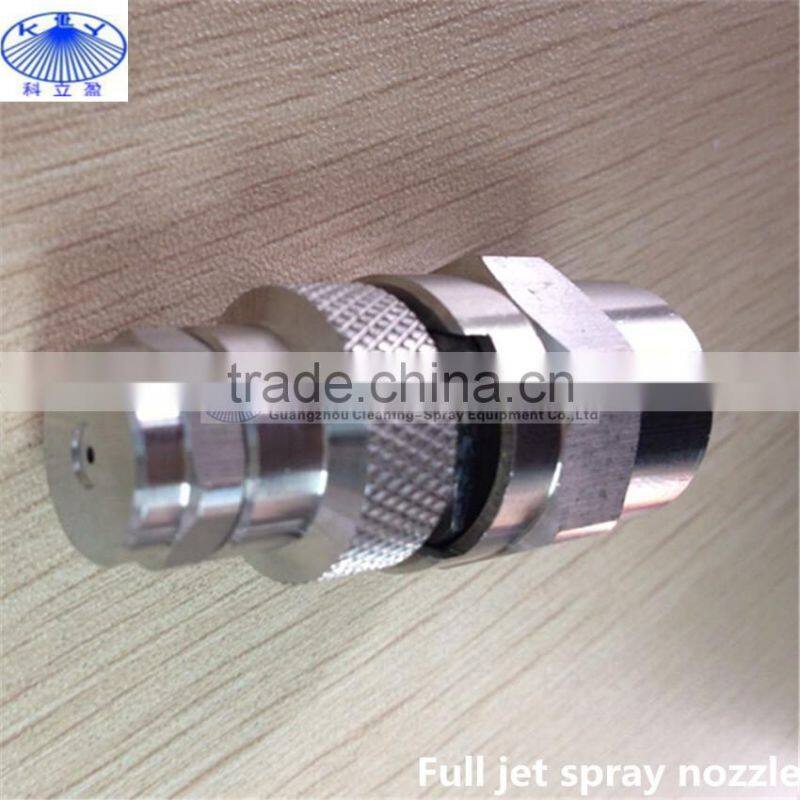

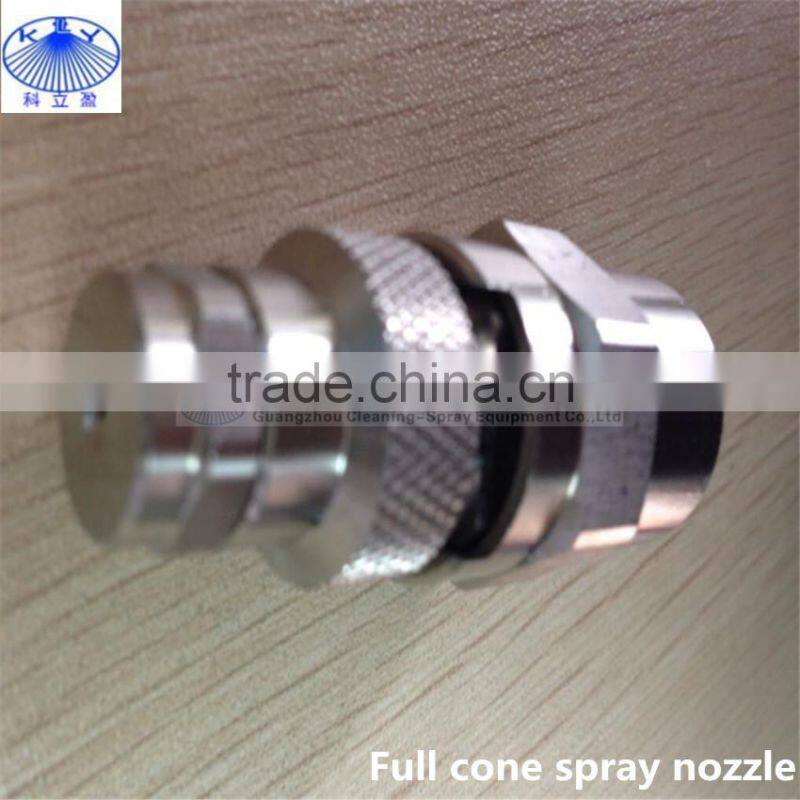

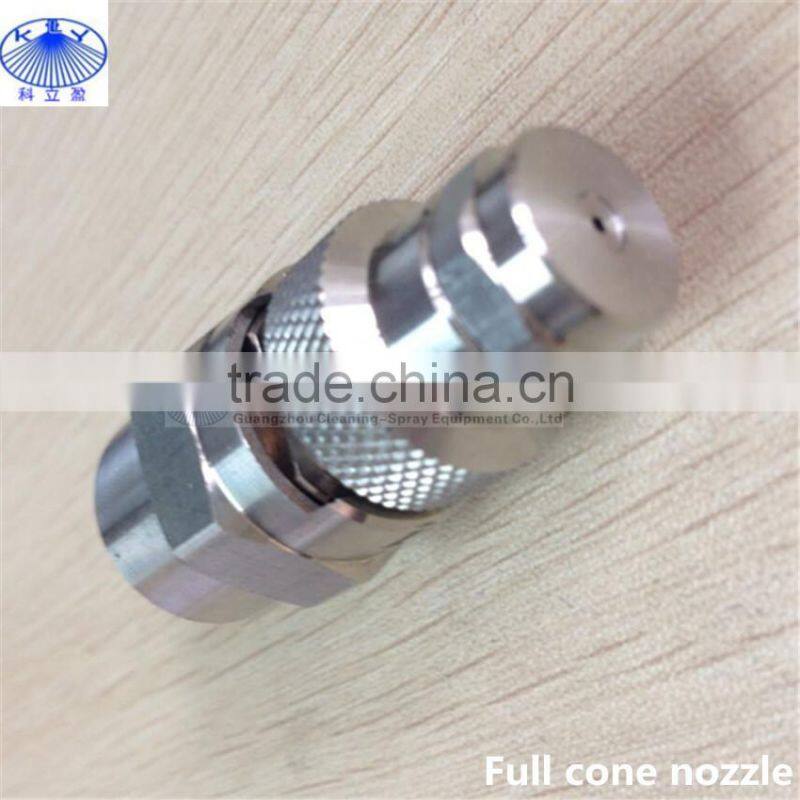

QGA full jet spray nozzle with female body

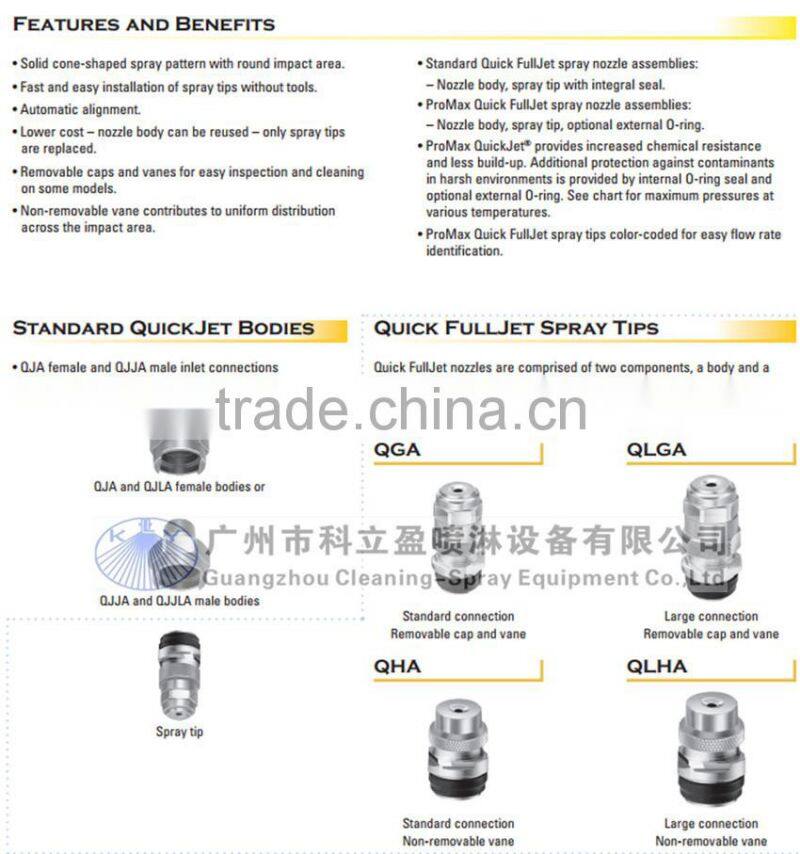

Design feature:

Quick full jet spray tip assemblies feature a solid, cone- shaped spray pattern of medium - to large - sized drops with a round impact area.

When combined with a nozzle body , these tips allow for quick- connect 1/4 turn installation without the use of tools.

Model QGA and QLGA feature removable cap and vanes.

Model QHA and QLHA feature a non-removable vane that contributes to uniform disribution across the impact area.

Model:   QGA Full jet spray nozzle

Material:  stainless steel

Spray angle: 50°-90°

Operating pressure: 0.5-10 bar

Connection:1/8",1/4",3/8" ,1/2" NPT or BSPT

Common application:

• Washing and rinsing processes
• Cooling of coke, primary metals, and other materials
• Suppression of fugitive dust in the processing of bulk ores, coal, limestone, sand, and gravel
• Scrubbing, washing, and cooling of flue gases to remove fly ash and other products of combustion
• Breaking up and deaerating foam
• Fire suppression and prevention
