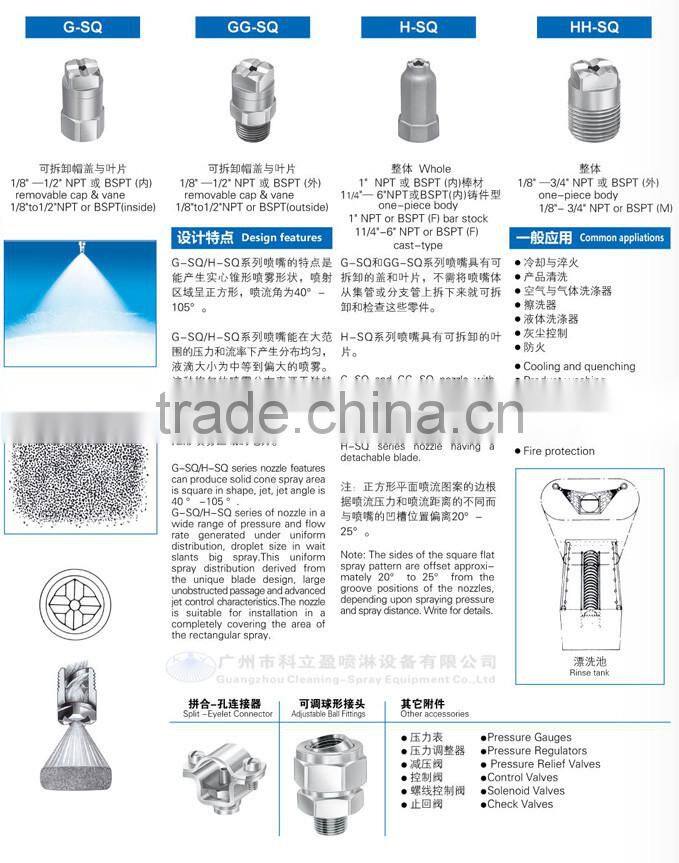

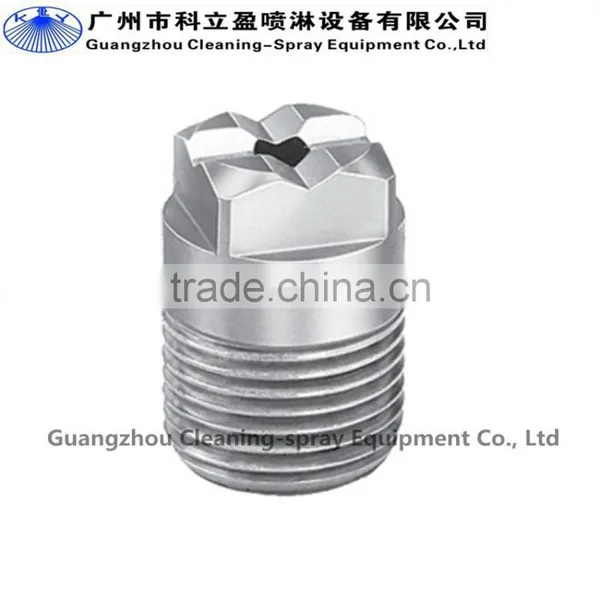

HH-SQ series full cone spray nozzle
Design feature:
Medium capacity, square spray full cone spray nozzle feature a solid cone-shaped spray pattern with a square impact area and spray angles of 61° - 82° . They produce a uniform spray of medium to large drops across their entire spray area over a wide range of spraying pressures and flow rates. This uniform spray distribution is the result of a unique vane design with large flow passages and superior spray control characteristics.
Well suited for installations requiring complete coverage of rectangular areas or spray zones.
The sides of the square flat spray pattern are offset approximately 20° to 25° from the groove positions of the nozzles, depending upon spraying pressure and spray distance.
Common application:
- Cooling and quenching
- Product washing
- Air and gash washers
- Scrubbers
- Liquor washers
- Dust control
- Fire protection
Performance Data
