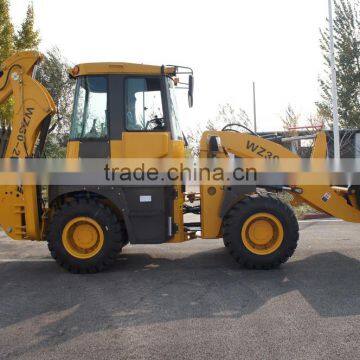

Backhoe Loader
Key points:
1. Rated load:2500kg;
2.Bucket capacity:1.3m3;
3.Engine: YC 4015;
4. Power: 85kw / 2400rpm;
5.Backhoe capacity:0.3m3.
........
Specification details:
| Basic datas | Rated Loading |
2500kg |
Bucket Capacity |
1.3-1.5m3 |
|
Wheel base |
2200mm |
|
Min. Ground Clearance |
300mm |
|
Breakout Force |
38KN |
|
Bucket Dumping Height |
3500mm |
|
Bucket Dumping reach |
1106mm |
|
Backhoe Capacity |
0.3 m3 |
|
Max. Digging Depth |
4016mm |
|
Swing Angle of Excavator Grab |
190 degree c. |
|
Max. Pulling Force |
39KN |
|
Dimension(L*W*H) |
7150*2300*3360mm |
|
Overall Operating Weight |
8100KG |
|
| Engine | Model |
YC4015 |
Type |
In Line Direct injection Four-Stroke |
|
Cylinder-Inside Diameter*Stroke |
4-110*120 |
|
Rated Power |
85KW |
|
Rated Speed |
2400r/min |
|
Min. Fuel Consumption |
≤216g/km.h |
|
Max.Torque |
≥261.7N.M/1800r/min |
|
Displacement |
4.4L |
|
| Steering system | Model of Steering Device |
BZZ5-250 |
Steering Angle |
±36 degree |
|
Min. turning radius |
6581mm |
|
Pressure of the system |
12Mpa |
|
| Axle | Origin | Feicheng Axle Factory |
Main Transmission Type |
Double Reduction |
|
Final Reducer |
Single Stage Final Reducer |
|
Rated Loader of Axle |
4/18.5t |
|
| Torque converter | Model | YJ315 |
Type |
Single-stage Three Elements |
|
Max. Efficiency |
88.4% |
|
Inlet Pressure |
0.4Mpa-0.55 Mpa |
|
Outlet Pressure |
1.2Mpa-1.5 Mpa |
|
Cooling Method |
Oil-cooling Pressure Circulation |
|
| Gearbox | Type |
Power shift normally engaged straight gear |
Oil Pressure of Clutch |
1373kpa-1569 kpa |
|
Gear shift |
4 forward shift 4 reverse shift |
|
Max.Speed |
38Km/h |
|
| Hydraulic datas | Digging Power of Excavator Grab |
46.5KN |
Digging Power of Dipper |
31KN |
|
Bucket Lifting Time |
5.4S |
|
Bucket Lowering Time |
3.1S |
|
Bucket Discharge Time |
2.0S |
|
| Brake system | Service brake | Over Oil Caliper Brake |
External Type | ||
Self-regulation | ||
Self-balance | ||
Emergency Brake |
Operation Power Implementing brake |
|
Manual Operation Power Terminating Brake | ||
| Tyre | Model | 16/70-20 |
Pressure of Front wheel |
0.22 Mpa |
|
Pressure of Back Wheel |
0.22 Mpa |
|
................
...................................
