Hydraulic Stationary Scissor Lift Platforms are widely used machines for many fields, the most popular using are in warehouse,basement, first floor,etc, which for carrying the cargos,cars,,etc. to the high floors. Both inside and outside using available.
It's design and produce as clients' requirements, as long as telling us the requirements of capacity, platform size, lifting height, we can design, supply drawing and give offer.
...............
Following are specifications of model SJG1.5-3, which used for goods load and unload working.
Model: |
SJG1.5-3 |
Lifting height : |
1500mm |
Platform size : |
2900*2400mm |
Capacity : |
1500kg |
Cylinder: |
Φ100*2pcs |
Closed height: |
600mm |
Net weight : |
1800kg |
Package size and weight: |
Wooden case, about 3200*2600*800mm,2100kg. |
Main material: |
160*80*5mm steel tubes |
Up frame size: |
14# heavy steel, Q235 |
Platform thickness: |
|
Handrail height : |
900mm, 4pcs |
Power : |
3KW/380V/50HZ |
Color : |
According to client’s requirement. |
..........

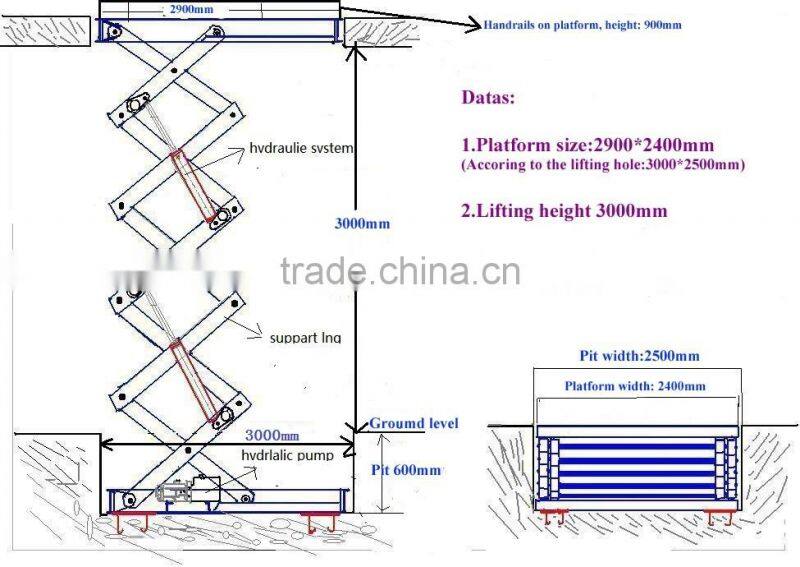

Sketch of the lift:
.............

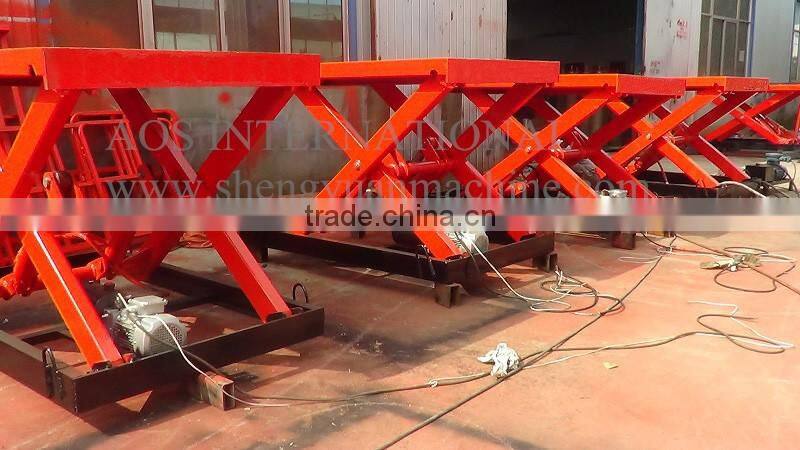

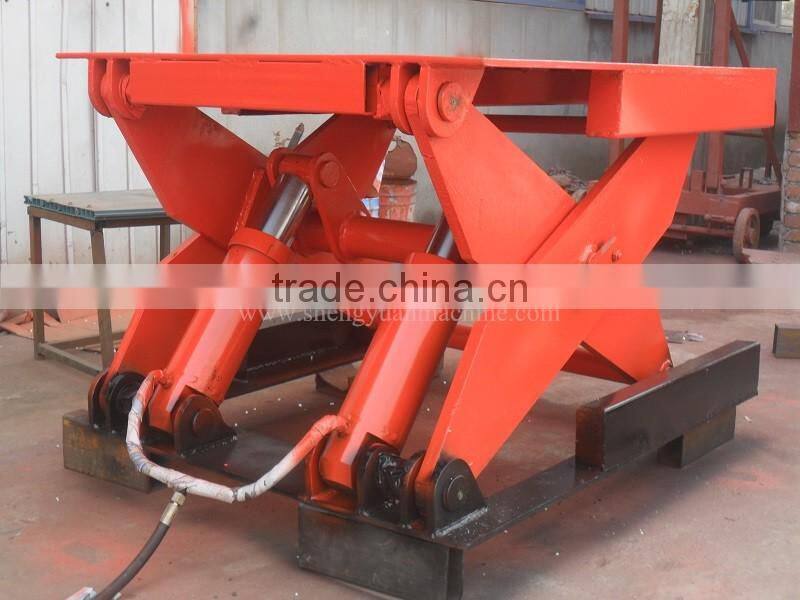

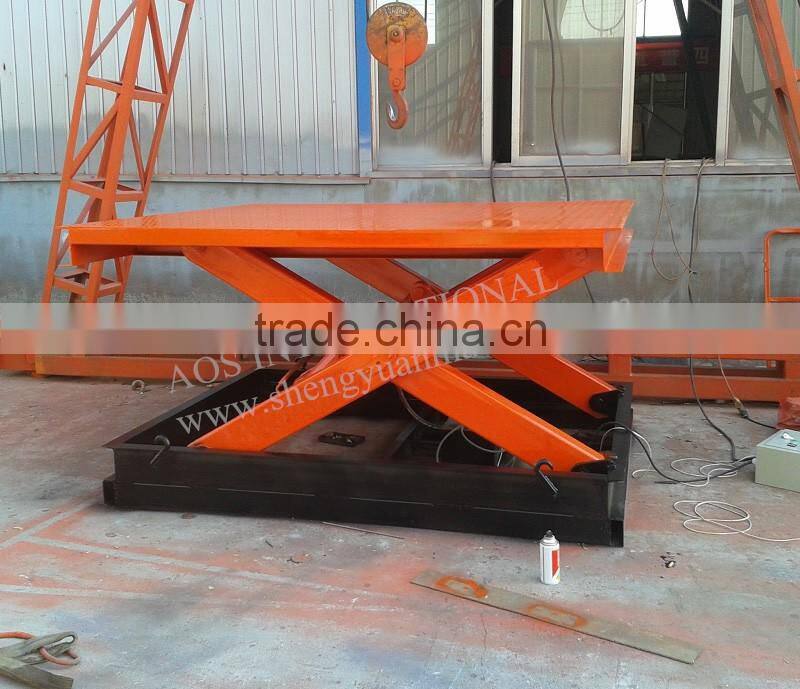

The following are the models which designed for clients, please have a look for your reference:
