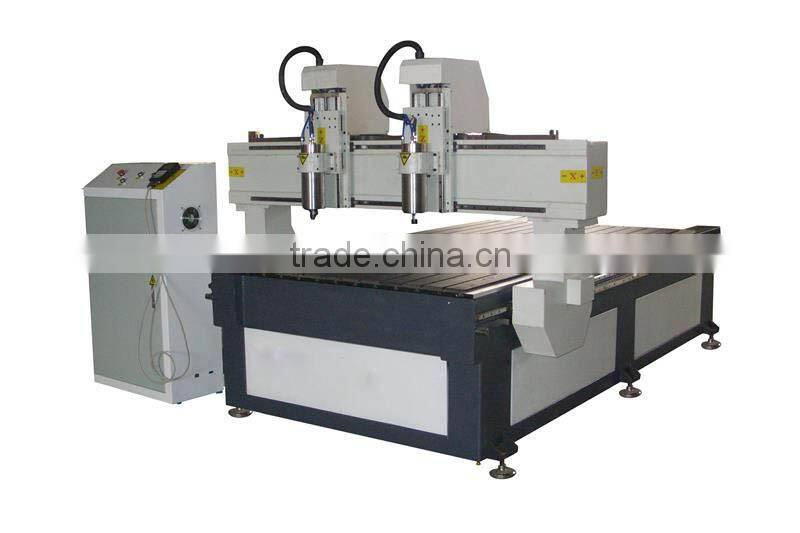

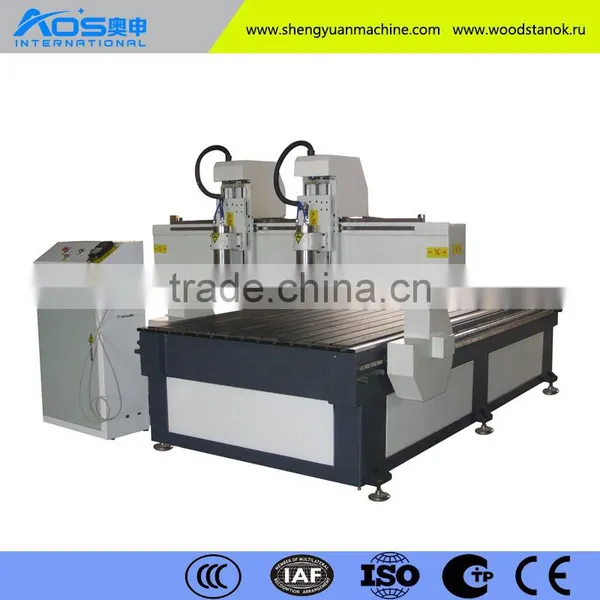

Help CenterCNC Router 2 Head For Cutting and Engraving Furniture 1325AH2
Related Products
-
4-Axis CNC Wood Carving Machine For 2D and 3D 1625AGUS$ 6,200 - 6,500MOQ: 1 Set -
Mini CNC Router For Advertisement 6090 CNC Router For Cutting and Engraving FurnitureUS$ 1,500 - 3,000MOQ: 1 Set
-
Wood Cutting And Engraving Machine CNC Router M1325B With Low PriceUS$ 3,500 - 5,500MOQ: 1 Set
-
China Professional Manufacture With CE For Woodworking ATC CNC Router 1325ADHUS$ 15,000 - 20,000MOQ: 1 Set
-
CNC Machine for Stone Engraving and Cutting 1325 Working TableUS$ 5,500 - 9,000MOQ: 1 Set
Application of Wood Cutting Machine
The machine is strong function,easy to use,durable performance.Applicable to process three-dimension wave board,computer table and chair,screen stencil,art windows,wood furniture,acrylic,PVC board,sign plate and plastic molding in high efficiency,and also can process many metal and non-metal materials such as iron,copper,aluminum,plastic plate,wood etc.
Features of Wood Cutting Machine
♦With hard steel structure, fit for hard wood working, like cutting and engraving on rosewood for furniture, indoor decoration.
♦With the Vacuum holding way and dust collector, the machine is qualified for mass-producing of furniture.
♦We use the best quality parts for the CNC routers.
♦The machine’s body is strong, rigid, high precision, reliable and durable.
♦Imported high precision ball screw gap, smooth movement, to ensure that the machine tools high-precision.
♦ Wellknown domestic brands of water cooling brushless spindle, low noise, strong cutting ability, to ensure the long time working.
♦High-performance driven motor to ensure that the machine high speed and accuracy.
♦Designer perfectly, select the best machine accessories, to minimize the failure rate preferred.
Parameter
Description | Parameter |
X,Y,Z Working Area | 1300x2500x200mm |
Table Size | 1640×3040mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Table Surface | Vacuum and T-slot working table (Option: T-slot Table ) |
Frame | Welded Structure |
X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
Max. Power Consumption | (Without Spindle) 3.2Kw |
Max. Rapid Travel Rate | 33000mm/min |
Max. Working Speed | 25000mm/min |

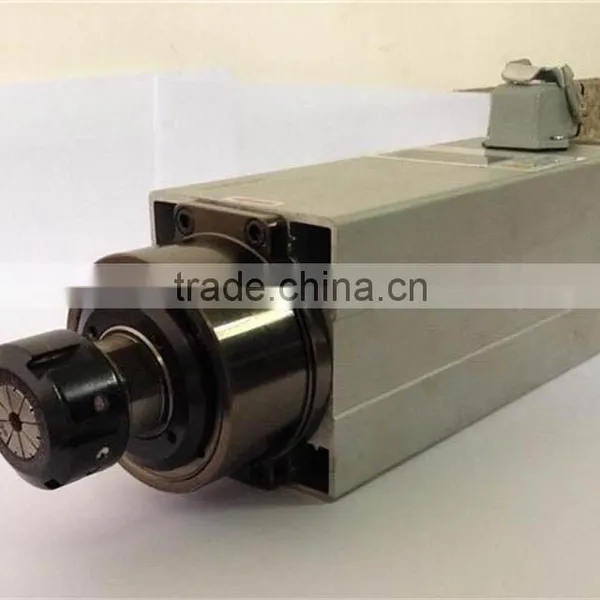

Spindle Power | 3.5kw air cooling spindle |
Spindle Speed | 0-18000RPM |
Drive Motors | stepper |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
Command Language | G Code |
Operating System | DSP System (Options: Ncstudio/Mach3 PC Software) |
Computer Interface | USB |
Flash Memory | 128M(U Disk) |
Collet | ER25 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/Arcam Software |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Packing Size | 3100X2100X1900mm |
N.W. | 1350KG |
G.W. | 1500KG |
Optional Parts | Water Cooling Spindle |
Syntec Control System | |
Dust Collector | |
Rotary System | |
Mist-cooling System | |
Yaskawa DELTA Servo Motors |
