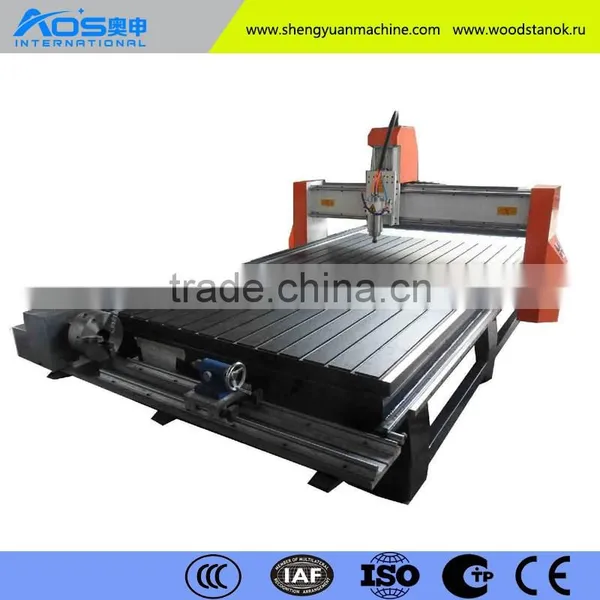

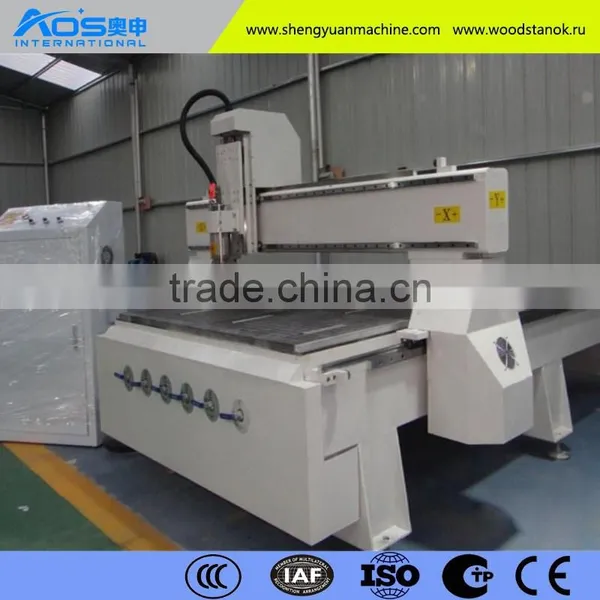

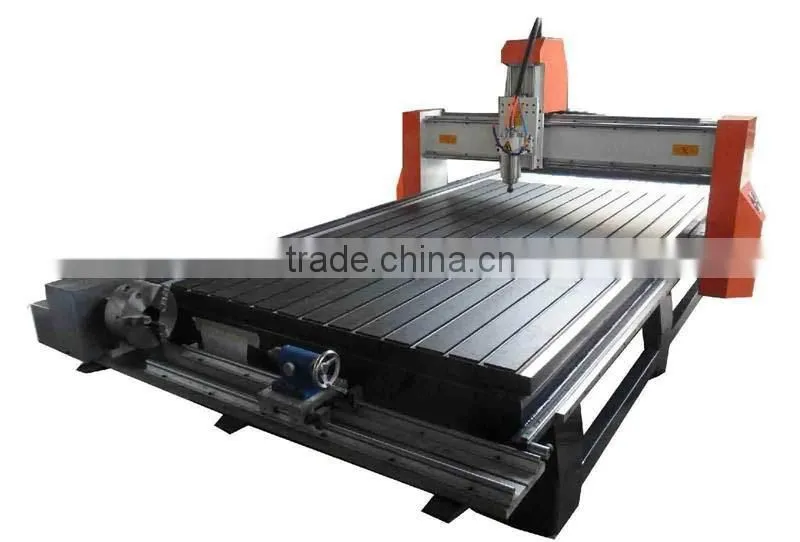

Help Center4-Axis CNC Wood Carving Machine For 2D and 3D 1625AG
Related Products
-
Mini CNC Router For Advertisement 6090 CNC Router For Cutting and Engraving FurnitureUS$ 1,500 - 3,000MOQ: 1 Set -
Wood Cutting And Engraving Machine CNC Router M1325B With Low PriceUS$ 3,500 - 5,500MOQ: 1 Set
-
China Professional Manufacture With CE For Woodworking ATC CNC Router 1325ADHUS$ 15,000 - 20,000MOQ: 1 Set
-
CNC Machine for Stone Engraving and Cutting 1325 Working TableUS$ 5,500 - 9,000MOQ: 1 Set
-
Wood Cutting and Engraving Machine Cnc Router 1325A For SaleUS$ 4,000 - 6,000MOQ: 1 Set
Standard Features:

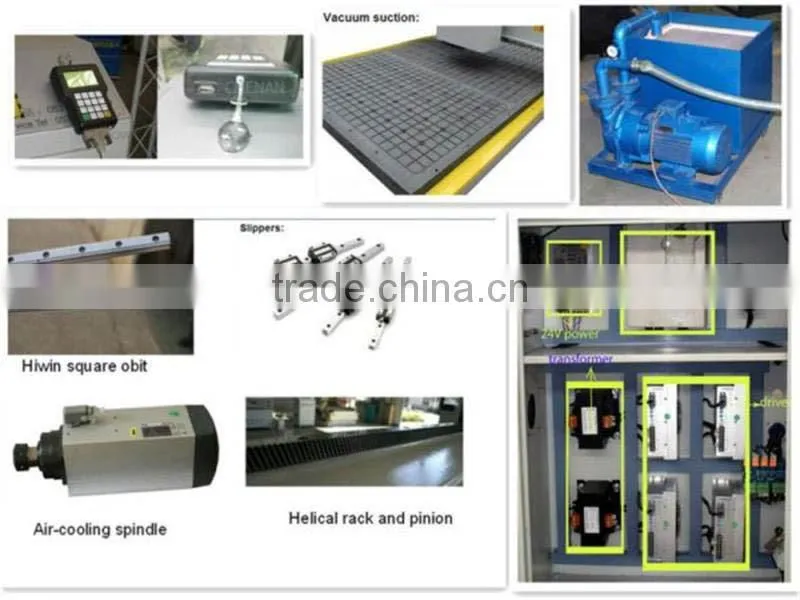

1. Whole machine is welded with seamless steel structure; the stability is excellent, not easy to be deformed. Vacuum table with 6 vacuum zones, which can adsorb different size materials.

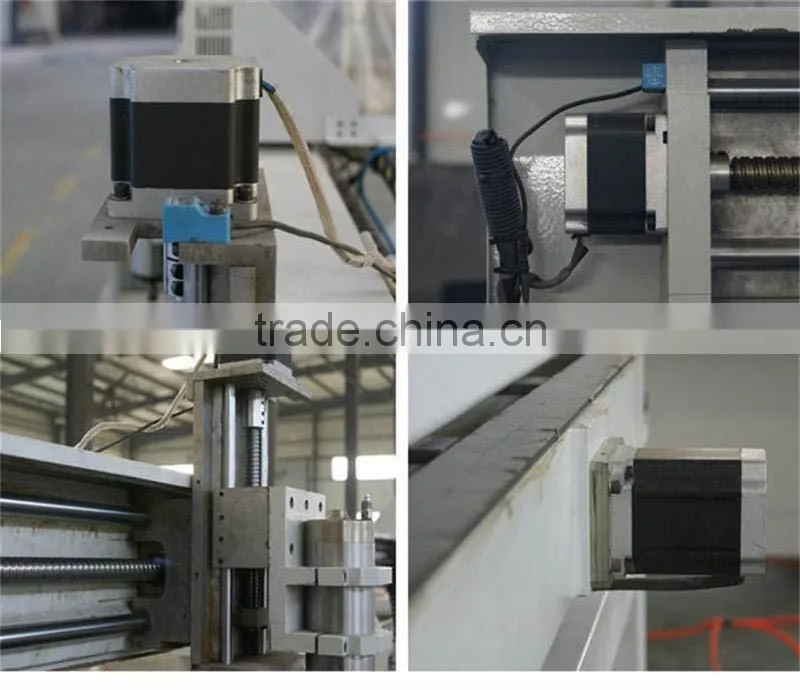

2. Three axes adopt Taiwan HIWIN high precision linear orbit; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost. Z axis adopts ball screw,with high precision and long life time.

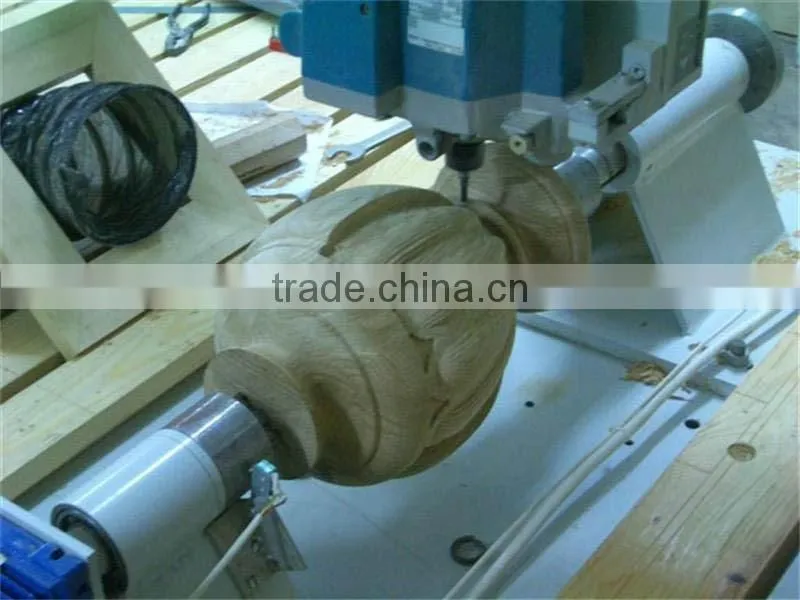

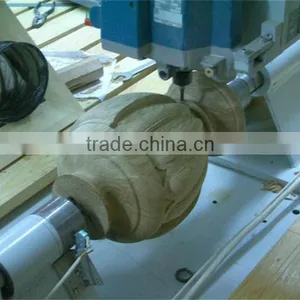

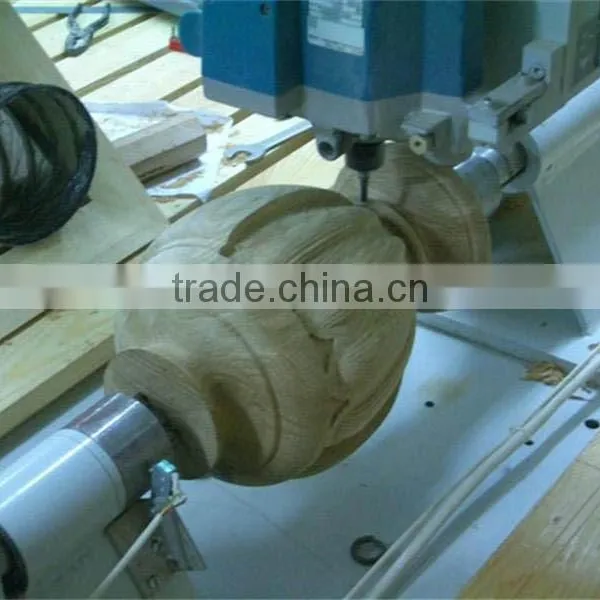

3.The 4th rotary axis adopt chuck and thimble structure, which can be used for processing cylinder such as cylindrical furniture fitting, armrest of stair and so on.
4. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.
5. Has the function of re-carving after break point and power failure. Has the function of forecasting process time.
6. Adopting advanced DSP system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
7. Perfect oil-inject system makes maintenance much easier.
8. Has duct-collect function. It will clean up the carving residuum and make the operations tidier and more convenient.
9. Fumigation-free wooden case.
Applicable materials
Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal materials and light metal materials.
Technical Specifications7850
Description |
M1625AG |
X,Y Working Area |
1600*2500mm |
Z Working Area |
300mm |
Table Size |
1900*3050mm |
size of 4-axis |
350*1000mm |
Resolution |
0.1mm |
Max. Idling Speed |
35m/min |
Spindle Motor Power |
3.5 Kw spindle |
Working Mode |

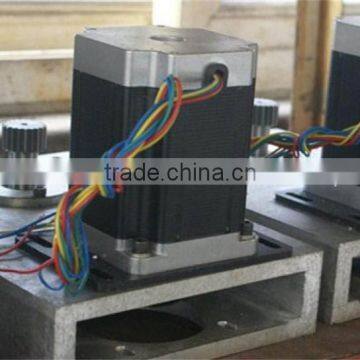

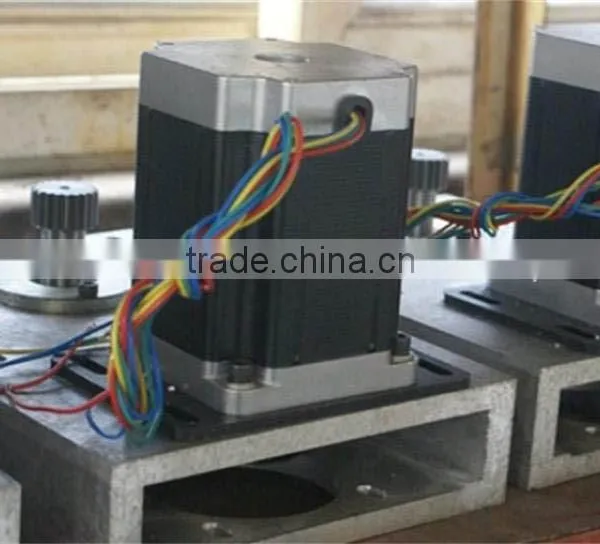

Stepper motors and YAKO drives |
Inverter |
Fulling Inverter |
Vacuum system |
Yes |
Vacuum pump |
5.5Kw water Cooling Vacuum pump |
Operating System |
DSP control system |
Lathe Structure |
Seamless welded steel structure |
X,Y Structure |
Rack and pinion transmission, |
Z Structure |
Imported high-precision Ball screw |
Rail |
Taiwan made HIWIN guiding rail |
Spindle Rotate Speed |
0-18000r/min |
Working Voltage |
AC380V/50Hz |
Command |
G code,HPGL,U00,mmg,plt |
Diameter of cutter |
φ3.175-φ12.7mm |
Manual oil-injection |
Yes |
Dust collector function |
Yes |
Package |
Wooden case |
