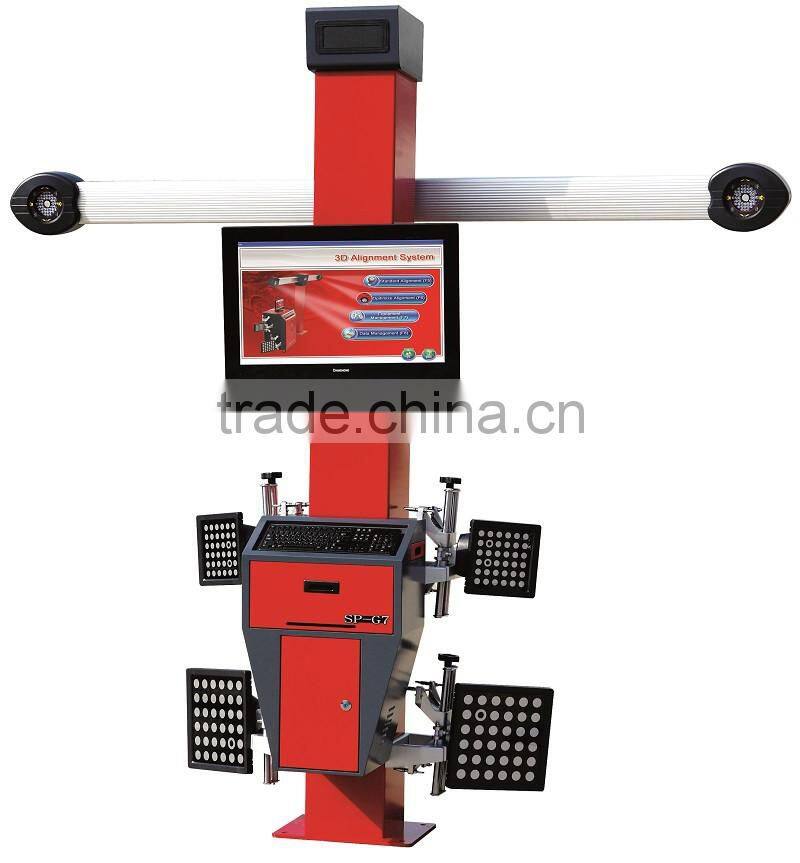

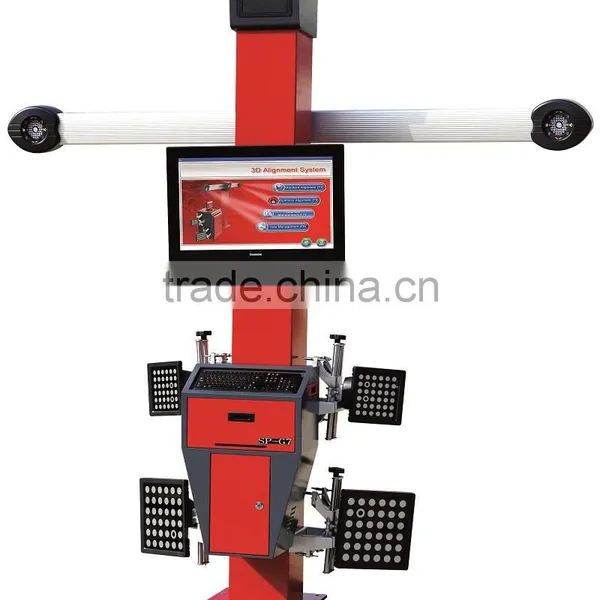

3D WHEEL ALIGNER CHARACTERISTICS:
Precision measurement
Rapidity and convenience
Powerful function
*Dual cameras with four target plates, composed of 3D wheel alignment, can adjust the vehicle height and the camera height at any time in the operation process, no effect on the measurement results;
*Set up the reading under 2 minutes;
*Non electronic wheel sensor target;
*Long lift hi-speed camera system;
*Lift-time free vehicle database update;
*24 inch wheel clamps;
*Easy to operate interface;
*Calibration- free-calibration of the 3D wheel aligner system was done in the factory, doesn’t need on site calibration on installation. This outstanding function saves a lot of work and make installation of the equipment super easy. It can improve job efficiency.
...........
Model: AOS-G7:
Standard Configuration:
Integrated cabinet, 32' LCD monitor,Dell computer, canon printer,target plate, Pylon bracket, Brake fixer, Steering wheel fixer, Wedge block, Turntable, Transition block of turntable.
Software function:
Basic function: camber, caster, Kingpin Inclination, toe angle, set back, Thrust Angle and so on.
Extended function:
axis deviation measurement, wheel deviation measurement, Animation, single-wheel measurement, the vehicle lift measurement function, straight steering wheel function, Alignment platform Levelness detecting function, engine bracket adjustment, Locking toe measurement function, Toe curvature measurement.
Specifications:
Measurement project |
Accuracy |
Measurement range |
Display accuracy |
1´/1mm |
|
Camber |
±2´ |
±10° |
Caster |
±6´ |
±20° |
Kingpin Inclination |
±6´ |
±20° |
Toe-in & Toe-out |
±2´ |
±20° |
Set back |
±2´ |
±5° |
Thrust angle |
±2´ |
±5° |
Wheel Deviation |
±2mm |
|
Axis Deviation |
±2mm |
.........
............

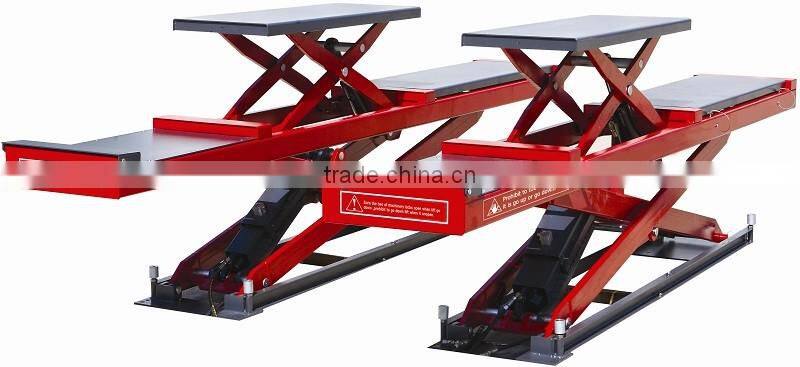

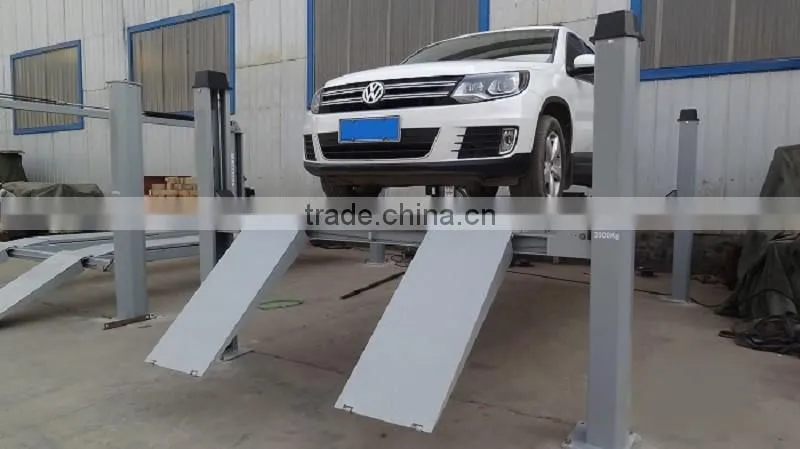

The car lifts which used with the wheel alignment, please click the photos to see the details of the car lift:
