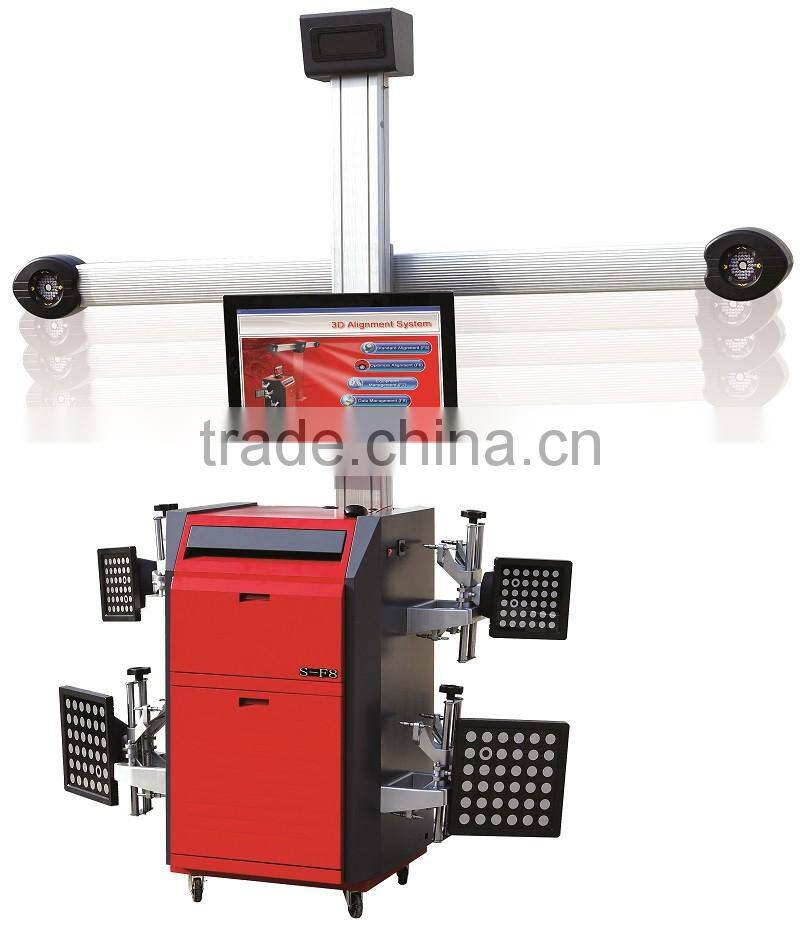

High Quality3D Wheel Alignment Machine F8

3D WHEEL ALIGNMENT CHARACTERISTICS:

Precision measurement
Rapidity and convenience
Powerful function

*Dual cameras with four target plates, composed of 3D wheel alignment, can adjust the vehicle height and the camera height at any time in the operation process, no effect on the measurement results;
*Set up the reading under 2 minutes;
*Non electronic wheel sensor target;
*Long lift hi-speed camera system;
*Lift-time free vehicle database update;
*24 inch wheel clamps;
*Easy to operate interface;
*Calibration- free-calibration of the 3D wheel aligner system was done in the factory, doesn’t need on site calibration on installation. This outstanding function saves a lot of work and make installation of the equipment super easy. It can improve job efficiency.

 ...........

Model: AOS-F8:

Standard Configuration:

Luxurious cabinet, Electric movable post,Dell computer, canon printer, target disk, Pylon bracket, Brake fixer, Steering wheel fixer, Wedge block, Turntable, Transition block of turntable ,dedicated target ,wheel rim adapter.

Software function:

Basic function: camber, caster, Kingpin Inclination, toe angle, set back, Thrust Angle.

Extended function:

axis deviation measurement, wheel deviation measurement, Animation, single-wheel measurement, the vehicle lift measurement function, straight steering wheel function, Alignment platform levelness detecting function, engine bracket adjustment, Locking toe measurement function, Toe curvature measurement, Ride height measurement function, Air suspension vehicle alignment software(proprietary software), Rolling Radius Measurement, Scrub  Radius Measurement, wheel base measurement, axle base measurement.

Specifications:

..............

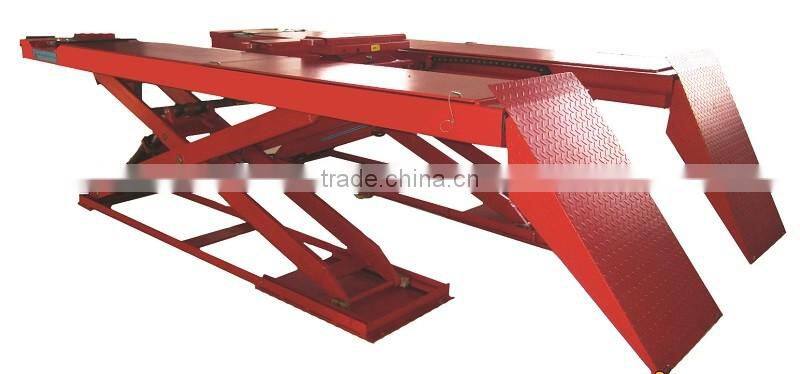

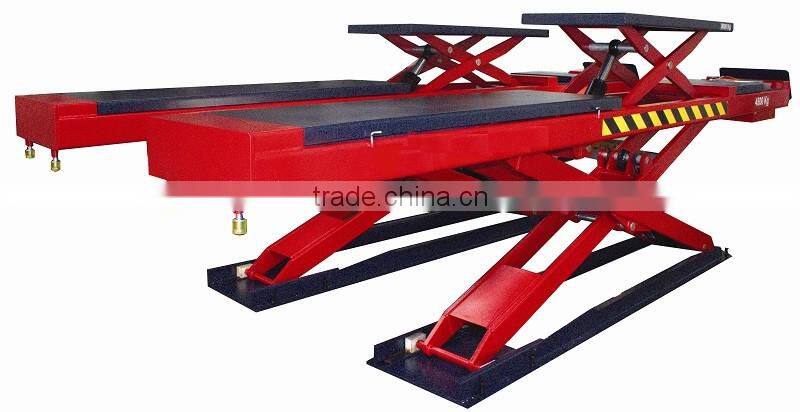

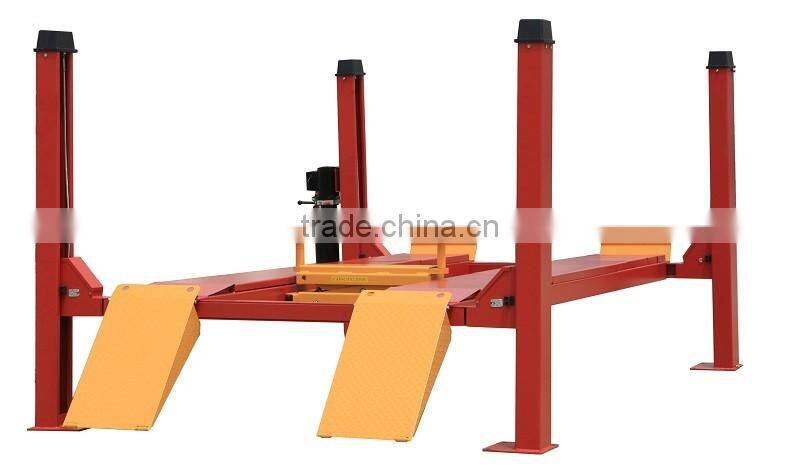

Matched car lift for wheel alignment(please click the photos below):
