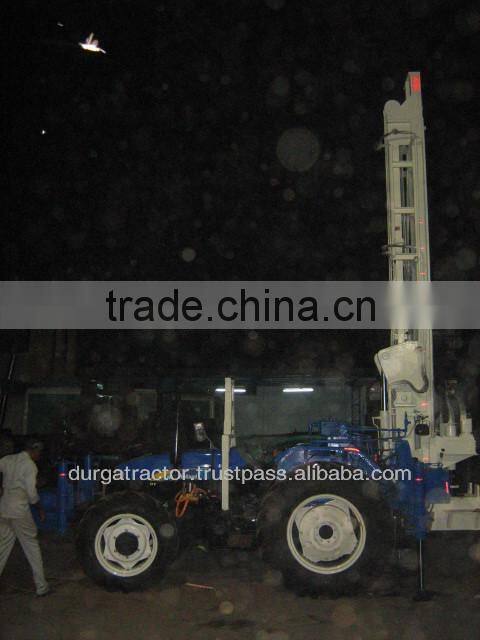

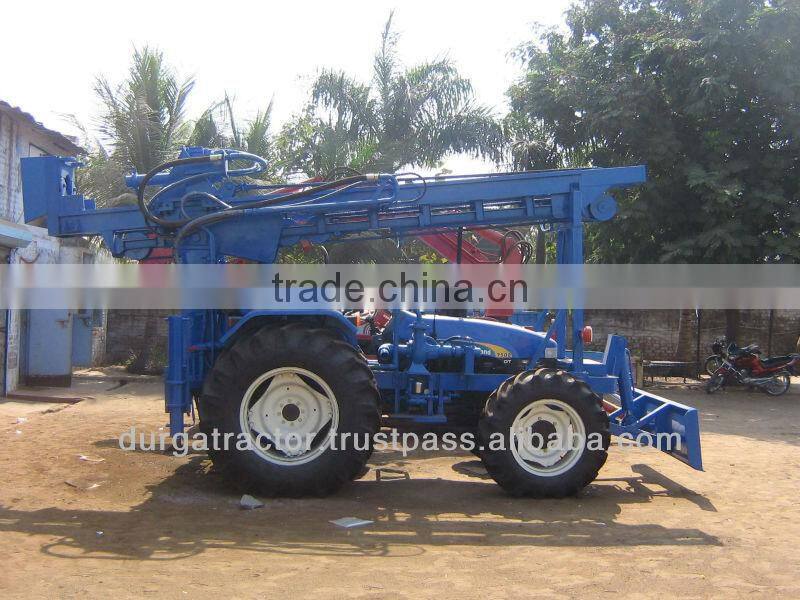

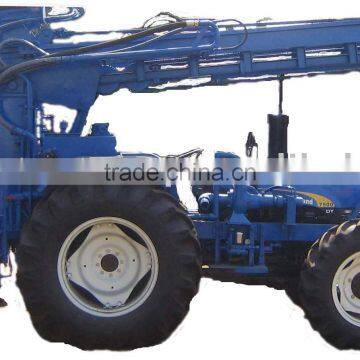

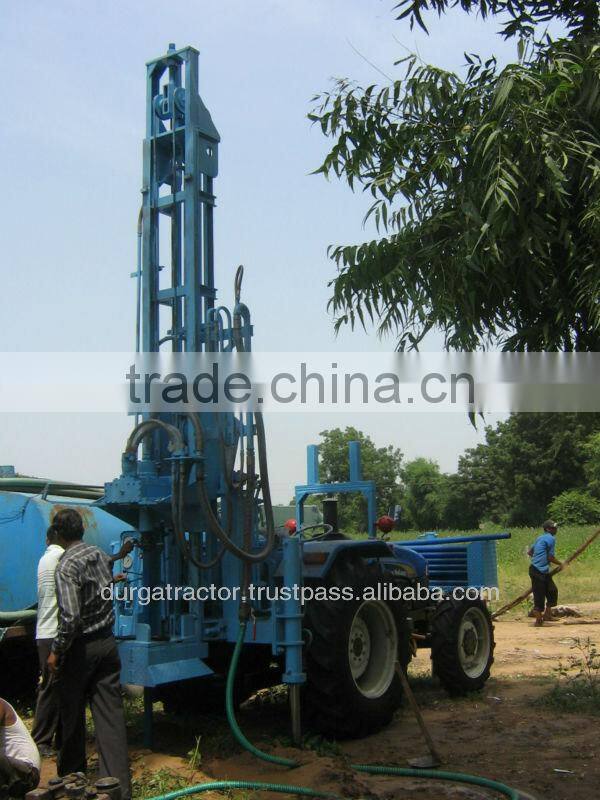

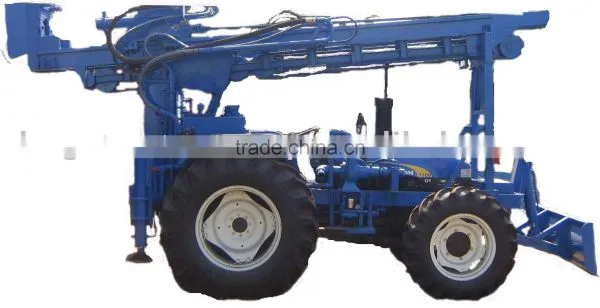

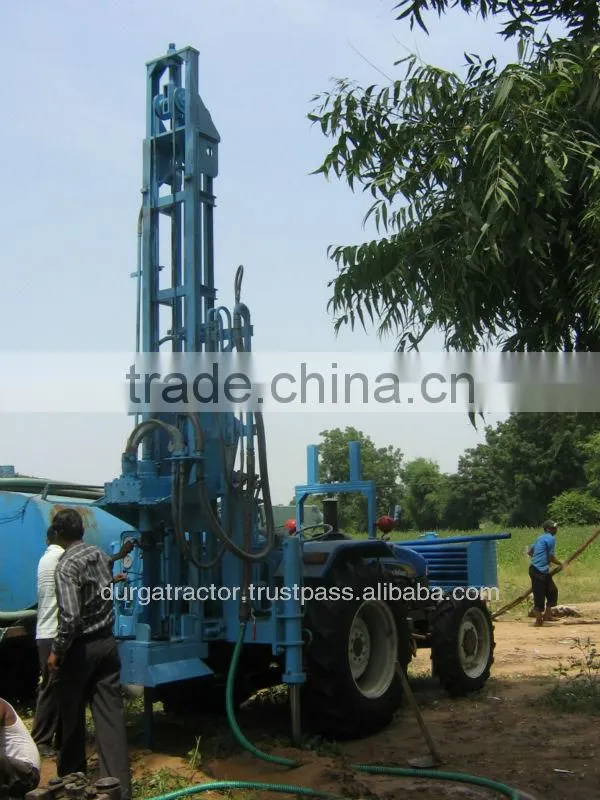

Help CenterTractor Mounted Drilling Rig for Water Well
Related Products
-: Technical specification of Durga:-
-:Tractor/Trolley Mounted Rig:-
Capable of drilling bore hole of - depth 100 mtr.
For Odex/Core / Dth/ rotory drilling Application
Hydraulic Pump : 38+8 Gpm Tandem ( Gear Pump )
Hydraulic cylinder : Feed cylinder 100 mm
Mast raising cylinder 100 mm
Leveling jack 3 Nos.
(leveling jack – 4 nos. extra cost optional )
Wire Rope : 16 mm steel core.
Hydraulic Motor : OMS 160 no. ( M+ S, Italy )
Rotary Head : special our design with three Bearings
Rod Spanner : 2-7/8” - 2 nos.
Adaptor : 2-7/8”
Rod Carrier : 2-7/8”
Centralizer Guide : 2-7/8” and 4” for hammer.
Control Valve : Rexroth ( SM-18 )
Water pump : 32 lpm
Mud Pump :2” x 2-1/2”Centrifugal type. (extra cost optional )
Mast : width 408 mm,
Height 4572 mm
Note :- Specification are subject to change with out any notice due to constant R&D.
-
-
