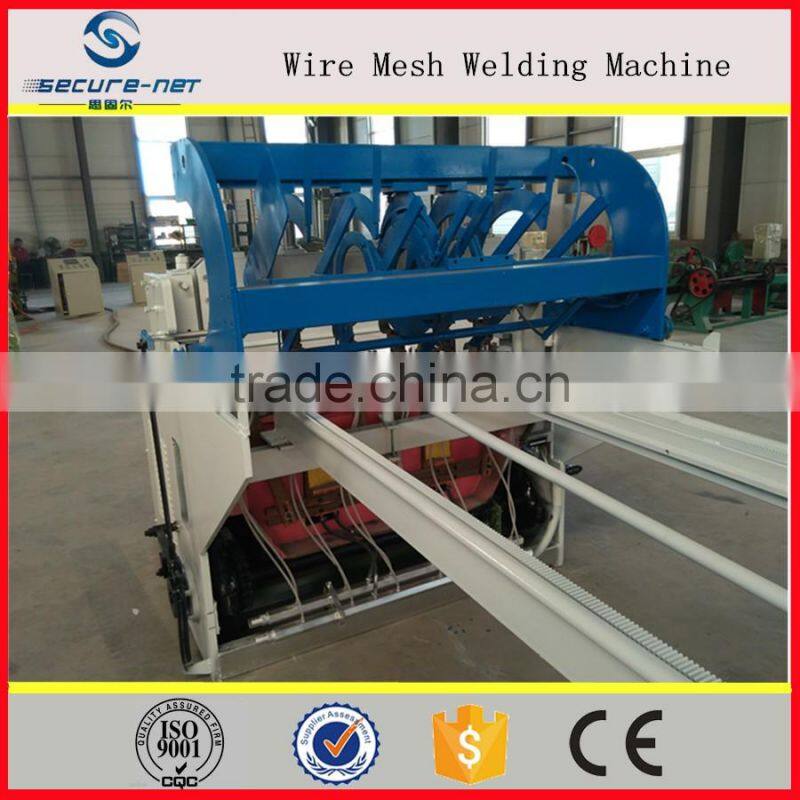

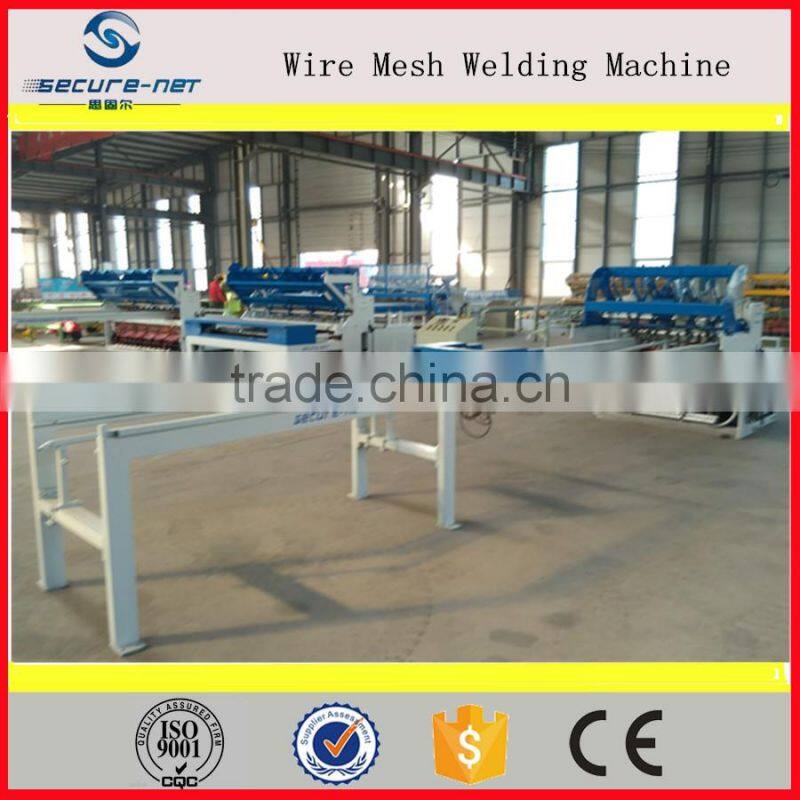

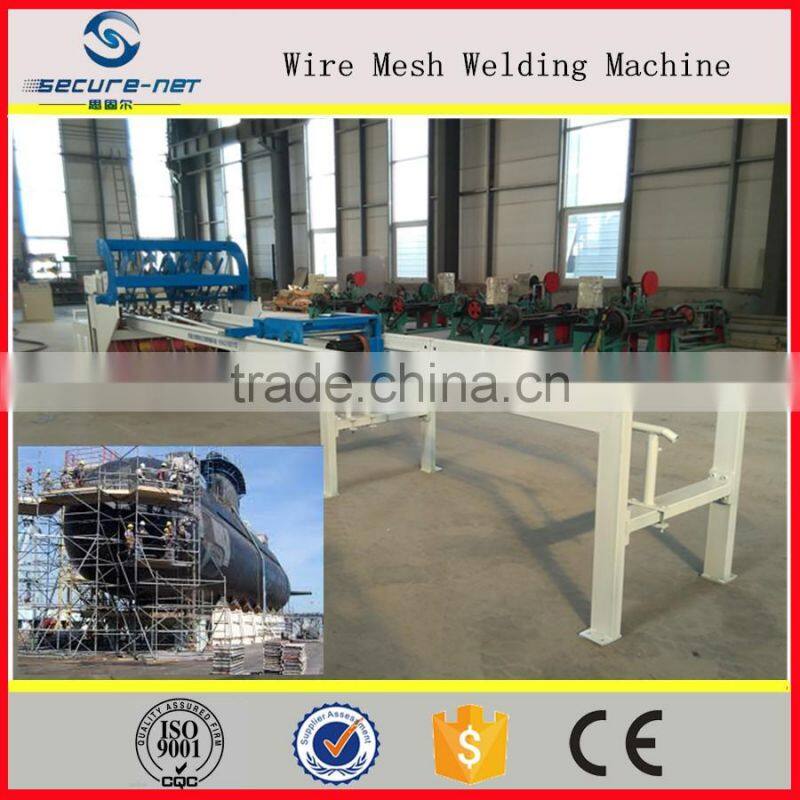

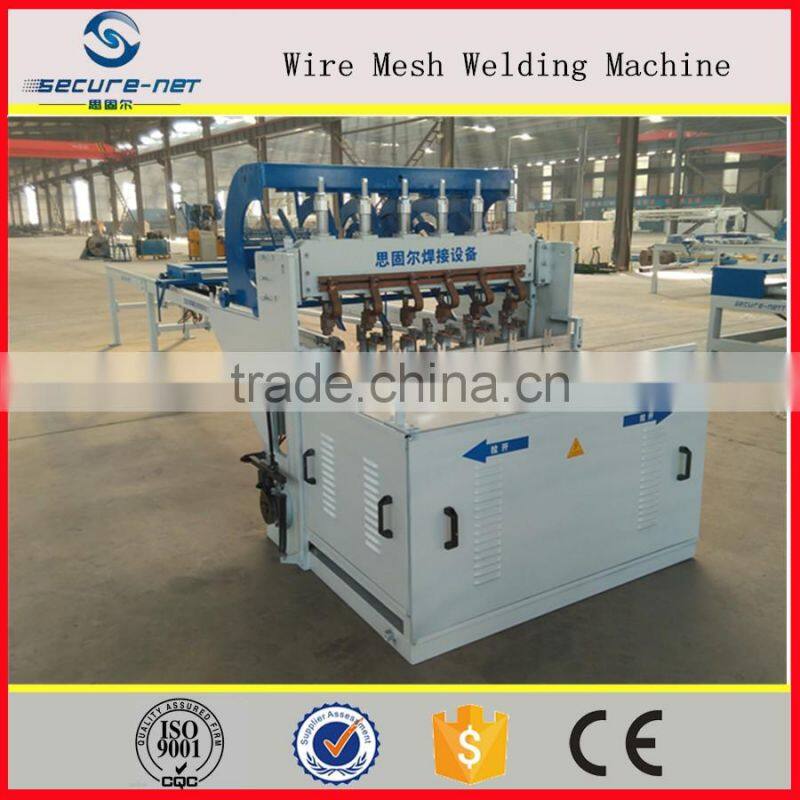

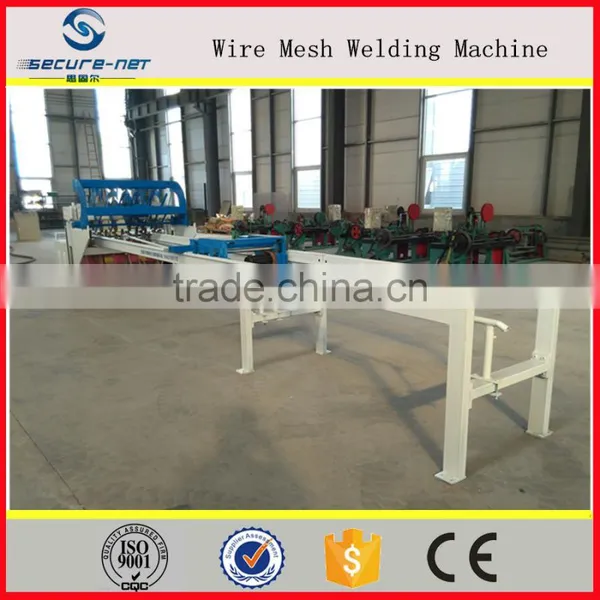

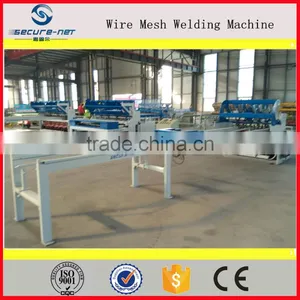

Secure-net Steel Wire Mesh Welding Machine

Secure-net Steel Wire Mesh Welding Machine photo-1
Secure-net Steel Wire Mesh Welding Machine photo-2
Secure-net Steel Wire Mesh Welding Machine photo-3
Secure-net Steel Wire Mesh Welding Machine photo-4
US$ 10,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
SECURE-NET
Model Number:
GBP
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name SECURE-NET
Model Number GBP
After-sales Service Provided Overseas service center available
Product Description:

       Secure-net Steel Wire Mesh Welding Machine

The main parameter:
Wire diameter:5-8mm
Welding aperture:100*100-300*300mm
Width of mesh:1000mm(adjustable)
Number of electrodes:6(adjustable)
Welding speed:40times/min
Rated voltage:380V 50HZ(customized)
Rated power:300KVA
Machine weight:2.0T
Overall dimension:6*1.8*1.7m(customized)

Secure-net Steel Wire Mesh Welding MachineSecure-net Steel Wire Mesh Welding MachineSecure-net Steel Wire Mesh Welding MachineSecure-net Steel Wire Mesh Welding Machine

Product Description:

1.This equipment adopts synchronous control technology,separate-phase welding and welding time is composed of digital programming of PLC system .There are two kinds of tablet PC input panel,One kind is touch panel ,another is Keyboard .The operation is more intelligent and rationalization.
2.The machine can press the panel tightly once , and weld by several times .On the same panel,this machine can weld 30 kinds of different size of meshs between weft and weft.That is the biggest advantages of this machine.
3.The machine adopts new type of high efficient welding transformer ,greatly expand the scope of welding diameters.(This wire mesh welding machine has high degree of automation, the same time reduce a lot of manual operation).
4.The mesh panel pulling part and the hopper is controled by the 16N stepper motor,and the steeper is working through the stepper motor drives.
5.Electrodes, the lower seat and copper platoon is copper material,and the electrode block is chromium zirconium copper material.
6.Wear silk part wear silk by bell mouth, make artificial device more simple, convenient, equipped with dovetail positioning device, effectively reduces the error of the diagonal mesh.
Auxiliary equipment

Straightening cutting machine

Secure-net Steel Wire Mesh Welding Machine

Wire feeding plate

Secure-net Steel Wire Mesh Welding Machine

Application:

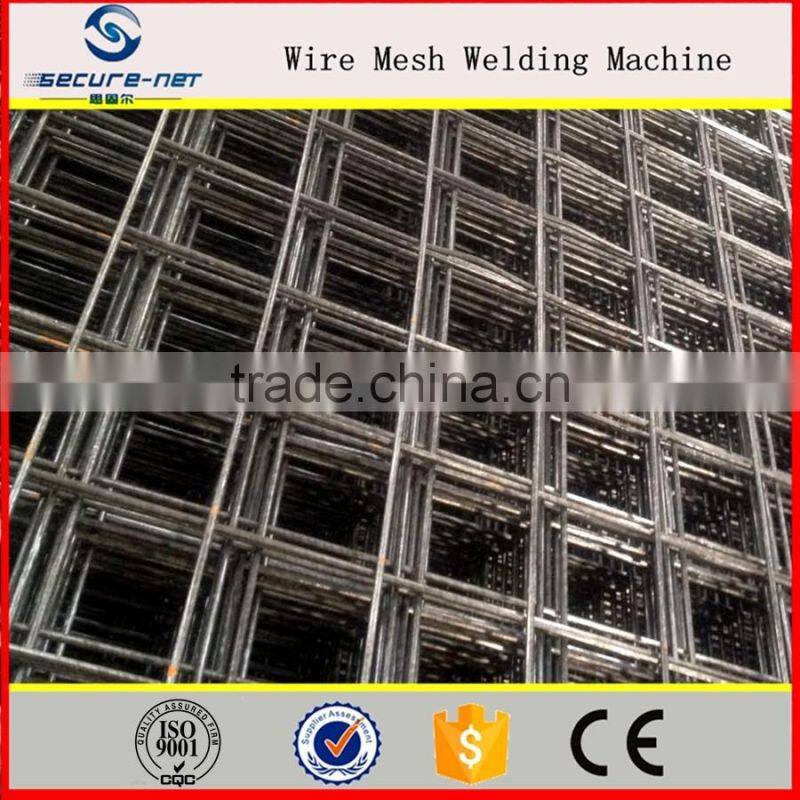

Wire mesh panel for fence and casing buling roof.Secure-net Steel Wire Mesh Welding Machine Secure-net Steel Wire Mesh Welding Machine

packaging &shipping

Host with plastic film packaging, numerical control cabinet packed in wooden cases.

Secure-net Steel Wire Mesh Welding MachineSecure-net Steel Wire Mesh Welding Machine

Our Services

Our Services
1 .Maintenance period:one year
2.If the buyers need, we can send our technical staff to the buyers’ place to
debug the machine and providing the training in 30 days after the machines
arrive at the destination port.
3.The commissioning fees: free
4.The training fees: USD100/day for each technical
5.The numbers of technical persons: one technical person per machines at most
6.The fees ,such as round-trip tickets, accomodation etc, are all in buyers’
account. During the maintenance period: the parts damaged non-artificially
will be provided free of charge. If you need the technicians, we will
assign the expertised staff to your company. And the fees,such as round-trip
tickets, accomodation etc, are all in your account.
